Rx signal capture using LMS7002

gundanfans · 5 June 2017 06:13

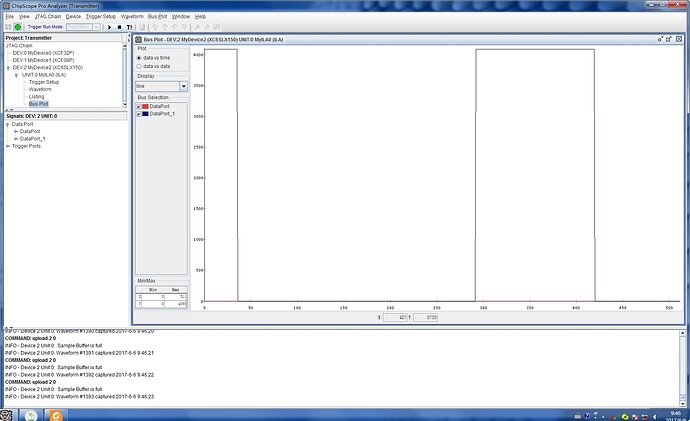

I try to get the signal in the Rx digital interface. That signal is detected in the Rx PGA output pad and it’s not weak. But there may be some settings wrong. The signal that captured from the Rx digital interface with a FPGA board as the follow figure. But it seems that there is some format problem.

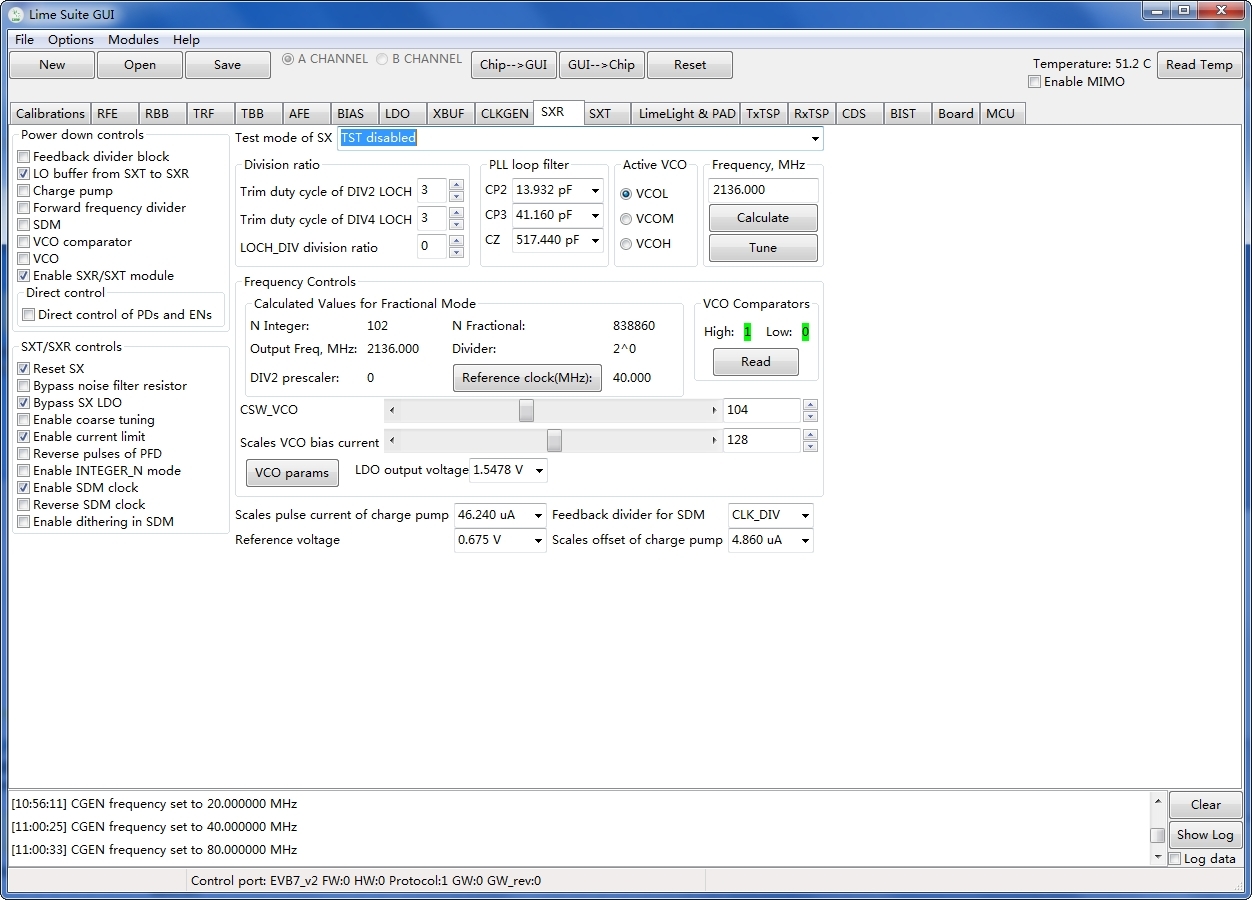

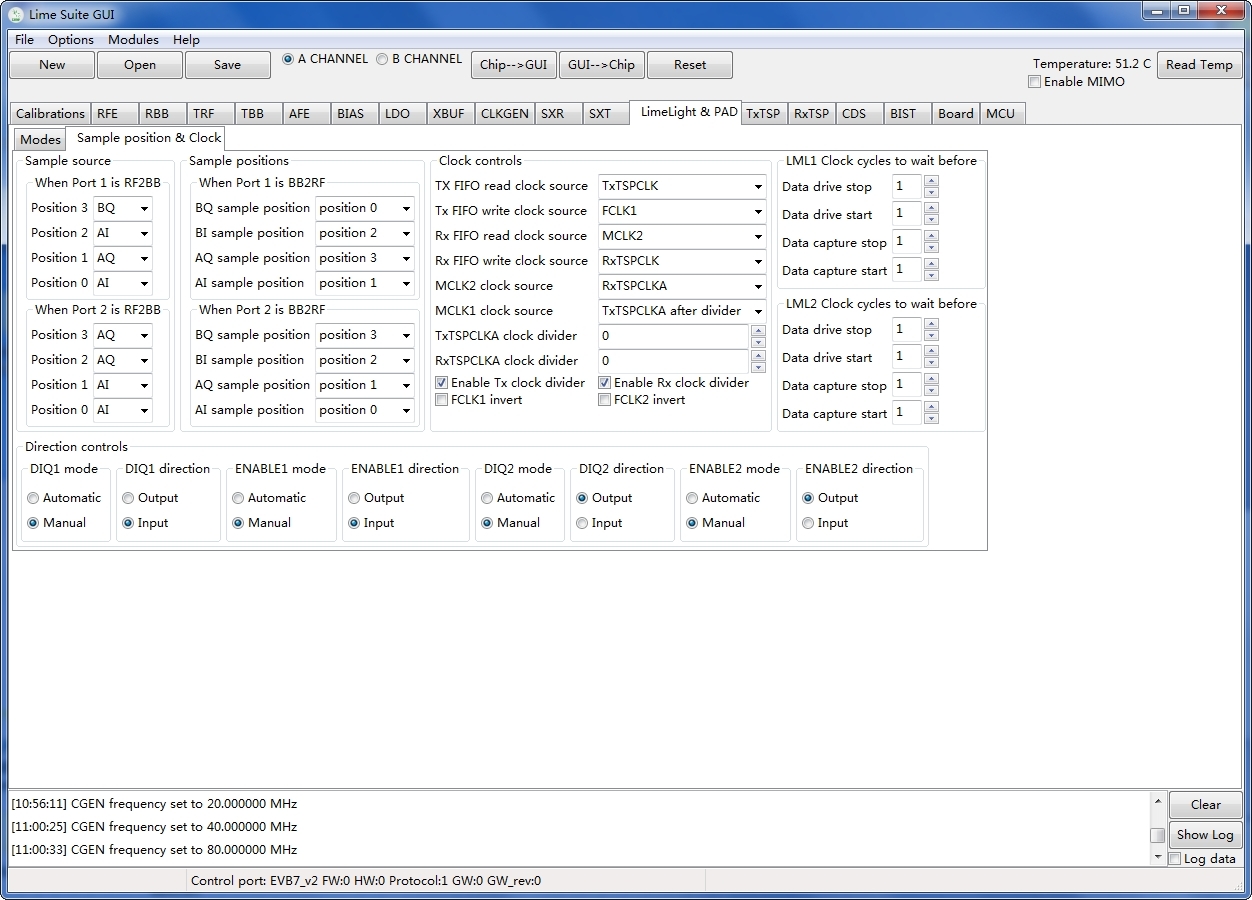

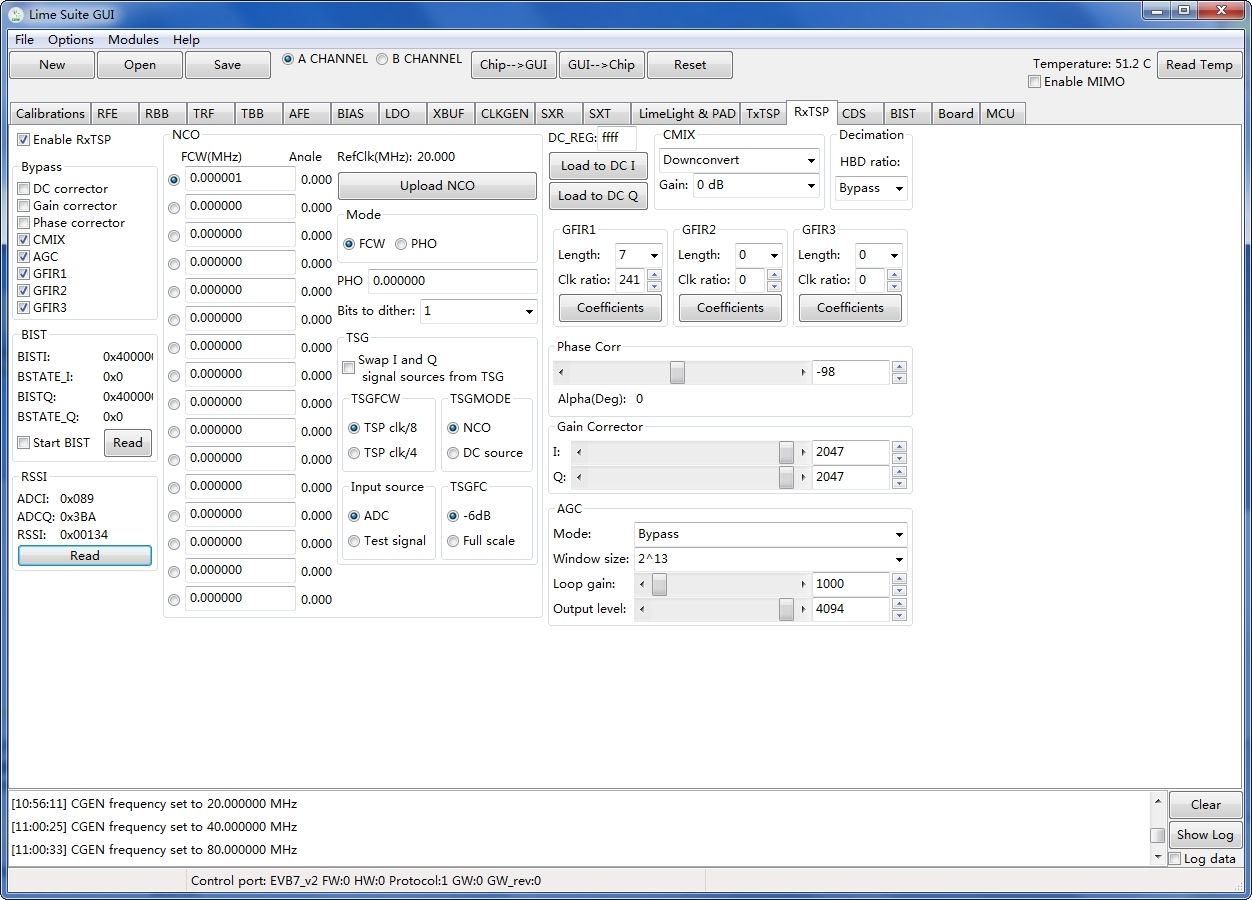

There are some figures about my settings about the Rx part.

@Zack @RicardasVadoklis @andrewback

Please help me. I have no clue if I am doing something wrong.
Thanks

Zack · 5 June 2017 09:28

Hello @gundanfans,
First of all, a few requests:

Do not create a few threads with the same issue, please. It makes me complicated to track and remember what was discussed before. This may lead for the same questions from me. Ping me in the same thread if you are not getting an answer.
Provide register settings in ini file instead of print screens, please.

As far as I remember, you are not using a Stream board for capturing IQ samples. Are you using some custom board?
I would propose to use a test signal generator on RxTSP to produce known samples. It will be easier to understand what is going on at the interface. Go to RxTSP tab and make these settings:

Check all the check boxes in “Bypass” group;
Select “Test signal” in “Input source” group;
Select “DC source” in “TSGMODE” group;
Enter 16 bit value in hex in “DC_REG” and press “Load to DC I” and “Load to DC Q” buttons. Note please that only 12 MSBs will appear at the interface lines.

Now you will get the same samples repeated at the interface, i.e. you will have some DC level. Check if the numbers sampled by your board are correct. Then you may test it by uploading different number in DC_REG to check if you are sampling I and Q samples correctly.

gundanfans · 5 June 2017 12:34

Thank you, Zack. I apologize for my recklessness. I have used your method to check my interface. The result is that if I select “DC source” in “TSGMODE” group, the value appearing at the interface lines is the value that I typed in. But if I select “NCO” in “TSGMODE” group and type in a specific value in the FCW, the signals go wrong again as the first figure.

That is the register settings in ini files.
