Hi,

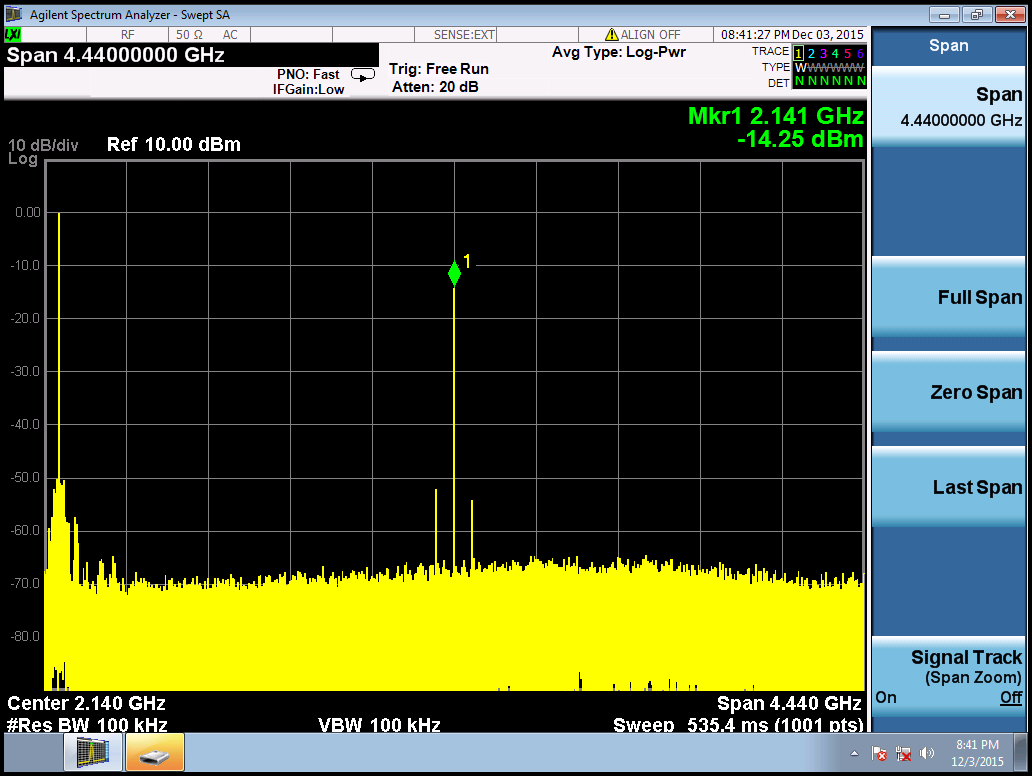

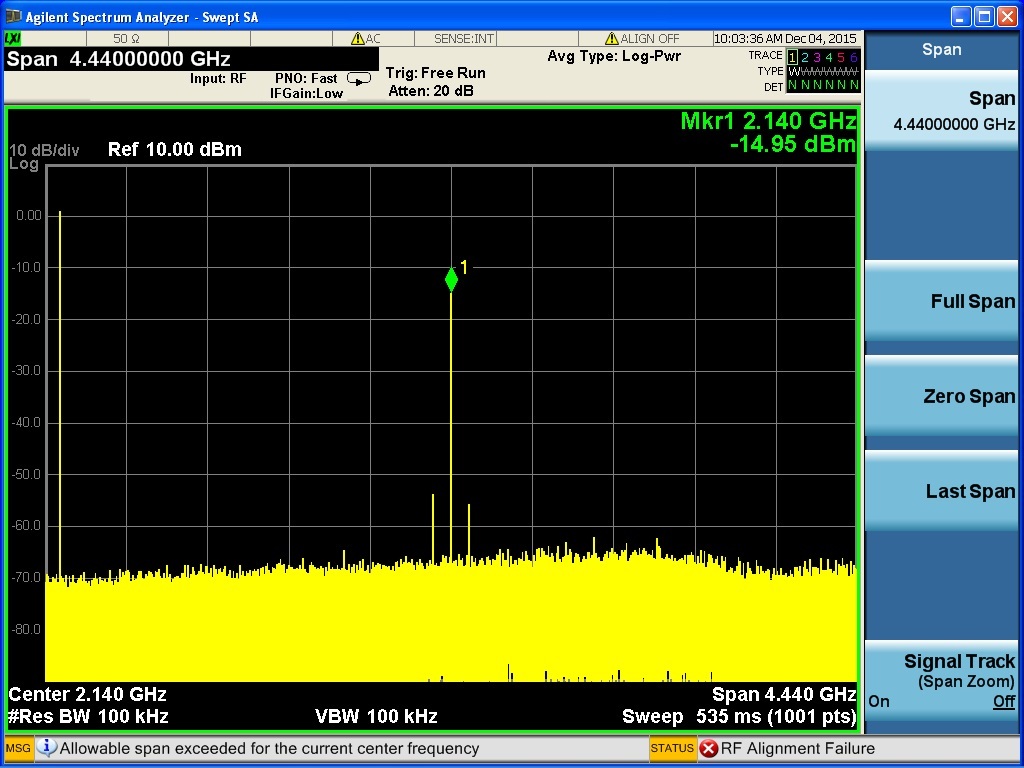

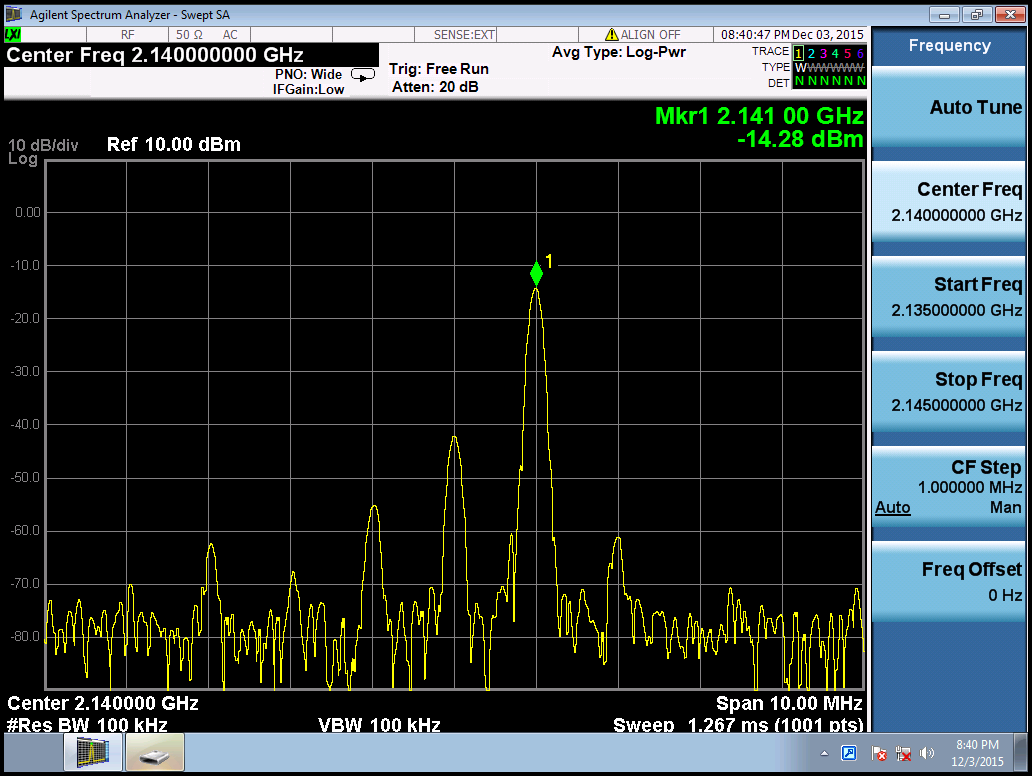

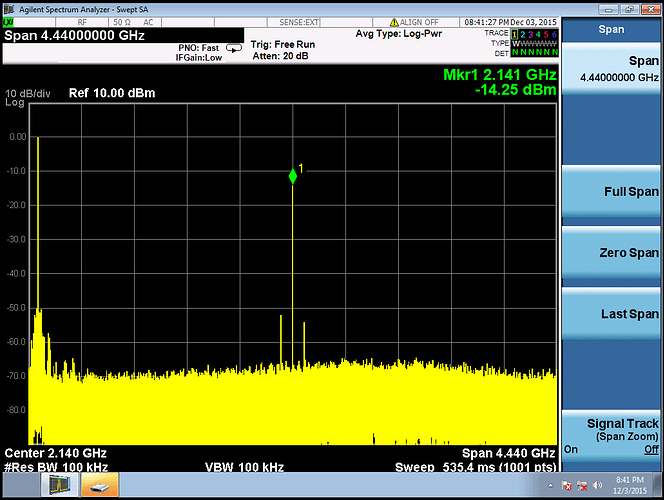

Here is the spectrum of the TX output,Could anyone help me to find out why the background noise is upraised, what caused this phenomenon and why my signal have so many unwanted tones? Thanks.
FYI. Post from open source forum:
I had quick check on your GUI settings of LMS7002M chip.
My first assumption is that on your Evaluation boar Crystal Oscillator reference clock is not 30.72MHz, but 52MHz.
So let’s first check if that is the case. In order to do so, please load GUI setup file attached ‘Test_Lime_52MHz.ini’.
Go to SXT/SXR page, select B/SXT option on the top right side of GUI.
Type in your wanted frequency and click ‘Calculate’ & ‘Tune’. If everything is right, you should get the message
in Log field of GUI at the bottom saying “CSE_VCO selected 110” (the number depends on frequency).
And of course you should see your signal on Spectrum Analyzer.
In order to generate your wanted CW 2MHz tone signal (at 2142MHz) from your LO (2140MHz) here are the step you need to take:
TxTSP page:
- NCO (FCW) type 2MHz in one of the fields, chose that field and click ‘Upload NCO’
- TSGMODE select ‘DC Source’
- Bypass uncheck ‘CMIX’
- Input source ‘Test Signal’,
CLKGEN page:
- CSW_VCO_GEN 213 (look for the value that gives exact wanted NCO generated signal, in your case 2MHz)
Please keep in mind that after starting GUI it is needed to run CLKGEN Tuning Calculation by clicking ‘Calculate’ and ‘Tune’ buttons on CLKGEN page.
In case you want to send digital signal from Baseband set on please, follow these steps:
TxTSP page:
- Input Source set ‘LML Output’
- Bypass check ‘CMIX’
- CLK_H (MHz) 61.44MHz gives 5MHz bandwidth of external W-DCMA
20 MHz gives 1.5MHz bandwidth of external W-DCMA
Hope that helps you to move on further work.
[FILE INFO]
type=LMS7002 configuration
version=1
[Frequencies]
CGEN frequency MHz=20
SXR frequency MHz=1960
SXT frequency MHz=2140
[LMS7002 registers ch.A]
0x0020=0xFFFD
0x0021=0x0E9F
0x0022=0x07DF
0x0023=0x5570
0x0024=0x5488
0x0025=0x0101
0x0026=0x0101
0x0027=0x05E4
0x0028=0x0101
0x0029=0x0101
0x002A=0x0086
0x002B=0x4038
0x002C=0x0000
0x002E=0x0000
0x002F=0x3840
0x0081=0x0000
0x0082=0x8001
0x0084=0x0400
0x0085=0x0001
0x0086=0x4901
0x0087=0x9D89
0x0088=0x0328
0x0089=0x0210
0x008A=0x0514
0x008B=0x217E
0x008C=0x267B
0x0092=0x0001
0x0093=0x0000
0x0094=0x0000
0x0095=0x0000
0x0096=0x0000
0x0097=0x0000
0x0098=0x0000
0x0099=0x6565
0x009A=0x658C
0x009B=0x6565
0x009C=0x658C
0x009D=0x6565
0x009E=0x658C
0x009F=0x658C
0x00A0=0x6565
0x00A1=0x6565
0x00A2=0x6565
0x00A3=0x6565
0x00A4=0x6565
0x00A5=0x6565
0x00A6=0x0001
0x00A7=0x6565
0x00A8=0x0000
0x00A9=0x8000
0x00AA=0x0000
0x00AB=0x0040
0x00AC=0x2000
0x00AD=0x03FF
0x00AE=0x0000
0x0100=0x7409
0x0101=0x7800
0x0102=0x3180
0x0103=0x0A12
0x0104=0x0088
0x0105=0x0007
0x0106=0x3182
0x0107=0x318C
0x0108=0x804C
0x0109=0x8C7C
0x010A=0x0080
0x010C=0x8865
0x010D=0x015A
0x010E=0x0696
0x010F=0x3042
0x0110=0x0BFF
0x0111=0x0083
0x0112=0xC0E6
0x0113=0x03C3
0x0114=0x008D
0x0115=0x0009
0x0116=0x8180
0x0117=0x280C
0x0118=0x018C
0x0119=0x18CB
0x011A=0x2E02
0x011C=0xA941
0x011D=0xAAAA
0x011E=0x07B9
0x011F=0x3600
0x0120=0xB9FF
0x0121=0x3128
0x0122=0x033F
0x0123=0x367B
0x0124=0x0000
0x0200=0x010D
0x0201=0x07FF
0x0202=0x075A
0x0203=0x0FD1
0x0204=0x0000
0x0205=0x0000
0x0206=0x0000
0x0207=0x0000
0x0208=0x0070
0x0209=0x0000
0x020A=0x0080
0x020B=0x4000
0x020C=0x7FFF
0x0240=0x0020
0x0280=0x0000
0x0281=0x0000
0x0282=0x0000
0x0283=0x0000
0x0284=0x0000
0x0285=0x0000
0x0286=0x0000
0x0287=0x0000
0x0288=0x0000
0x0289=0x0000
0x028A=0x0000
0x028B=0x0000
0x028C=0x0000
0x028D=0x0000
0x028E=0x0000
0x028F=0x0000
0x0290=0x0000
0x0291=0x0000
0x0292=0x0000
0x0293=0x0000
0x0294=0x0000
0x0295=0x0000
0x0296=0x0000
0x0297=0x0000
0x0298=0x0000
0x0299=0x0000
0x029A=0x0000
0x029B=0x0000
0x029C=0x0000
0x029D=0x0000
0x029E=0x0000
0x029F=0x0000
0x02A0=0x0000
0x02A1=0x0000
0x02A2=0x0000
0x02A3=0x0000
0x02A4=0x0000
0x02A5=0x0000
0x02A6=0x0000
0x02A7=0x0000
0x02C0=0x0000
0x02C1=0x0000
0x02C2=0x0000
0x02C3=0x0000
0x02C4=0x0000
0x02C5=0x0000
0x02C6=0x0000
0x02C7=0x0000
0x02C8=0x0000
0x02C9=0x0000
0x02CA=0x0000
0x02CB=0x0000
0x02CC=0x0000
0x02CD=0x0000
0x02CE=0x0000
0x02CF=0x0000
0x02D0=0x0000
0x02D1=0x0000
0x02D2=0x0000
0x02D3=0x0000
0x02D4=0x0000
0x02D5=0x0000
0x02D6=0x0000
0x02D7=0x0000
0x02D8=0x0000
0x02D9=0x0000
0x02DA=0x0000
0x02DB=0x0000
0x02DC=0x0000
0x02DD=0x0000
0x02DE=0x0000
0x02DF=0x0000
0x02E0=0x0000
0x02E1=0x0000
0x02E2=0x0000
0x02E3=0x0000
0x02E4=0x0000
0x02E5=0x0000
0x02E6=0x0000
0x02E7=0x0000
0x0300=0x0000
0x0301=0x0000
0x0302=0x0000
0x0303=0x0000
0x0304=0x0000
0x0305=0x0000
0x0306=0x0000
0x0307=0x0000
0x0308=0x0000
0x0309=0x0000
0x030A=0x0000
0x030B=0x0000
0x030C=0x0000
0x030D=0x0000
0x030E=0x0000
0x030F=0x0000
0x0310=0x0000
0x0311=0x0000
0x0312=0x0000
0x0313=0x0000
0x0314=0x0000
0x0315=0x0000
0x0316=0x0000
0x0317=0x0000
0x0318=0x0000
0x0319=0x0000
0x031A=0x0000
0x031B=0x0000
0x031C=0x0000
0x031D=0x0000
0x031E=0x0000
0x031F=0x0000
0x0320=0x0000
0x0321=0x0000
0x0322=0x0000
0x0323=0x0000
0x0324=0x0000
0x0325=0x0000
0x0326=0x0000
0x0327=0x0000
0x0340=0x0000
0x0341=0x0000
0x0342=0x0000
0x0343=0x0000
0x0344=0x0000
0x0345=0x0000
0x0346=0x0000
0x0347=0x0000
0x0348=0x0000
0x0349=0x0000
0x034A=0x0000
0x034B=0x0000
0x034C=0x0000
0x034D=0x0000
0x034E=0x0000
0x034F=0x0000
0x0350=0x0000
0x0351=0x0000
0x0352=0x0000
0x0353=0x0000
0x0354=0x0000
0x0355=0x0000
0x0356=0x0000
0x0357=0x0000
0x0358=0x0000
0x0359=0x0000
0x035A=0x0000
0x035B=0x0000
0x035C=0x0000
0x035D=0x0000
0x035E=0x0000
0x035F=0x0000
0x0360=0x0000
0x0361=0x0000
0x0362=0x0000
0x0363=0x0000
0x0364=0x0000
0x0365=0x0000
0x0366=0x0000
0x0367=0x0000
0x0380=0x0000
0x0381=0x0000
0x0382=0x0000
0x0383=0x0000
0x0384=0x0000
0x0385=0x0000
0x0386=0x0000
0x0387=0x0000
0x0388=0x0000
0x0389=0x0000
0x038A=0x0000
0x038B=0x0000
0x038C=0x0000
0x038D=0x0000
0x038E=0x0000
0x038F=0x0000
0x0390=0x0000
0x0391=0x0000
0x0392=0x0000
0x0393=0x0000
0x0394=0x0000
0x0395=0x0000
0x0396=0x0000
0x0397=0x0000
0x0398=0x0000
0x0399=0x0000
0x039A=0x0000
0x039B=0x0000
0x039C=0x0000
0x039D=0x0000
0x039E=0x0000
0x039F=0x0000
0x03A0=0x0000
0x03A1=0x0000
0x03A2=0x0000
0x03A3=0x0000
0x03A4=0x0000
0x03A5=0x0000
0x03A6=0x0000
0x03A7=0x0000
0x0400=0x0101
0x0401=0x07FF
0x0402=0x07CA
0x0403=0x0FFD
0x0404=0x0000
0x0405=0x0000
0x0406=0x0000
0x0407=0x0000
0x0408=0x0000
0x0409=0x0000
0x040A=0x0003
0x040B=0x0000
0x040C=0x0078
0x040E=0x0001
0x040F=0x00B4
0x0440=0x0020
0x0480=0x0000
0x0481=0x0000
0x0482=0x0000
0x0483=0x0000
0x0484=0x0000
0x0485=0x0000
0x0486=0x0000
0x0487=0x0000
0x0488=0x0000
0x0489=0x0000
0x048A=0x0000
0x048B=0x0000
0x048C=0x0000
0x048D=0x0000
0x048E=0x0000
0x048F=0x0000
0x0490=0x0000
0x0491=0x0000
0x0492=0x0000
0x0493=0x0000
0x0494=0x0000
0x0495=0x0000
0x0496=0x0000
0x0497=0x0000
0x0498=0x0000
0x0499=0x0000
0x049A=0x0000
0x049B=0x0000
0x049C=0x0000
0x049D=0x0000
0x049E=0x0000
0x049F=0x0000
0x04A0=0x0000
0x04A1=0x0000
0x04A2=0x0000
0x04A3=0x0000
0x04A4=0x0000
0x04A5=0x0000
0x04A6=0x0000
0x04A7=0x0000
0x04C0=0x0000
0x04C1=0x0000
0x04C2=0x0000
0x04C3=0x0000
0x04C4=0x0000
0x04C5=0x0000
0x04C6=0x0000
0x04C7=0x0000
0x04C8=0x0000
0x04C9=0x0000
0x04CA=0x0000
0x04CB=0x0000
0x04CC=0x0000
0x04CD=0x0000
0x04CE=0x0000
0x04CF=0x0000
0x04D0=0x0000
0x04D1=0x0000
0x04D2=0x0000
0x04D3=0x0000
0x04D4=0x0000
0x04D5=0x0000
0x04D6=0x0000
0x04D7=0x0000
0x04D8=0x0000
0x04D9=0x0000
0x04DA=0x0000
0x04DB=0x0000
0x04DC=0x0000
0x04DD=0x0000
0x04DE=0x0000
0x04DF=0x0000
0x04E0=0x0000
0x04E1=0x0000
0x04E2=0x0000
0x04E3=0x0000
0x04E4=0x0000
0x04E5=0x0000
0x04E6=0x0000
0x04E7=0x0000
0x0500=0x0000
0x0501=0x0000
0x0502=0x0000
0x0503=0x0000
0x0504=0x0000
0x0505=0x0000
0x0506=0x0000
0x0507=0x0000
0x0508=0x0000
0x0509=0x0000
0x050A=0x0000
0x050B=0x0000
0x050C=0x0000
0x050D=0x0000
0x050E=0x0000
0x050F=0x0000
0x0510=0x0000
0x0511=0x0000
0x0512=0x0000
0x0513=0x0000
0x0514=0x0000
0x0515=0x0000
0x0516=0x0000
0x0517=0x0000
0x0518=0x0000
0x0519=0x0000
0x051A=0x0000
0x051B=0x0000
0x051C=0x0000
0x051D=0x0000
0x051E=0x0000
0x051F=0x0000
0x0520=0x0000
0x0521=0x0000
0x0522=0x0000
0x0523=0x0000
0x0524=0x0000
0x0525=0x0000
0x0526=0x0000
0x0527=0x0000
0x0540=0x0000
0x0541=0x0000
0x0542=0x0000
0x0543=0x0000
0x0544=0x0000
0x0545=0x0000
0x0546=0x0000
0x0547=0x0000
0x0548=0x0000
0x0549=0x0000
0x054A=0x0000
0x054B=0x0000
0x054C=0x0000
0x054D=0x0000
0x054E=0x0000
0x054F=0x0000
0x0550=0x0000
0x0551=0x0000
0x0552=0x0000
0x0553=0x0000
0x0554=0x0000
0x0555=0x0000
0x0556=0x0000
0x0557=0x0000
0x0558=0x0000
0x0559=0x0000
0x055A=0x0000
0x055B=0x0000
0x055C=0x0000
0x055D=0x0000
0x055E=0x0000
0x055F=0x0000
0x0560=0x0000
0x0561=0x0000
0x0562=0x0000
0x0563=0x0000
0x0564=0x0000
0x0565=0x0000
0x0566=0x0000
0x0567=0x0000
0x0580=0x0000
0x0581=0x0000
0x0582=0x0000
0x0583=0x0000
0x0584=0x0000
0x0585=0x0000
0x0586=0x0000
0x0587=0x0000
0x0588=0x0000
0x0589=0x0000
0x058A=0x0000
0x058B=0x0000
0x058C=0x0000
0x058D=0x0000
0x058E=0x0000
0x058F=0x0000
0x0590=0x0000
0x0591=0x0000
0x0592=0x0000
0x0593=0x0000
0x0594=0x0000
0x0595=0x0000
0x0596=0x0000
0x0597=0x0000
0x0598=0x0000
0x0599=0x0000
0x059A=0x0000
0x059B=0x0000
0x059C=0x0000
0x059D=0x0000
0x059E=0x0000
0x059F=0x0000
0x05A0=0x0000
0x05A1=0x0000
0x05A2=0x0000
0x05A3=0x0000
0x05A4=0x0000
0x05A5=0x0000
0x05A6=0x0000
0x05A7=0x0000
[LMS7002 registers ch.B]
0x0100=0x7409
0x0101=0x7800
0x0102=0x3180
0x0103=0x0A12
0x0104=0x0088
0x0105=0x0007
0x0106=0x3182
0x0107=0x318C
0x0108=0x844C
0x0109=0x8C7C
0x010A=0x0080
0x010C=0x88FD
0x010D=0x009E
0x010E=0x2040
0x010F=0x3042
0x0110=0x0BF4
0x0111=0x0083
0x0112=0xC0E6
0x0113=0x03C3
0x0114=0x008D
0x0115=0x0009
0x0116=0x8180
0x0117=0x280C
0x0118=0x018C
0x0119=0x18CB
0x011A=0x2E02
0x011C=0xA941
0x011D=0x2AAA
0x011E=0x0875
0x011F=0x3600
0x0120=0xB9BB
0x0121=0x3368
0x0122=0x033F
0x0123=0x300F
0x0124=0x0000
0x0200=0x0109
0x0201=0x07FF
0x0202=0x07FF
0x0203=0x0000
0x0204=0x0000
0x0205=0x0000
0x0206=0x0000
0x0207=0x0000
0x0208=0x0070
0x0209=0x0000
0x020A=0x0080
0x020B=0x4000
0x020C=0x7FFF
0x0240=0x0020
0x0280=0x0000
0x0281=0x0000
0x0282=0x0000
0x0283=0x0000
0x0284=0x0000
0x0285=0x0000
0x0286=0x0000
0x0287=0x0000
0x0288=0x0000
0x0289=0x0000
0x028A=0x0000
0x028B=0x0000
0x028C=0x0000
0x028D=0x0000
0x028E=0x0000
0x028F=0x0000
0x0290=0x0000
0x0291=0x0000
0x0292=0x0000
0x0293=0x0000
0x0294=0x0000
0x0295=0x0000
0x0296=0x0000
0x0297=0x0000
0x0298=0x0000
0x0299=0x0000
0x029A=0x0000
0x029B=0x0000
0x029C=0x0000
0x029D=0x0000
0x029E=0x0000
0x029F=0x0000
0x02A0=0x0000
0x02A1=0x0000
0x02A2=0x0000
0x02A3=0x0000
0x02A4=0x0000
0x02A5=0x0000
0x02A6=0x0000
0x02A7=0x0000
0x02C0=0x0000
0x02C1=0x0000
0x02C2=0x0000
0x02C3=0x0000
0x02C4=0x0000
0x02C5=0x0000
0x02C6=0x0000
0x02C7=0x0000
0x02C8=0x0000
0x02C9=0x0000
0x02CA=0x0000
0x02CB=0x0000
0x02CC=0x0000
0x02CD=0x0000
0x02CE=0x0000
0x02CF=0x0000
0x02D0=0x0000
0x02D1=0x0000
0x02D2=0x0000
0x02D3=0x0000
0x02D4=0x0000
0x02D5=0x0000
0x02D6=0x0000
0x02D7=0x0000
0x02D8=0x0000
0x02D9=0x0000
0x02DA=0x0000
0x02DB=0x0000
0x02DC=0x0000
0x02DD=0x0000
0x02DE=0x0000
0x02DF=0x0000
0x02E0=0x0000
0x02E1=0x0000
0x02E2=0x0000
0x02E3=0x0000
0x02E4=0x0000
0x02E5=0x0000
0x02E6=0x0000
0x02E7=0x0000
0x0300=0x0000
0x0301=0x0000
0x0302=0x0000
0x0303=0x0000
0x0304=0x0000
0x0305=0x0000
0x0306=0x0000
0x0307=0x0000
0x0308=0x0000
0x0309=0x0000
0x030A=0x0000
0x030B=0x0000
0x030C=0x0000
0x030D=0x0000
0x030E=0x0000
0x030F=0x0000
0x0310=0x0000
0x0311=0x0000
0x0312=0x0000
0x0313=0x0000
0x0314=0x0000
0x0315=0x0000
0x0316=0x0000
0x0317=0x0000
0x0318=0x0000
0x0319=0x0000
0x031A=0x0000
0x031B=0x0000
0x031C=0x0000
0x031D=0x0000
0x031E=0x0000
0x031F=0x0000
0x0320=0x0000
0x0321=0x0000
0x0322=0x0000
0x0323=0x0000
0x0324=0x0000
0x0325=0x0000
0x0326=0x0000
0x0327=0x0000
0x0340=0x0000
0x0341=0x0000
0x0342=0x0000
0x0343=0x0000
0x0344=0x0000
0x0345=0x0000
0x0346=0x0000
0x0347=0x0000
0x0348=0x0000
0x0349=0x0000
0x034A=0x0000
0x034B=0x0000
0x034C=0x0000
0x034D=0x0000
0x034E=0x0000
0x034F=0x0000
0x0350=0x0000
0x0351=0x0000
0x0352=0x0000
0x0353=0x0000
0x0354=0x0000
0x0355=0x0000
0x0356=0x0000
0x0357=0x0000
0x0358=0x0000
0x0359=0x0000
0x035A=0x0000
0x035B=0x0000
0x035C=0x0000
0x035D=0x0000
0x035E=0x0000
0x035F=0x0000
0x0360=0x0000
0x0361=0x0000
0x0362=0x0000
0x0363=0x0000
0x0364=0x0000
0x0365=0x0000
0x0366=0x0000
0x0367=0x0000
0x0380=0x0000
0x0381=0x0000
0x0382=0x0000
0x0383=0x0000
0x0384=0x0000
0x0385=0x0000
0x0386=0x0000
0x0387=0x0000
0x0388=0x0000
0x0389=0x0000
0x038A=0x0000
0x038B=0x0000
0x038C=0x0000
0x038D=0x0000
0x038E=0x0000
0x038F=0x0000
0x0390=0x0000
0x0391=0x0000
0x0392=0x0000
0x0393=0x0000
0x0394=0x0000
0x0395=0x0000
0x0396=0x0000
0x0397=0x0000
0x0398=0x0000
0x0399=0x0000
0x039A=0x0000
0x039B=0x0000
0x039C=0x0000
0x039D=0x0000
0x039E=0x0000
0x039F=0x0000
0x03A0=0x0000
0x03A1=0x0000
0x03A2=0x0000
0x03A3=0x0000
0x03A4=0x0000
0x03A5=0x0000
0x03A6=0x0000
0x03A7=0x0000
0x0400=0x0081
0x0401=0x07FF
0x0402=0x07FF
0x0403=0x0000
0x0404=0x0000
0x0405=0x0000
0x0406=0x0000
0x0407=0x0000
0x0408=0x0000
0x0409=0x0000
0x040A=0x0000
0x040B=0x7FFF
0x040C=0x0000
0x040E=0x0000
0x040F=0x0000
0x0440=0x0020
0x0480=0x0000
0x0481=0x0000
0x0482=0x0000
0x0483=0x0000
0x0484=0x0000
0x0485=0x0000
0x0486=0x0000
0x0487=0x0000
0x0488=0x0000
0x0489=0x0000
0x048A=0x0000
0x048B=0x0000
0x048C=0x0000
0x048D=0x0000
0x048E=0x0000
0x048F=0x0000
0x0490=0x0000
0x0491=0x0000
0x0492=0x0000
0x0493=0x0000
0x0494=0x0000
0x0495=0x0000
0x0496=0x0000
0x0497=0x0000
0x0498=0x0000
0x0499=0x0000
0x049A=0x0000
0x049B=0x0000
0x049C=0x0000
0x049D=0x0000
0x049E=0x0000
0x049F=0x0000
0x04A0=0x0000
0x04A1=0x0000
0x04A2=0x0000
0x04A3=0x0000
0x04A4=0x0000
0x04A5=0x0000
0x04A6=0x0000
0x04A7=0x0000
0x04C0=0x0000
0x04C1=0x0000
0x04C2=0x0000
0x04C3=0x0000
0x04C4=0x0000
0x04C5=0x0000
0x04C6=0x0000
0x04C7=0x0000
0x04C8=0x0000
0x04C9=0x0000
0x04CA=0x0000
0x04CB=0x0000
0x04CC=0x0000
0x04CD=0x0000
0x04CE=0x0000
0x04CF=0x0000
0x04D0=0x0000
0x04D1=0x0000
0x04D2=0x0000
0x04D3=0x0000
0x04D4=0x0000
0x04D5=0x0000
0x04D6=0x0000
0x04D7=0x0000
0x04D8=0x0000
0x04D9=0x0000
0x04DA=0x0000
0x04DB=0x0000
0x04DC=0x0000
0x04DD=0x0000
0x04DE=0x0000
0x04DF=0x0000
0x04E0=0x0000
0x04E1=0x0000
0x04E2=0x0000
0x04E3=0x0000
0x04E4=0x0000
0x04E5=0x0000
0x04E6=0x0000
0x04E7=0x0000
0x0500=0x0000
0x0501=0x0000
0x0502=0x0000
0x0503=0x0000
0x0504=0x0000
0x0505=0x0000
0x0506=0x0000
0x0507=0x0000
0x0508=0x0000
0x0509=0x0000
0x050A=0x0000
0x050B=0x0000
0x050C=0x0000
0x050D=0x0000
0x050E=0x0000
0x050F=0x0000
0x0510=0x0000
0x0511=0x0000
0x0512=0x0000
0x0513=0x0000
0x0514=0x0000
0x0515=0x0000
0x0516=0x0000
0x0517=0x0000
0x0518=0x0000
0x0519=0x0000
0x051A=0x0000
0x051B=0x0000
0x051C=0x0000
0x051D=0x0000
0x051E=0x0000
0x051F=0x0000
0x0520=0x0000
0x0521=0x0000
0x0522=0x0000
0x0523=0x0000
0x0524=0x0000
0x0525=0x0000
0x0526=0x0000
0x0527=0x0000
0x0540=0x0000
0x0541=0x0000
0x0542=0x0000
0x0543=0x0000
0x0544=0x0000
0x0545=0x0000
0x0546=0x0000
0x0547=0x0000
0x0548=0x0000
0x0549=0x0000
0x054A=0x0000
0x054B=0x0000
0x054C=0x0000
0x054D=0x0000
0x054E=0x0000
0x054F=0x0000
0x0550=0x0000
0x0551=0x0000
0x0552=0x0000
0x0553=0x0000
0x0554=0x0000
0x0555=0x0000
0x0556=0x0000
0x0557=0x0000
0x0558=0x0000
0x0559=0x0000
0x055A=0x0000
0x055B=0x0000
0x055C=0x0000
0x055D=0x0000
0x055E=0x0000
0x055F=0x0000
0x0560=0x0000
0x0561=0x0000
0x0562=0x0000
0x0563=0x0000
0x0564=0x0000
0x0565=0x0000
0x0566=0x0000
0x0567=0x0000
0x0580=0x0000
0x0581=0x0000
0x0582=0x0000
0x0583=0x0000
0x0584=0x0000
0x0585=0x0000
0x0586=0x0000
0x0587=0x0000
0x0588=0x0000
0x0589=0x0000
0x058A=0x0000
0x058B=0x0000
0x058C=0x0000
0x058D=0x0000
0x058E=0x0000
0x058F=0x0000
0x0590=0x0000
0x0591=0x0000
0x0592=0x0000
0x0593=0x0000
0x0594=0x0000
0x0595=0x0000
0x0596=0x0000
0x0597=0x0000
0x0598=0x0000
0x0599=0x0000
0x059A=0x0000
0x059B=0x0000
0x059C=0x0000
0x059D=0x0000
0x059E=0x0000
0x059F=0x0000
0x05A0=0x0000
0x05A1=0x0000
0x05A2=0x0000
0x05A3=0x0000
0x05A4=0x0000
0x05A5=0x0000
0x05A6=0x0000
0x05A7=0x0000
[NCO Rx ch.A]
FCW00=1
FCW01=0.5
FCW02=0
FCW03=0
FCW04=0
FCW05=0
FCW06=0
FCW07=0
FCW08=0
FCW09=0
FCW10=0
FCW11=0
FCW12=0
FCW13=0
FCW14=0
FCW15=0
PHO00=0
PHO01=0
PHO02=0
PHO03=0
PHO04=0
PHO05=0
PHO06=0
PHO07=0
PHO08=0
PHO09=0
PHO10=0
PHO11=0
PHO12=0
PHO13=0
PHO14=0
PHO15=0
[NCO Rx ch.B]
FCW00=0
FCW01=0
FCW02=0
FCW03=0
FCW04=0
FCW05=0
FCW06=0
FCW07=0
FCW08=0
FCW09=0
FCW10=0
FCW11=0
FCW12=0
FCW13=0
FCW14=0
FCW15=0
PHO00=0
PHO01=0
PHO02=0
PHO03=0
PHO04=0
PHO05=0
PHO06=0
PHO07=0
PHO08=0
PHO09=0
PHO10=0
PHO11=0
PHO12=0
PHO13=0
PHO14=0
PHO15=0
[NCO Tx ch.A]
FCW00=2
FCW01=0
FCW02=0
FCW03=0
FCW04=0
FCW05=0
FCW06=0
FCW07=0
FCW08=0
FCW09=0
FCW10=0
FCW11=0
FCW12=0
FCW13=0
FCW14=0
FCW15=0
PHO00=0
PHO01=0
PHO02=0
PHO03=0
PHO04=0
PHO05=0
PHO06=0
PHO07=0
PHO08=0
PHO09=0
PHO10=0
PHO11=0
PHO12=0
PHO13=0
PHO14=0
PHO15=0
[NCO Tx ch.B]
FCW00=1
FCW01=0
FCW02=0
FCW03=0
FCW04=0
FCW05=0
FCW06=0
FCW07=0
FCW08=0
FCW09=0
FCW10=0
FCW11=0
FCW12=0
FCW13=0
FCW14=0
FCW15=0
PHO00=0
PHO01=0
PHO02=0
PHO03=0
PHO04=0
PHO05=0
PHO06=0
PHO07=0
PHO08=0
PHO09=0
PHO10=0
PHO11=0
PHO12=0
PHO13=0
PHO14=0
PHO15=0
[Reference clocks]
CGEN reference frequency MHz=52
RxNCO MHz=5
SXR reference frequency MHz=52
SXT reference frequency MHz=52
TxNCO MHz=20
[TSG_DC_REG]
TSG_DC_REG_I_A_RXTSP=0x0000
TSG_DC_REG_I_A_TXTSP=0x7FFF
TSG_DC_REG_I_B_RXTSP=0x7FFF
TSG_DC_REG_I_B_TXTSP=0x7FFF
TSG_DC_REG_Q_A_RXTSP=0x0000
TSG_DC_REG_Q_A_TXTSP=0x7FFF
TSG_DC_REG_Q_B_RXTSP=0x7FFF
TSG_DC_REG_Q_B_TXTSP=0x7FFF
[gpio_states]
gpio_states_00=0x0A
gpio_states_01=0x00
gpio_states_02=0x00
gpio_states_03=0x00
gpio_states_04=0x00
gpio_states_05=0x00
gpio_states_06=0x00
gpio_states_07=0x00
gpio_states_08=0x00
gpio_states_09=0x00
gpio_states_10=0x00
gpio_states_11=0x00
gpio_states_12=0x00
gpio_states_13=0x00
gpio_states_14=0x00
gpio_states_15=0x00
gpio_states_16=0x00
gpio_states_17=0x00
gpio_states_18=0x00
gpio_states_19=0x00
gpio_states_20=0x00
gpio_states_21=0x00
gpio_states_22=0x00
gpio_states_23=0x00
gpio_states_24=0x00
gpio_states_25=0x00
gpio_states_26=0x00
gpio_states_27=0x00
gpio_states_28=0x00
gpio_states_29=0x00
gpio_states_30=0x00
gpio_states_31=0x00
gpio_states_32=0x00
gpio_states_33=0x00
gpio_states_34=0x00
gpio_states_35=0x00
gpio_states_36=0x00
gpio_states_37=0x00
gpio_states_38=0x00
gpio_states_39=0x00
gpio_states_40=0x00
gpio_states_41=0x00
gpio_states_42=0x00
gpio_states_43=0x00
gpio_states_44=0x00
gpio_states_45=0x00
gpio_states_46=0x00
gpio_states_47=0x00
gpio_states_48=0x00
gpio_states_49=0x00
gpio_states_50=0x00
gpio_states_51=0x00
gpio_states_52=0x00
gpio_states_53=0x00
gpio_states_54=0x00
gpio_states_55=0x00
Thanks,I have checked the output of the crystal oscillator, It’s 30.72MHz rather than 52MHz.
When I used the file you provided and changed the reference clock for 30.72MHz and set the CW 2MHz by “LML Output” ,then clicked “Calculate” and “Tune” buttons, now the spectrum seems more normal than before.
But it still has some strange phenomenons sometimes,like the pics attached, they always occur just for 1 or 2 seconds. I’m confused about what caused these phenomenons.
Hello Taeyeon,
Try to change on SXT/SXR page in the block ‘SXT/SXR controls’ Value of ‘CSW_VCO’ till the performance gets stable.
Make sure on the top bar of GUI in the block at the right ‘Configuring Channels’ option ‘B/SXT’ is selected.
Thanks.
I have tried as you said,but it didn’t work. The spectrum will still dither sometimes.
Hi Taeyeon,
In this case it would help to start looking ant the digital side of the platform.
It could be that the dithers are coming from the baseband side. Could you please describe
what platform are you using? Is it MyriadRF-1 board with Zipper connected to FPGA, or UNITE7002 board with Stream board? Or is it your own board design? Once we have full picture of the platform, then we can start tracking where the bug is coming from. Thanks
Since I know form the other forum conversation that the BB platform is your own design and you are using UNITE7002 boars. Let’s first check if there problems is caused in the settings of LMS7002M or in digital interface on your board.
Please load uploaded GUI setup file. You should see signal as it is on pictures attached. The ResBW of Frequency Analyzer is 100kHz.
For GUI setup, please copy this text to new txt file. and change it’s extension from .txt to .ini
[FILE INFO]
type=LMS7002 configuration
version=1
[Frequencies]
CGEN frequency MHz=100
SXR frequency MHz=2064
SXT frequency MHz=2140
[LMS7002 registers ch.A]
0x0020=0xFFFD
0x0021=0x0E9F
0x0022=0x07DF
0x0023=0xBB54
0x0024=0x2F8C
0x0025=0x0101
0x0026=0x0101
0x0027=0x50E4
0x0028=0x0101
0x0029=0x0101
0x002A=0x0086
0x002B=0x0038
0x002C=0x0000
0x002E=0x0000
0x002F=0x3840
0x0081=0x0000
0x0082=0x8003
0x0084=0x0440
0x0085=0x0001
0x0086=0x4F01
0x0087=0x2AAA
0x0088=0x053A
0x0089=0x8060
0x008A=0x3514
0x008B=0x217E
0x008C=0x267B
0x0092=0x0001
0x0093=0x0000
0x0094=0x0000
0x0095=0x0000
0x0096=0x0000
0x0097=0x0000
0x0098=0x0000
0x0099=0x6565
0x009A=0x658C
0x009B=0x6565
0x009C=0x658C
0x009D=0x6565
0x009E=0x658C
0x009F=0x658C
0x00A0=0x6565
0x00A1=0x6565
0x00A2=0x6565
0x00A3=0x6565
0x00A4=0x6565
0x00A5=0x6565
0x00A6=0x0001
0x00A7=0x6565
0x00A8=0x0000
0x00A9=0x8000
0x00AA=0x0000
0x00AB=0x0040
0x00AC=0x2000
0x00AD=0x03FD
0x00AE=0x0000
0x0100=0x3009
0x0101=0x1800
0x0102=0x7FEC
0x0103=0x0A52
0x0104=0x0088
0x0105=0x0007
0x0106=0x3184
0x0107=0x318C
0x0108=0x902A
0x0109=0x8C7C
0x010A=0x0080
0x010C=0x8865
0x010D=0x015A
0x010E=0x1D18
0x010F=0x3042
0x0110=0x0FF4
0x0111=0x0122
0x0112=0xB52C
0x0113=0x03C3
0x0114=0x0010
0x0115=0x0009
0x0116=0x8480
0x0117=0x0AC9
0x0118=0x816C
0x0119=0xD299
0x011A=0x2E06
0x011C=0xA941
0x011D=0x0000
0x011E=0x0826
0x011F=0x3600
0x0120=0xB9FF
0x0121=0x32AC
0x0122=0x033F
0x0123=0x367B
0x0124=0x0000
0x0200=0x010D
0x0201=0x07FF
0x0202=0x0750
0x0203=0x0FDB
0x0204=0xF0F2
0x0205=0x0201
0x0206=0x0000
0x0207=0x0300
0x0208=0x0070
0x0209=0x0000
0x020A=0x0080
0x020B=0x4000
0x020C=0x7FFF
0x0240=0x0020
0x0280=0x0000
0x0281=0x0000
0x0282=0x0000
0x0283=0x0000
0x0284=0x0000
0x0285=0x0000
0x0286=0x0000
0x0287=0x0000
0x0288=0x0000
0x0289=0x0000
0x028A=0x0000
0x028B=0x0000
0x028C=0x0000
0x028D=0x0000
0x028E=0x0000
0x028F=0x0000
0x0290=0x0000
0x0291=0x0000
0x0292=0x0000
0x0293=0x0000
0x0294=0x0000
0x0295=0x0000
0x0296=0x0000
0x0297=0x0000
0x0298=0x0000
0x0299=0x0000
0x029A=0x0000
0x029B=0x0000
0x029C=0x0000
0x029D=0x0000
0x029E=0x0000
0x029F=0x0000
0x02A0=0x0000
0x02A1=0x0000
0x02A2=0x0000
0x02A3=0x0000
0x02A4=0x0000
0x02A5=0x0000
0x02A6=0x0000
0x02A7=0x0000
0x02C0=0x0000
0x02C1=0x0000
0x02C2=0x0000
0x02C3=0x0000
0x02C4=0x0000
0x02C5=0x0000
0x02C6=0x0000
0x02C7=0x0000
0x02C8=0x0000
0x02C9=0x0000
0x02CA=0x0000
0x02CB=0x0000
0x02CC=0x0000
0x02CD=0x0000
0x02CE=0x0000
0x02CF=0x0000
0x02D0=0x0000
0x02D1=0x0000
0x02D2=0x0000
0x02D3=0x0000
0x02D4=0x0000
0x02D5=0x0000
0x02D6=0x0000
0x02D7=0x0000
0x02D8=0x0000
0x02D9=0x0000
0x02DA=0x0000
0x02DB=0x0000
0x02DC=0x0000
0x02DD=0x0000
0x02DE=0x0000
0x02DF=0x0000
0x02E0=0x0000
0x02E1=0x0000
0x02E2=0x0000
0x02E3=0x0000
0x02E4=0x0000
0x02E5=0x0000
0x02E6=0x0000
0x02E7=0x0000
0x0300=0x0000
0x0301=0x0000
0x0302=0x0000
0x0303=0x0000
0x0304=0x0000
0x0305=0x0000
0x0306=0x0000
0x0307=0x0000
0x0308=0x0000
0x0309=0x0000
0x030A=0x0000
0x030B=0x0000
0x030C=0x0000
0x030D=0x0000
0x030E=0x0000
0x030F=0x0000
0x0310=0x0000
0x0311=0x0000
0x0312=0x0000
0x0313=0x0000
0x0314=0x0000
0x0315=0x0000
0x0316=0x0000
0x0317=0x0000
0x0318=0x0000
0x0319=0x0000
0x031A=0x0000
0x031B=0x0000
0x031C=0x0000
0x031D=0x0000
0x031E=0x0000
0x031F=0x0000
0x0320=0x0000
0x0321=0x0000
0x0322=0x0000
0x0323=0x0000
0x0324=0x0000
0x0325=0x0000
0x0326=0x0000
0x0327=0x0000
0x0340=0x0000
0x0341=0x0000
0x0342=0x0000
0x0343=0x0000
0x0344=0x0000
0x0345=0x0000
0x0346=0x0000
0x0347=0x0000
0x0348=0x0000
0x0349=0x0000
0x034A=0x0000
0x034B=0x0000
0x034C=0x0000
0x034D=0x0000
0x034E=0x0000
0x034F=0x0000
0x0350=0x0000
0x0351=0x0000
0x0352=0x0000
0x0353=0x0000
0x0354=0x0000
0x0355=0x0000
0x0356=0x0000
0x0357=0x0000
0x0358=0x0000
0x0359=0x0000
0x035A=0x0000
0x035B=0x0000
0x035C=0x0000
0x035D=0x0000
0x035E=0x0000
0x035F=0x0000
0x0360=0x0000
0x0361=0x0000
0x0362=0x0000
0x0363=0x0000
0x0364=0x0000
0x0365=0x0000
0x0366=0x0000
0x0367=0x0000
0x0380=0x0000
0x0381=0x0000
0x0382=0x0000
0x0383=0x0000
0x0384=0x0000
0x0385=0x0000
0x0386=0x0000
0x0387=0x0000
0x0388=0x0000
0x0389=0x0000
0x038A=0x0000
0x038B=0x0000
0x038C=0x0000
0x038D=0x0000
0x038E=0x0000
0x038F=0x0000
0x0390=0x0000
0x0391=0x0000
0x0392=0x0000
0x0393=0x0000
0x0394=0x0000
0x0395=0x0000
0x0396=0x0000
0x0397=0x0000
0x0398=0x0000
0x0399=0x0000
0x039A=0x0000
0x039B=0x0000
0x039C=0x0000
0x039D=0x0000
0x039E=0x0000
0x039F=0x0000
0x03A0=0x0000
0x03A1=0x0000
0x03A2=0x0000
0x03A3=0x0000
0x03A4=0x0000
0x03A5=0x0000
0x03A6=0x0000
0x03A7=0x0000
0x0400=0x6081
0x0401=0x07FF
0x0402=0x07FF
0x0403=0x7000
0x0404=0x0000
0x0405=0x0000
0x0406=0x0000
0x0407=0x0000
0x0408=0x000A
0x0409=0x0F80
0x040A=0x0002
0x040B=0x7FFF
0x040C=0x2038
0x040E=0x0001
0x040F=0x1A27
0x0440=0x003C
0x0480=0x0000
0x0481=0x0000
0x0482=0x0000
0x0483=0x0000
0x0484=0x0000
0x0485=0x0000
0x0486=0x0000
0x0487=0x0000
0x0488=0x0000
0x0489=0x0000
0x048A=0x0000
0x048B=0x0000
0x048C=0x0000
0x048D=0x0000
0x048E=0x0000
0x048F=0x0000
0x0490=0x0000
0x0491=0x0000
0x0492=0x0000
0x0493=0x0000
0x0494=0x0000
0x0495=0x0000
0x0496=0x0000
0x0497=0x0000
0x0498=0x0000
0x0499=0x0000
0x049A=0x0000
0x049B=0x0000
0x049C=0x0000
0x049D=0x0000
0x049E=0x0000
0x049F=0x0000
0x04A0=0x0000
0x04A1=0x0000
0x04A2=0x0000
0x04A3=0x0000
0x04A4=0x0000
0x04A5=0x0000
0x04A6=0x0000
0x04A7=0x0000
0x04C0=0x0000
0x04C1=0x0000
0x04C2=0x0000
0x04C3=0x0000
0x04C4=0x0000
0x04C5=0x0000
0x04C6=0x0000
0x04C7=0x0000
0x04C8=0x0000
0x04C9=0x0000
0x04CA=0x0000
0x04CB=0x0000
0x04CC=0x0000
0x04CD=0x0000
0x04CE=0x0000
0x04CF=0x0000
0x04D0=0x0000
0x04D1=0x0000
0x04D2=0x0000
0x04D3=0x0000
0x04D4=0x0000
0x04D5=0x0000
0x04D6=0x0000
0x04D7=0x0000
0x04D8=0x0000
0x04D9=0x0000
0x04DA=0x0000
0x04DB=0x0000
0x04DC=0x0000
0x04DD=0x0000
0x04DE=0x0000
0x04DF=0x0000
0x04E0=0x0000
0x04E1=0x0000
0x04E2=0x0000
0x04E3=0x0000
0x04E4=0x0000
0x04E5=0x0000
0x04E6=0x0000
0x04E7=0x0000
0x0500=0x0000
0x0501=0x0000
0x0502=0x0000
0x0503=0x0000
0x0504=0x0000
0x0505=0x0000
0x0506=0x0000
0x0507=0x0000
0x0508=0x0000
0x0509=0x0000
0x050A=0x0000
0x050B=0x0000
0x050C=0x0000
0x050D=0x0000
0x050E=0x0000
0x050F=0x0000
0x0510=0x0000
0x0511=0x0000
0x0512=0x0000
0x0513=0x0000
0x0514=0x0000
0x0515=0x0000
0x0516=0x0000
0x0517=0x0000
0x0518=0x0000
0x0519=0x0000
0x051A=0x0000
0x051B=0x0000
0x051C=0x0000
0x051D=0x0000
0x051E=0x0000
0x051F=0x0000
0x0520=0x0000
0x0521=0x0000
0x0522=0x0000
0x0523=0x0000
0x0524=0x0000
0x0525=0x0000
0x0526=0x0000
0x0527=0x0000
0x0540=0x0000
0x0541=0x0000
0x0542=0x0000
0x0543=0x0000
0x0544=0x0000
0x0545=0x0000
0x0546=0x0000
0x0547=0x0000
0x0548=0x0000
0x0549=0x0000
0x054A=0x0000
0x054B=0x0000
0x054C=0x0000
0x054D=0x0000
0x054E=0x0000
0x054F=0x0000
0x0550=0x0000
0x0551=0x0000
0x0552=0x0000
0x0553=0x0000
0x0554=0x0000
0x0555=0x0000
0x0556=0x0000
0x0557=0x0000
0x0558=0x0000
0x0559=0x0000
0x055A=0x0000
0x055B=0x0000
0x055C=0x0000
0x055D=0x0000
0x055E=0x0000
0x055F=0x0000
0x0560=0x0000
0x0561=0x0000
0x0562=0x0000
0x0563=0x0000
0x0564=0x0000
0x0565=0x0000
0x0566=0x0000
0x0567=0x0000
0x0580=0x0000
0x0581=0x0000
0x0582=0x0000
0x0583=0x0000
0x0584=0x0000
0x0585=0x0000
0x0586=0x0000
0x0587=0x0000
0x0588=0x0000
0x0589=0x0000
0x058A=0x0000
0x058B=0x0000
0x058C=0x0000
0x058D=0x0000
0x058E=0x0000
0x058F=0x0000
0x0590=0x0000
0x0591=0x0000
0x0592=0x0000
0x0593=0x0000
0x0594=0x0000
0x0595=0x0000
0x0596=0x0000
0x0597=0x0000
0x0598=0x0000
0x0599=0x0000
0x059A=0x0000
0x059B=0x0000
0x059C=0x0000
0x059D=0x0000
0x059E=0x0000
0x059F=0x0000
0x05A0=0x0000
0x05A1=0x0000
0x05A2=0x0000
0x05A3=0x0000
0x05A4=0x0000
0x05A5=0x0000
0x05A6=0x0000
0x05A7=0x0000
[LMS7002 registers ch.B]
0x0100=0xB409
0x0101=0x7800
0x0102=0x3180
0x0103=0x0A12
0x0104=0x0088
0x0105=0x0007
0x0106=0x318C
0x0107=0x318C
0x0108=0x3C28
0x0109=0x61C1
0x010A=0x104C
0x010C=0x8865
0x010D=0x011A
0x010E=0x2040
0x010F=0x3042
0x0110=0x0BF4
0x0111=0x0083
0x0112=0xC0E6
0x0113=0x03C3
0x0114=0x008D
0x0115=0x0009
0x0116=0x8180
0x0117=0x280C
0x0118=0x018C
0x0119=0x18DF
0x011A=0x2E02
0x011C=0xA941
0x011D=0x2AAA
0x011E=0x0875
0x011F=0x3600
0x0120=0xB9FF
0x0121=0x3368
0x0122=0x033F
0x0123=0x367B
0x0124=0x0000
0x0200=0x0081
0x0201=0x07FF
0x0202=0x07FF
0x0203=0x7000
0x0204=0x0000
0x0205=0x0000
0x0206=0x0000
0x0207=0x0000
0x0208=0x01FB
0x0209=0x0000
0x020A=0x0080
0x020B=0x4000
0x020C=0x7FFF
0x0240=0x0022
0x0280=0x0000
0x0281=0x0000
0x0282=0x0000
0x0283=0x0000
0x0284=0x0000
0x0285=0x0000
0x0286=0x0000
0x0287=0x0000
0x0288=0x0000
0x0289=0x0000
0x028A=0x0000
0x028B=0x0000
0x028C=0x0000
0x028D=0x0000
0x028E=0x0000
0x028F=0x0000
0x0290=0x0000
0x0291=0x0000
0x0292=0x0000
0x0293=0x0000
0x0294=0x0000
0x0295=0x0000
0x0296=0x0000
0x0297=0x0000
0x0298=0x0000
0x0299=0x0000
0x029A=0x0000
0x029B=0x0000
0x029C=0x0000
0x029D=0x0000
0x029E=0x0000
0x029F=0x0000
0x02A0=0x0000
0x02A1=0x0000
0x02A2=0x0000
0x02A3=0x0000
0x02A4=0x0000
0x02A5=0x0000
0x02A6=0x0000
0x02A7=0x0000
0x02C0=0x0000
0x02C1=0x0000
0x02C2=0x0000
0x02C3=0x0000
0x02C4=0x0000
0x02C5=0x0000
0x02C6=0x0000
0x02C7=0x0000
0x02C8=0x0000
0x02C9=0x0000
0x02CA=0x0000
0x02CB=0x0000
0x02CC=0x0000
0x02CD=0x0000
0x02CE=0x0000
0x02CF=0x0000
0x02D0=0x0000
0x02D1=0x0000
0x02D2=0x0000
0x02D3=0x0000
0x02D4=0x0000
0x02D5=0x0000
0x02D6=0x0000
0x02D7=0x0000
0x02D8=0x0000
0x02D9=0x0000
0x02DA=0x0000
0x02DB=0x0000
0x02DC=0x0000
0x02DD=0x0000
0x02DE=0x0000
0x02DF=0x0000
0x02E0=0x0000
0x02E1=0x0000
0x02E2=0x0000
0x02E3=0x0000
0x02E4=0x0000
0x02E5=0x0000
0x02E6=0x0000
0x02E7=0x0000
0x0300=0x0000
0x0301=0x0000
0x0302=0x0000
0x0303=0x0000
0x0304=0x0000
0x0305=0x0000
0x0306=0x0000
0x0307=0x0000
0x0308=0x0000
0x0309=0x0000
0x030A=0x0000
0x030B=0x0000
0x030C=0x0000
0x030D=0x0000
0x030E=0x0000
0x030F=0x0000
0x0310=0x0000
0x0311=0x0000
0x0312=0x0000
0x0313=0x0000
0x0314=0x0000
0x0315=0x0000
0x0316=0x0000
0x0317=0x0000
0x0318=0x0000
0x0319=0x0000
0x031A=0x0000
0x031B=0x0000
0x031C=0x0000
0x031D=0x0000
0x031E=0x0000
0x031F=0x0000
0x0320=0x0000
0x0321=0x0000
0x0322=0x0000
0x0323=0x0000
0x0324=0x0000
0x0325=0x0000
0x0326=0x0000
0x0327=0x0000
0x0340=0x0000
0x0341=0x0000
0x0342=0x0000
0x0343=0x0000
0x0344=0x0000
0x0345=0x0000
0x0346=0x0000
0x0347=0x0000
0x0348=0x0000
0x0349=0x0000
0x034A=0x0000
0x034B=0x0000
0x034C=0x0000
0x034D=0x0000
0x034E=0x0000
0x034F=0x0000
0x0350=0x0000
0x0351=0x0000
0x0352=0x0000
0x0353=0x0000
0x0354=0x0000
0x0355=0x0000
0x0356=0x0000
0x0357=0x0000
0x0358=0x0000
0x0359=0x0000
0x035A=0x0000
0x035B=0x0000
0x035C=0x0000
0x035D=0x0000
0x035E=0x0000
0x035F=0x0000
0x0360=0x0000
0x0361=0x0000
0x0362=0x0000
0x0363=0x0000
0x0364=0x0000
0x0365=0x0000
0x0366=0x0000
0x0367=0x0000
0x0380=0x0000
0x0381=0x0000
0x0382=0x0000
0x0383=0x0000
0x0384=0x0000
0x0385=0x0000
0x0386=0x0000
0x0387=0x0000
0x0388=0x0000
0x0389=0x0000
0x038A=0x0000
0x038B=0x0000
0x038C=0x0000
0x038D=0x0000
0x038E=0x0000
0x038F=0x0000
0x0390=0x0000
0x0391=0x0000
0x0392=0x0000
0x0393=0x0000
0x0394=0x0000
0x0395=0x0000
0x0396=0x0000
0x0397=0x0000
0x0398=0x0000
0x0399=0x0000
0x039A=0x0000
0x039B=0x0000
0x039C=0x0000
0x039D=0x0000
0x039E=0x0000
0x039F=0x0000
0x03A0=0x0000
0x03A1=0x0000
0x03A2=0x0000
0x03A3=0x0000
0x03A4=0x0000
0x03A5=0x0000
0x03A6=0x0000
0x03A7=0x0000
0x0400=0x0081
0x0401=0x07FF
0x0402=0x07FF
0x0403=0x0000
0x0404=0x0000
0x0405=0x0000
0x0406=0x0000
0x0407=0x0000
0x0408=0x0000
0x0409=0x0000
0x040A=0x0000
0x040B=0x7FFF
0x040C=0x0000
0x040E=0x0000
0x040F=0x0000
0x0440=0x0020
0x0480=0x0000
0x0481=0x0000
0x0482=0x0000
0x0483=0x0000
0x0484=0x0000
0x0485=0x0000
0x0486=0x0000
0x0487=0x0000
0x0488=0x0000
0x0489=0x0000
0x048A=0x0000
0x048B=0x0000
0x048C=0x0000
0x048D=0x0000
0x048E=0x0000
0x048F=0x0000
0x0490=0x0000
0x0491=0x0000
0x0492=0x0000
0x0493=0x0000
0x0494=0x0000
0x0495=0x0000
0x0496=0x0000
0x0497=0x0000
0x0498=0x0000
0x0499=0x0000
0x049A=0x0000
0x049B=0x0000
0x049C=0x0000
0x049D=0x0000
0x049E=0x0000
0x049F=0x0000
0x04A0=0x0000
0x04A1=0x0000
0x04A2=0x0000
0x04A3=0x0000
0x04A4=0x0000
0x04A5=0x0000
0x04A6=0x0000
0x04A7=0x0000
0x04C0=0x0000
0x04C1=0x0000
0x04C2=0x0000
0x04C3=0x0000
0x04C4=0x0000
0x04C5=0x0000
0x04C6=0x0000
0x04C7=0x0000
0x04C8=0x0000
0x04C9=0x0000
0x04CA=0x0000
0x04CB=0x0000
0x04CC=0x0000
0x04CD=0x0000
0x04CE=0x0000
0x04CF=0x0000
0x04D0=0x0000
0x04D1=0x0000
0x04D2=0x0000
0x04D3=0x0000
0x04D4=0x0000
0x04D5=0x0000
0x04D6=0x0000
0x04D7=0x0000
0x04D8=0x0000
0x04D9=0x0000
0x04DA=0x0000
0x04DB=0x0000
0x04DC=0x0000
0x04DD=0x0000
0x04DE=0x0000
0x04DF=0x0000
0x04E0=0x0000
0x04E1=0x0000
0x04E2=0x0000
0x04E3=0x0000
0x04E4=0x0000
0x04E5=0x0000
0x04E6=0x0000
0x04E7=0x0000
0x0500=0x0000
0x0501=0x0000
0x0502=0x0000
0x0503=0x0000
0x0504=0x0000
0x0505=0x0000
0x0506=0x0000
0x0507=0x0000
0x0508=0x0000
0x0509=0x0000
0x050A=0x0000
0x050B=0x0000
0x050C=0x0000
0x050D=0x0000
0x050E=0x0000
0x050F=0x0000
0x0510=0x0000
0x0511=0x0000
0x0512=0x0000
0x0513=0x0000
0x0514=0x0000
0x0515=0x0000
0x0516=0x0000
0x0517=0x0000
0x0518=0x0000
0x0519=0x0000
0x051A=0x0000
0x051B=0x0000
0x051C=0x0000
0x051D=0x0000
0x051E=0x0000
0x051F=0x0000
0x0520=0x0000
0x0521=0x0000
0x0522=0x0000
0x0523=0x0000
0x0524=0x0000
0x0525=0x0000
0x0526=0x0000
0x0527=0x0000
0x0540=0x0000
0x0541=0x0000
0x0542=0x0000
0x0543=0x0000
0x0544=0x0000
0x0545=0x0000
0x0546=0x0000
0x0547=0x0000
0x0548=0x0000
0x0549=0x0000
0x054A=0x0000
0x054B=0x0000
0x054C=0x0000
0x054D=0x0000
0x054E=0x0000
0x054F=0x0000
0x0550=0x0000
0x0551=0x0000
0x0552=0x0000
0x0553=0x0000
0x0554=0x0000
0x0555=0x0000
0x0556=0x0000
0x0557=0x0000
0x0558=0x0000
0x0559=0x0000
0x055A=0x0000
0x055B=0x0000
0x055C=0x0000
0x055D=0x0000
0x055E=0x0000
0x055F=0x0000
0x0560=0x0000
0x0561=0x0000
0x0562=0x0000
0x0563=0x0000
0x0564=0x0000
0x0565=0x0000
0x0566=0x0000
0x0567=0x0000
0x0580=0x0000
0x0581=0x0000
0x0582=0x0000
0x0583=0x0000
0x0584=0x0000
0x0585=0x0000
0x0586=0x0000
0x0587=0x0000
0x0588=0x0000
0x0589=0x0000
0x058A=0x0000
0x058B=0x0000
0x058C=0x0000
0x058D=0x0000
0x058E=0x0000
0x058F=0x0000
0x0590=0x0000
0x0591=0x0000
0x0592=0x0000
0x0593=0x0000
0x0594=0x0000
0x0595=0x0000
0x0596=0x0000
0x0597=0x0000
0x0598=0x0000
0x0599=0x0000
0x059A=0x0000
0x059B=0x0000
0x059C=0x0000
0x059D=0x0000
0x059E=0x0000
0x059F=0x0000
0x05A0=0x0000
0x05A1=0x0000
0x05A2=0x0000
0x05A3=0x0000
0x05A4=0x0000
0x05A5=0x0000
0x05A6=0x0000
0x05A7=0x0000
[NCO Rx ch.A]
FCW00=0
FCW01=0
FCW02=0
FCW03=0
FCW04=0
FCW05=0
FCW06=0
FCW07=0
FCW08=0
FCW09=0
FCW10=0
FCW11=0
FCW12=0
FCW13=0
FCW14=0
FCW15=0
PHO00=0
PHO01=0
PHO02=0
PHO03=0
PHO04=0
PHO05=0
PHO06=0
PHO07=0
PHO08=0
PHO09=0
PHO10=0
PHO11=0
PHO12=0
PHO13=0
PHO14=0
PHO15=0
[NCO Rx ch.B]
FCW00=0
FCW01=0
FCW02=0
FCW03=0
FCW04=0
FCW05=0
FCW06=0
FCW07=0
FCW08=0
FCW09=0
FCW10=0
FCW11=0
FCW12=0
FCW13=0
FCW14=0
FCW15=0
PHO00=0
PHO01=0
PHO02=0
PHO03=0
PHO04=0
PHO05=0
PHO06=0
PHO07=0
PHO08=0
PHO09=0
PHO10=0
PHO11=0
PHO12=0
PHO13=0
PHO14=0
PHO15=0
[NCO Tx ch.A]
FCW00=1
FCW01=2
FCW02=0
FCW03=0
FCW04=0
FCW05=0
FCW06=0
FCW07=0
FCW08=0
FCW09=0
FCW10=0
FCW11=0
FCW12=0
FCW13=0
FCW14=0
FCW15=0
PHO00=0
PHO01=0
PHO02=0
PHO03=0
PHO04=0
PHO05=0
PHO06=0
PHO07=0
PHO08=0
PHO09=0
PHO10=0
PHO11=0
PHO12=0
PHO13=0
PHO14=0
PHO15=0
[NCO Tx ch.B]
FCW00=0
FCW01=0
FCW02=0
FCW03=0
FCW04=0
FCW05=0
FCW06=0
FCW07=0
FCW08=0
FCW09=0
FCW10=0
FCW11=0
FCW12=0
FCW13=0
FCW14=0
FCW15=0
PHO00=0
PHO01=0
PHO02=0
PHO03=0
PHO04=0
PHO05=0
PHO06=0
PHO07=0
PHO08=0
PHO09=0
PHO10=0
PHO11=0
PHO12=0
PHO13=0
PHO14=0
PHO15=0
[Reference clocks]
CGEN reference frequency MHz=30.72
RxNCO MHz=25
SXR reference frequency MHz=30.72
SXT reference frequency MHz=30.72
TxNCO MHz=100
[TSG_DC_REG]
TSG_DC_REG_I_A_RXTSP=0x7FFF
TSG_DC_REG_I_A_TXTSP=0x7FFF
TSG_DC_REG_I_B_RXTSP=0x7FFF
TSG_DC_REG_I_B_TXTSP=0x7FFF
TSG_DC_REG_Q_A_RXTSP=0x7FFF
TSG_DC_REG_Q_A_TXTSP=0x7FFF
TSG_DC_REG_Q_B_RXTSP=0x7FFF
TSG_DC_REG_Q_B_TXTSP=0x7FFF
[gpio_states]
gpio_states_00=0x0A
gpio_states_01=0x00
gpio_states_02=0x00
gpio_states_03=0x00
gpio_states_04=0x00
gpio_states_05=0x00
gpio_states_06=0x00
gpio_states_07=0x00
gpio_states_08=0x00
gpio_states_09=0x00
gpio_states_10=0x00
gpio_states_11=0x00
gpio_states_12=0x00
gpio_states_13=0x00
gpio_states_14=0x00
gpio_states_15=0x00
gpio_states_16=0x00
gpio_states_17=0x00
gpio_states_18=0x00
gpio_states_19=0x00
gpio_states_20=0x00
gpio_states_21=0x00
gpio_states_22=0x00
gpio_states_23=0x00
gpio_states_24=0x00
gpio_states_25=0x00
gpio_states_26=0x00
gpio_states_27=0x00
gpio_states_28=0x00
gpio_states_29=0x00
gpio_states_30=0x00
gpio_states_31=0x00
gpio_states_32=0x00
gpio_states_33=0x00
gpio_states_34=0x00
gpio_states_35=0x00
gpio_states_36=0x00
gpio_states_37=0x00
gpio_states_38=0x00
gpio_states_39=0x00
gpio_states_40=0x00
gpio_states_41=0x00
gpio_states_42=0x00
gpio_states_43=0x00
gpio_states_44=0x00
gpio_states_45=0x00
gpio_states_46=0x00
gpio_states_47=0x00
gpio_states_48=0x00
gpio_states_49=0x00
gpio_states_50=0x00
gpio_states_51=0x00
gpio_states_52=0x00
gpio_states_53=0x00
gpio_states_54=0x00
gpio_states_55=0x00
Hi lgnas,
Thanks very much for your help.
I’ll try it later then give you the result.
Best regards
Hi, lgnas
Here are the results of the test file. It looks the same as your result.
Does it means that the problem could be in the digital interface of my own board?
Thanks.
hi Taeyeon,
Yes, it is clearly the issue of digital lines is somewhere on your board. To find which data bit can cause the issue, I suggest to probe them one by one while you sending let’s say CW or W-CDMA signal and see if the data bit you are probing is stable or it introduces any unexpected noise.
Hi Ignas,
I have tried as you said, I found the TXCLK shows some unexpected pulse at the out put of the SN74AVC4T774, while my input signal seems OK. Could be this caused the dither of my spectrum? I tried to eliminate them, but it seems caused by the SN74AVC4T774. I will show your the waveform later. Could you help me to analyse it?
Thank you very much.
Hi lgnas，
Here is the waveform，the yellow line present the input of SN74AVC4T774 while the green is output.
Hi Taeyeon,
I see that same dither is also on the input of buffer SN74AVC4T774.
I think you have to analyze if CLK on your baseband side is working properly.
It might be something on the board is causing CLK line to dither.
As per my observation on your Evaluation boar Crystal Oscillator reference clock is not 30.72MHz, but 52MHz. So let’s first check if that is the case. In order to do so, please load GUI setup file attached
Go to SXT/SXR page, select B/SXT option on the top right side of GUI.
Type in your wanted frequency and click ‘Calculate’ & ‘Tune’. If everything is right, you should get the message.
