Hi,
My board failed failed LimeQuickTest. Please help

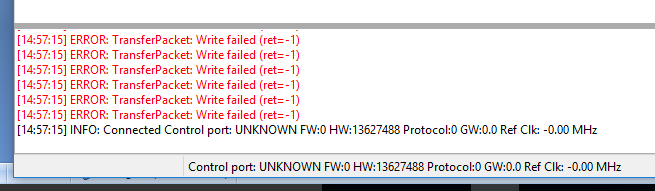

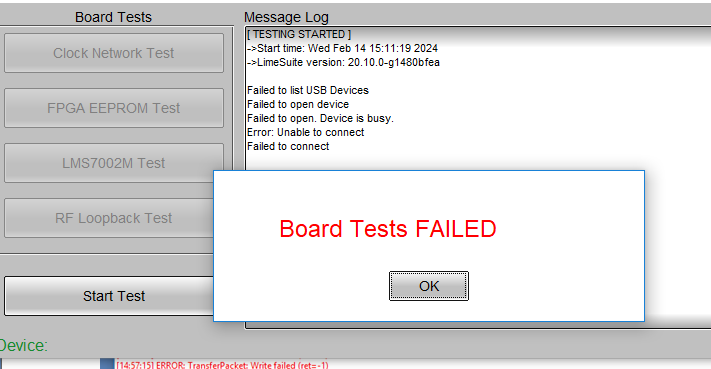

I am attaching screenshots
Thank you
If this is LimeSDR Mini v2 board, then you’re using too old software (version 20.10), which did not have support for this board.
In order to help you, please provide more information:
- Provide exact and full name/version of your board (for e.g. LimeSDR-Mini v1.2), you can find it on board silkscreen.
- Was it working before?
- Do you see any LED activity when you plug your board?
- Are you using any low quality USB hubs, extensions cables? Try connecting directly to USB3.0 port of your PC.
- Download FT60X Chip Configuration Programmer from Utilities - FTDI , read FT601 IC configuration and paste screenshot here.
Also does “Device is busy” not suggest that some other application has it open?
Hello
Here are the answers:
1- Provide exact and full name/version of your board (for e.g. LimeSDR-Mini v1.2), you can find it on board silkscreen.
LimeSDR-Mini v1.2
2-Was it working before? Yes
3-Do you see any LED activity when you plug your board?
Green Led Solid
4-Are you using any low quality USB hubs, extensions cables? Try connecting directly to USB3.0 port of your PC.

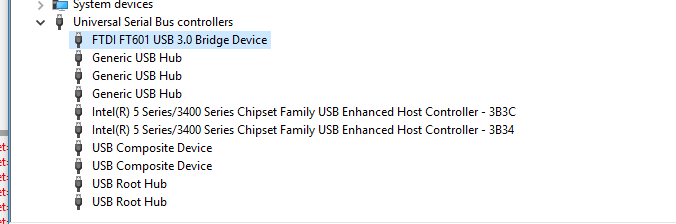

Plugged directly to mylaptop

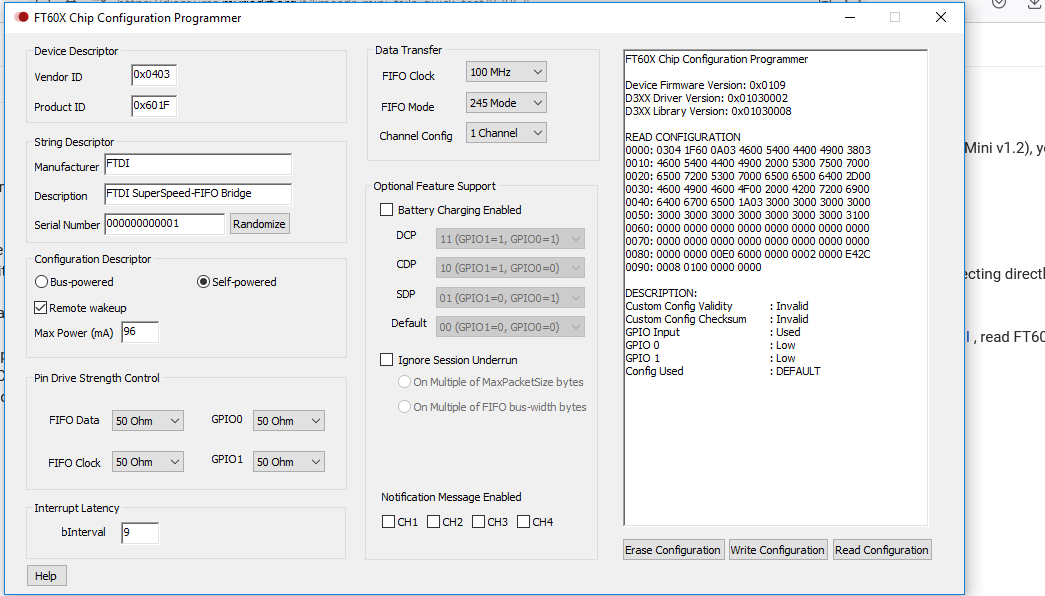

5-Download FT60X Chip Configuration Programmer from Utilities - FTDI , read FT601 IC configuration and paste screenshot here.
Including screenshot
Thank you

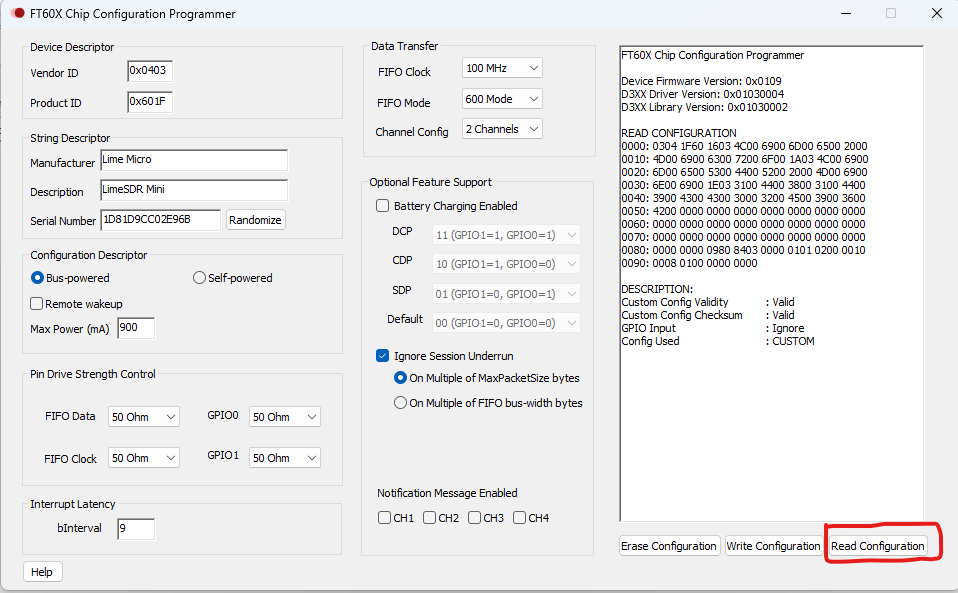

From your screenshot looks like FT601 IC configuration somehow got corrupted.

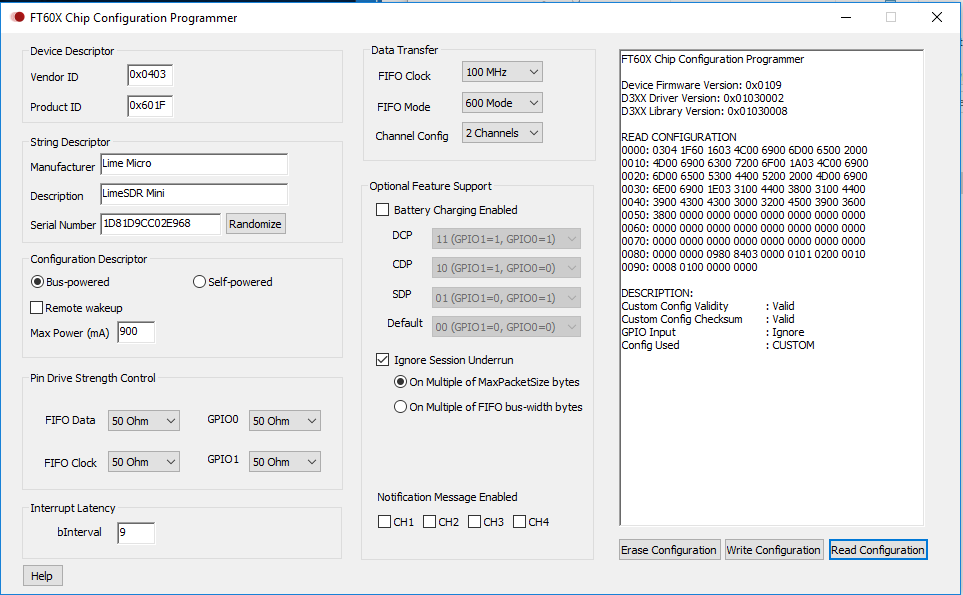

Try to restore settings as in this picture, ignore “Serial Number” field:
Click “Write Configuration” and then re-plug board and “Read Configuration” to double check if config. was written successfully.
Hello,
I wrote the new config and it looks similar to yours. I am getting a command not supported.
Is this because of an old laptop?
Thank you
Hello,
I got a hold of laptop with USB 3.0. I still fail quicktest. I appreciate any help.
Any ideas ? I have access to electronic equipment if someone can direct me to what to probe or look for. Thank you

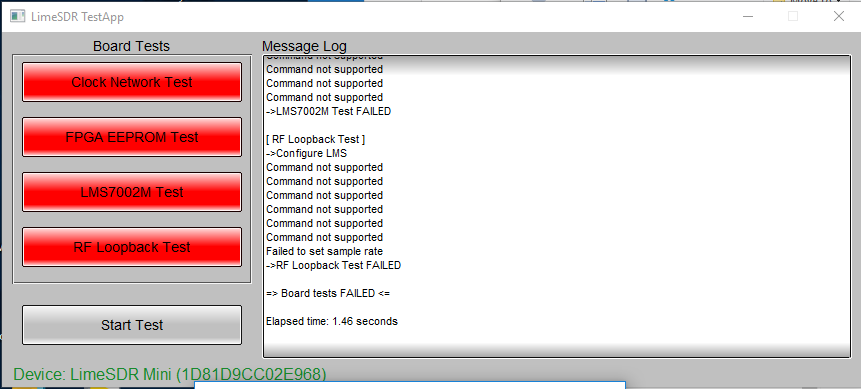

[ TESTING STARTED ]
->Start time: Thu Feb 15 14:38:38 2024
->LimeSuite version: 20.10.0-g1480bfea
Command not supported
Command not supported
Command not supported
Command not supported
->Device: LimeSDR Mini, media=USB 3, module=FT601, serial=1D81D9CC02E968, index=0, HW=1699124, GW=0.0
Serial Number: 1D81D9CC02E968
Command not supported
Operation not supported
Chip temperature: 0 C
[ Clock Network Test ]
->REF clock test
Command not supported
Command not supported
->REF clock test FAILED
->VCTCXO test
Command not supported
FAILED
->Clock Network Test FAILED
[ FPGA EEPROM Test ]
->Read EEPROM
Operation failed: error code 2
->FPGA EEPROM Test FAILED
Fixed. Quick Test Now passing
Apologies for late reply, could you share what was the fix?
Replaced the FT601.
