CS-lime-01 Board test failure

Projects LimeSDR
1

HI ,
I have one board which fails in quick test and also gets very hot. Logs attached. Do anyone has idea what could possibly go wrong?

image1556×719 338 KB

logs:
[ TESTING STARTED ]
->Start time: Mon Dec 14 13:09:10 2020
->LimeSuite version: 20.10.0-g1480bfea

Gateware version mismatch!
Expected gateware version 2, revision 23
But found version 2, revision 22
Follow the FW and FPGA upgrade instructions:
http://wiki.myriadrf.org/Lime_Suite#Flashing_images
Or run update on the command line: LimeUtil --update

->Device: LimeSDR-USB, media=USB 3.0, module=FX3, serial=0009081C05C1281D, index=0, HW=4, GW=2.22
Serial Number: 0009081C05C1281D
Chip temperature: 45 C

[ Clock Network Test ]
->FX3 GPIF clock test
Test results: 32315; 36071; 39827 - PASSED
->Si5351C test
CLK0: 17554 / 17554 - PASSED
CLK1: 17554 / 17554 - PASSED
CLK2: 17554 / 17554 - PASSED
CLK3: 17554 / 17554 - PASSED
CLK4: 17554 / 17554 - PASSED
CLK5: 17554 / 17554 - PASSED
CLK6: 17554 / 17554 - PASSED
->ADF4002 Test
Result: 10 - PASSED
->VCTCXO test
Results : 5112941 (min); 5113081 (max) - PASSED
->Clock Network Test PASSED

[ FPGA EEPROM Test ]
->Read EEPROM
->Read data: 13 01 18 13 01 18 02
->FPGA EEPROM Test PASSED

[ LMS7002M Test ]
->Perform Registers Test
->External Reset line test
Reg 0x20: Write value 0xFFFD, Read value 0xFFFD
Reg 0x20: value after reset 0x0FFFF
->LMS7002M Test PASSED

[ RF Loopback Test ]
Note: The test should be run without anything connected to RF ports
->Configure LMS
->Run Tests (TX_2-> LNA_L):
CH0 (SXR=800.0MHz, SXT=805.0MHz): Result:(-15.2 dBFS, 5.00 MHz) - PASSED
CH1 (SXR=800.0MHz, SXT=805.0MHz): Result:(-17.6 dBFS, 5.00 MHz) - PASSED
->Run Tests (TX_1 -> LNA_W):
CH0 (SXR=1800.0MHz, SXT=1805.0MHz): Result:(-43.3 dBFS, -20.00 MHz) - FAILED
CH1 (SXR=1800.0MHz, SXT=1805.0MHz): Result:(-20.3 dBFS, 5.00 MHz) - PASSED
->Run Tests (TX_2-> LNA_H):
CH0 (SXR=2500.0MHz, SXT=2505.0MHz): Result:(-17.0 dBFS, 5.00 MHz) - PASSED
CH1 (SXR=2500.0MHz, SXT=2505.0MHz): Result:(-15.3 dBFS, 5.00 MHz) - PASSED
->RF Loopback Test FAILED

=> Board tests FAILED <=

Elapsed time: 6.61 seconds

[ TESTING STARTED ]
->Start time: Mon Dec 14 13:22:44 2020
->LimeSuite version: 20.10.0-g1480bfea

Gateware version mismatch!
Expected gateware version 2, revision 23
But found version 2, revision 22
Follow the FW and FPGA upgrade instructions:
http://wiki.myriadrf.org/Lime_Suite#Flashing_images
Or run update on the command line: LimeUtil --update

->Device: LimeSDR-USB, media=USB 3.0, module=FX3, serial=0009081C05C1281D, index=0, HW=4, GW=2.22
Serial Number: 0009081C05C1281D
Chip temperature: 37 C

[ Clock Network Test ]
->FX3 GPIF clock test
Test results: 27922; 31678; 35434 - PASSED
->Si5351C test
CLK0: 17554 / 17554 - PASSED
CLK1: 17554 / 17554 - PASSED
CLK2: 17554 / 17554 - PASSED
CLK3: 17554 / 17554 - PASSED
CLK4: 17554 / 17554 - PASSED
CLK5: 17554 / 17554 - PASSED
CLK6: 17554 / 17554 - PASSED
->ADF4002 Test
Result: 10 - PASSED
->VCTCXO test
Results : 5112941 (min); 5113081 (max) - PASSED
->Clock Network Test PASSED

[ FPGA EEPROM Test ]
->Read EEPROM
->Read data: 13 01 18 13 01 18 02
->FPGA EEPROM Test PASSED

[ LMS7002M Test ]
->Perform Registers Test
->External Reset line test
Reg 0x20: Write value 0xFFFD, Read value 0xFFFD
Reg 0x20: value after reset 0x0FFFF
->LMS7002M Test PASSED

[ RF Loopback Test ]
Note: The test should be run without anything connected to RF ports
->Configure LMS
->Run Tests (TX_2-> LNA_L):
CH0 (SXR=800.0MHz, SXT=805.0MHz): Result:(-14.5 dBFS, 5.00 MHz) - PASSED
CH1 (SXR=800.0MHz, SXT=805.0MHz): Result:(-16.8 dBFS, 5.00 MHz) - PASSED
->Run Tests (TX_1 -> LNA_W):
CH0 (SXR=1800.0MHz, SXT=1805.0MHz): Result:(-43.5 dBFS, -20.00 MHz) - FAILED
CH1 (SXR=1800.0MHz, SXT=1805.0MHz): Result:(-19.0 dBFS, 5.00 MHz) - PASSED
->Run Tests (TX_2-> LNA_H):
CH0 (SXR=2500.0MHz, SXT=2505.0MHz): Result:(-17.3 dBFS, 5.00 MHz) - PASSED
CH1 (SXR=2500.0MHz, SXT=2505.0MHz): Result:(-15.8 dBFS, 5.00 MHz) - PASSED
->RF Loopback Test FAILED

=> Board tests FAILED <=

Elapsed time: 6.72 seconds

[ TESTING STARTED ]
->Start time: Mon Dec 14 13:29:23 2020
->LimeSuite version: 20.10.0-g1480bfea

Gateware version mismatch!
Expected gateware version 2, revision 23
But found version 2, revision 22
Follow the FW and FPGA upgrade instructions:
http://wiki.myriadrf.org/Lime_Suite#Flashing_images
Or run update on the command line: LimeUtil --update

->Device: LimeSDR-USB, media=USB 3.0, module=FX3, serial=0009081C05C1281D, index=0, HW=4, GW=2.22
Serial Number: 0009081C05C1281D
Chip temperature: 34 C

[ Clock Network Test ]
->FX3 GPIF clock test
Test results: 28795; 32551; 36307 - PASSED
->Si5351C test
CLK0: 17554 / 17554 - PASSED
CLK1: 17554 / 17554 - PASSED
CLK2: 17554 / 17554 - PASSED
CLK3: 17554 / 17554 - PASSED
CLK4: 17554 / 17554 - PASSED
CLK5: 17554 / 17554 - PASSED
CLK6: 17554 / 17554 - PASSED
->ADF4002 Test
Result: 10 - PASSED
->VCTCXO test
Results : 5112941 (min); 5113080 (max) - PASSED
->Clock Network Test PASSED

[ FPGA EEPROM Test ]
->Read EEPROM
->Read data: 13 01 18 13 01 18 02
->FPGA EEPROM Test PASSED

[ LMS7002M Test ]
->Perform Registers Test
->External Reset line test
Reg 0x20: Write value 0xFFFD, Read value 0xFFFD
Reg 0x20: value after reset 0x0FFFF
->LMS7002M Test PASSED

[ RF Loopback Test ]
Note: The test should be run without anything connected to RF ports
->Configure LMS
->Run Tests (TX_2-> LNA_L):
CH0 (SXR=800.0MHz, SXT=805.0MHz): Result:(-14.3 dBFS, 5.00 MHz) - PASSED
CH1 (SXR=800.0MHz, SXT=805.0MHz): Result:(-16.3 dBFS, 5.00 MHz) - PASSED
->Run Tests (TX_1 -> LNA_W):
CH0 (SXR=1800.0MHz, SXT=1805.0MHz): Result:(-43.1 dBFS, -20.00 MHz) - FAILED
CH1 (SXR=1800.0MHz, SXT=1805.0MHz): Result:(-18.5 dBFS, 5.00 MHz) - PASSED
->Run Tests (TX_2-> LNA_H):
CH0 (SXR=2500.0MHz, SXT=2505.0MHz): Result:(-16.2 dBFS, 5.00 MHz) - PASSED
CH1 (SXR=2500.0MHz, SXT=2505.0MHz): Result:(-14.9 dBFS, 5.00 MHz) - PASSED
->RF Loopback Test FAILED

=> Board tests FAILED <=

Elapsed time: 6.50 seconds

2

Looks like there may be damage to a Tx/LNA port.

@Zack, do you have anything to suggest?

3

Hi @rohit.soni,

Update the firmware to the latest and try LimeQuickTest again, please. If the same problem remains, then contact CrowdSupply for replacement.

4

Hi @Zack,
Did update on the same board. The firmware still did not updated and the LimeUtil --update command says no need to update and stays on 22 version.
logs below after running test again.
[ TESTING STARTED ]
->Start time: Wed Dec 16 11:18:59 2020
->LimeSuite version: 20.10.0-g1480bfea

Gateware version mismatch!
Expected gateware version 2, revision 23
But found version 2, revision 22
Follow the FW and FPGA upgrade instructions:
Lime Suite - Myriad-RF Wiki
Or run update on the command line: LimeUtil --update

->Device: LimeSDR-USB, media=USB 3.0, module=FX3, serial=0009081C05C1281D, index=0, HW=4, GW=2.22
Serial Number: 0009081C05C1281D
Chip temperature: 45 C

[ Clock Network Test ]
->FX3 GPIF clock test
Test results: 19835; 23591; 27347 - PASSED
->Si5351C test
CLK0: 17554 / 17554 - PASSED
CLK1: 17554 / 17554 - PASSED
CLK2: 17554 / 17554 - PASSED
CLK3: 17554 / 17554 - PASSED
CLK4: 17554 / 17554 - PASSED
CLK5: 17554 / 17554 - PASSED
CLK6: 17554 / 17554 - PASSED
->ADF4002 Test
Result: 10 - PASSED
->VCTCXO test
Results : 5112941 (min); 5113080 (max) - PASSED
->Clock Network Test PASSED

[ FPGA EEPROM Test ]
->Read EEPROM
->Read data: 13 01 18 13 01 18 02
->FPGA EEPROM Test PASSED

[ LMS7002M Test ]
->Perform Registers Test
->External Reset line test
Reg 0x20: Write value 0xFFFD, Read value 0xFFFD
Reg 0x20: value after reset 0x0FFFF
->LMS7002M Test PASSED

[ RF Loopback Test ]
Note: The test should be run without anything connected to RF ports
->Configure LMS
->Run Tests (TX_2-> LNA_L):
CH0 (SXR=800.0MHz, SXT=805.0MHz): Result:(-15.1 dBFS, 5.00 MHz) - PASSED
CH1 (SXR=800.0MHz, SXT=805.0MHz): Result:(-17.4 dBFS, 5.00 MHz) - PASSED
->Run Tests (TX_1 → LNA_W):
CH0 (SXR=1800.0MHz, SXT=1805.0MHz): Result:(-43.3 dBFS, -20.00 MHz) - FAILED
CH1 (SXR=1800.0MHz, SXT=1805.0MHz): Result:(-20.0 dBFS, 5.00 MHz) - PASSED
->Run Tests (TX_2-> LNA_H):
CH0 (SXR=2500.0MHz, SXT=2505.0MHz): Result:(-17.8 dBFS, 5.00 MHz) - PASSED
CH1 (SXR=2500.0MHz, SXT=2505.0MHz): Result:(-15.6 dBFS, 5.00 MHz) - PASSED
->RF Loopback Test FAILED

=> Board tests FAILED <=

Elapsed time: 6.49 seconds

Can you provide CroudSupply contact link so I can request replacement?

Regards,
Rohit Soni

5

Can you please post details of the error as the firmware update fails.

6

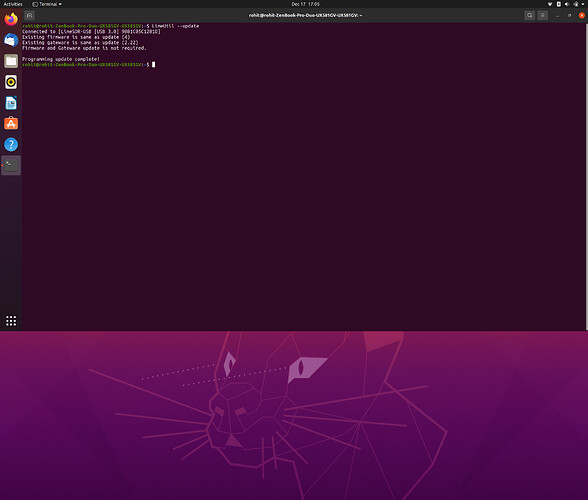

Here is the attached image. it says no firmware update required

Screenshot from 2020-12-17 17-05-16
Screenshot from 2020-12-17 17-05-163840×3260 1.27 MB

7

Hello @andrewback , Any update on error message?

8

Old software then ?
The current gateware for LimeSDR-USB hardware revision 1.4, since 2020-05-21 is version 2, revision 23 which was officially released 2020-10-29 ( ref: https://github.com/myriadrf/LimeSDR-USB_GW/blob/master/src/revision/revision.vhd#L17 )
