Why are the waveforms disappeared in FFT viewer after caculation and tunning?

System Development
1

Hello all,
I am debugging the LMS700M, I found a strange appearance。 firstly, I loaded the ini file and checked the waves and spetrum in FFT viewer（ pls refer to the following screemshot.), then I press the button of caculate and tune sequencely on the SXR tab(pls refer to the following screemshot), I don’t understand what leads this issue. if so, how can I do when I change my VCO frequency? meanwhile, we already found this issue came out when we used the MCU program to caculate and tune after we changed the VCO frequency.

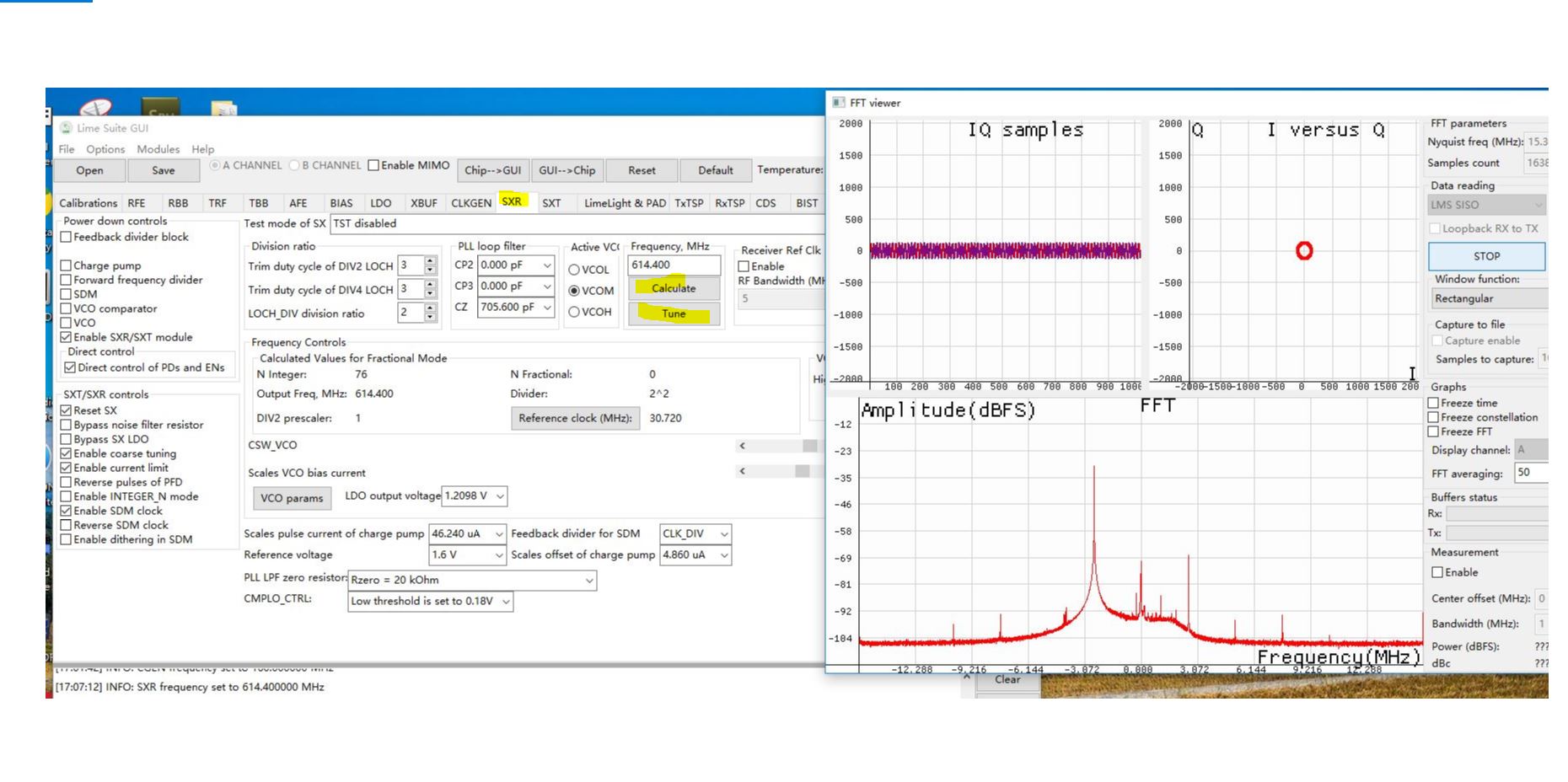

not_caculate_and_tune
not_caculate_and_tune.JPG1860×928 175 KB

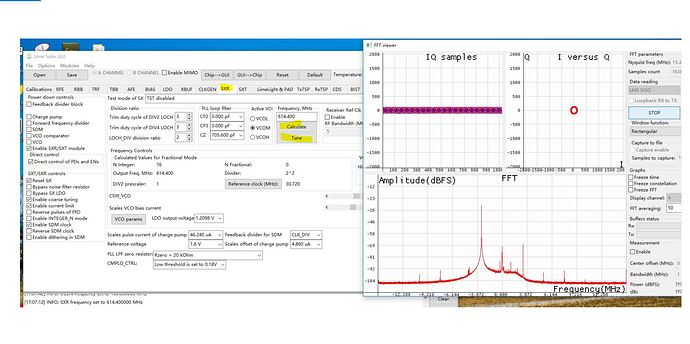

after_caculate_and_tune
