i bought my limesdr a while ago directly from crowd supply, i never could get tx to work reliably so i set it aside for a while. I’m attempting to get it working again and figured i’d ask here for some advice.
Setup:
-Windows 10
-limesdr mini
-cheap 5 watt PA (have tried without it)
-sdrConsole v3 (have also tried sdrangel)
Symptoms:
-sdrconsole will tx once successfully per boot up (tx verified with rtlsdr)
-LimeQuckTest fails with result found at bottom of post

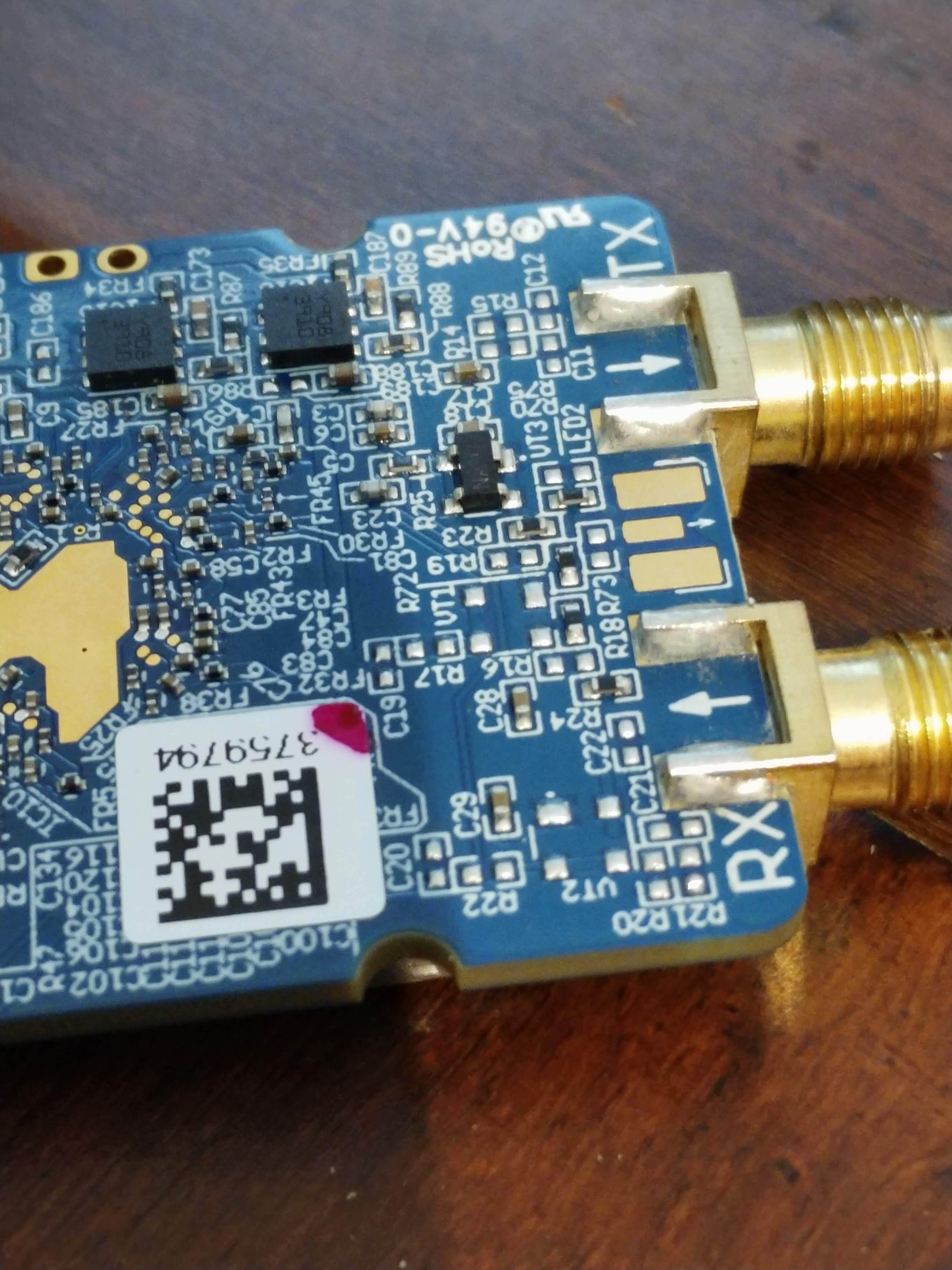

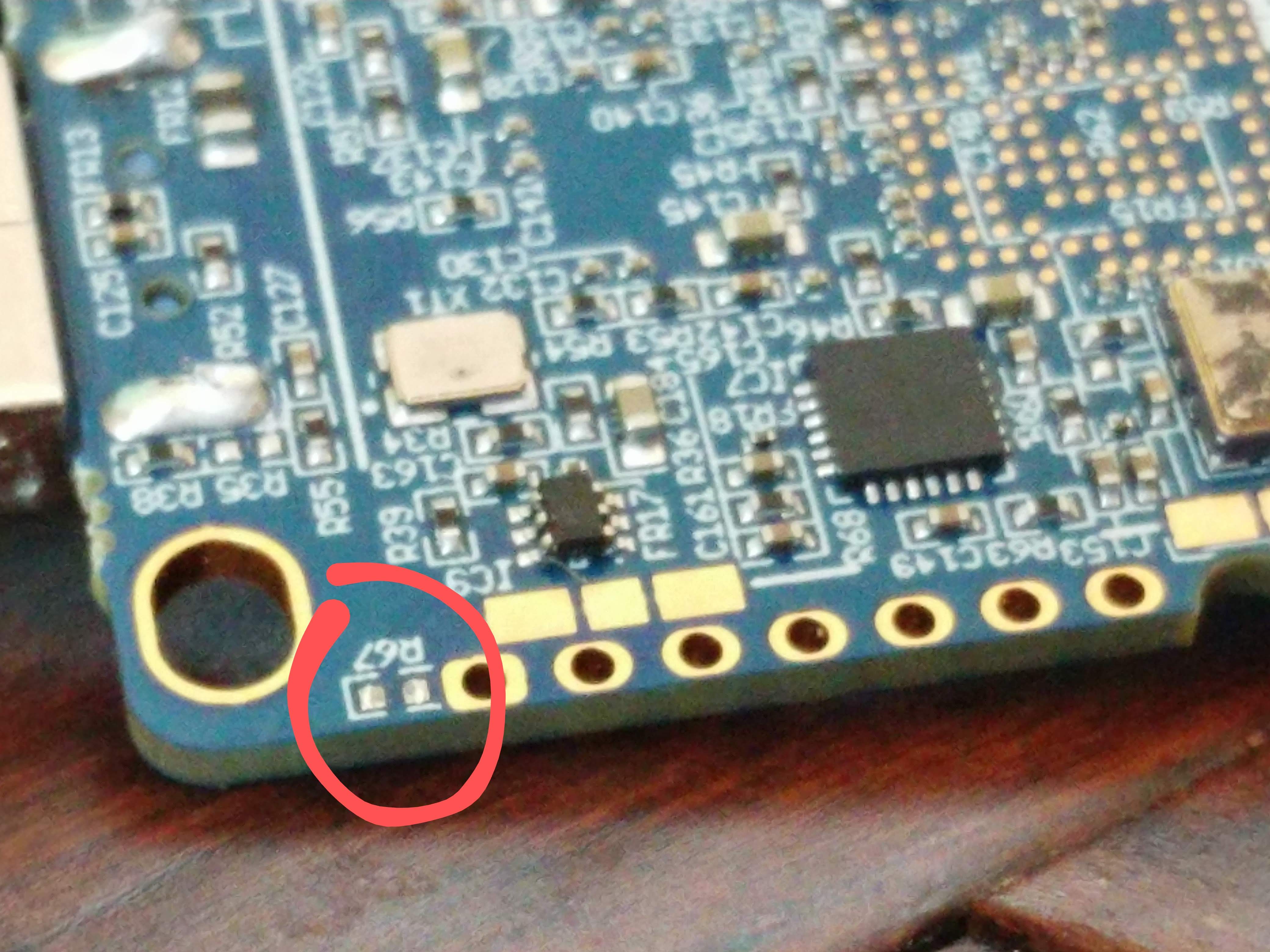

-several missing components (see images below)(i know that r67 is supposed to be there but am not sure about the others)
[ TESTING STARTED ]
->Start time: Tue Jul 14 11:25:23 2020
->Device: LimeSDR Mini, media=USB 3, module=FT601, serial=1D53AD810604E0, index=0
Serial Number: 1D53AD810604E0
[ Clock Network Test ]
->REF clock test
Test results: 37579; 50776; 63974 - PASSED
->VCTCXO test
Results : 6711027 (min); 6711027 (max) - FAILED
FAILED
->Clock Network Test FAILED
[ FPGA EEPROM Test ]
->Read EEPROM
->Read data: 13 07 0F 13 07 0F 03
->FPGA EEPROM Test PASSED
[ LMS7002M Test ]
->Perform Registers Test
->External Reset line test
Reg 0x20: Write value 0xFFFD, Read value 0xFFFD
Reg 0x20: value after reset 0x0FFFF
->LMS7002M Test PASSED
[ RF Loopback Test ]
->Configure LMS
->Run Tests (TX_2 -> LNA_W):
CH0 (SXR=1000.0MHz, SXT=1005.0MHz): Result:(-13.4 dBFS, 5.00 MHz) - PASSED
->Run Tests (TX_1 -> LNA_H):
CH0 (SXR=2100.0MHz, SXT=2105.0MHz): Result:(-14.3 dBFS, 5.00 MHz) - PASSED
->RF Loopback Test PASSED
=> Board tests FAILED <=
Elapsed time: 4.55 seconds
