Is this LimeSDR broken?

THW · 6 January 2021 23:52

I’m new to this.
Few days ago I had the westbridge issue with the USB driver, so I fixed it and then did self_test and everything was fine. Suddenly I noticed the noise floor is very low (-100dBFS) and I barely can hear radio stations.
I tried to switch antennas and channels and did tests on both SDR# and GQRX (on ubuntu) - no difference.
Everything seems fine when I perform the Quick test.

Library info: 19.04.0-g8ee7053c
Firmaware:4
Gateware: 2.21

Another issue, When connect to LimeSuite I get the following messages:

Win10:

WARNING: Gateware version mismatch!
Expected gateware version 2, revision 21
But found version 0, revision 0
Follow the FW and FPGA upgrade instructions:
Lime Suite - Myriad-RF Wiki
Or run update on the command line: LimeUtil --update

ubuntu 20.04:

[03:28:42] WARNING: Gateware version mismatch!
Expected gateware version 2, revision 22
But found version 2, revision 21
Follow the FW and FPGA upgrade instructions:
Lime Suite - Myriad-RF Wiki
Or run update on the command line: LimeUtil --update

Is there a fix for this?
is there a way to do “hard reset” and return to factory settings?
How to program the correct version of the gateware?

THW · 7 January 2021 20:18

Update.
I solved the issue with the gateware. it appears that there is differences in the GW versions between the environments (Win/Ubuntu) even though Lime suite is the same version. 2.21 vs. 2.22 respectively.

But i still have very low signal reception and and it’s annoying, I don’t know what to do
current GW version is now: 2.22

This is the result from the quick test:

[ TESTING STARTED ]
->Start time: Thu Jan 7 22:24:42 2021

->Device: LimeSDR-USB, media=USB 3.0, module=FX3, addr=1d50:6108, serial=XXXXXXXXXXXXX
Serial Number: XXXXXXXXXXX

[ Clock Network Test ]
->FX3 GPIF clock test
Test results: 22907; 26663; 30419 - PASSED
->Si5351C test
CLK0: 17554 / 17554 - PASSED
CLK1: 17554 / 17554 - PASSED
CLK2: 17554 / 17554 - PASSED
CLK3: 17554 / 17554 - PASSED
CLK4: 17554 / 17554 - PASSED
CLK5: 17554 / 17554 - PASSED
CLK6: 17554 / 17554 - PASSED
->ADF4002 Test
Result: 10 - PASSED
->VCTCXO test
Results : 5112948 (min); 5113083 (max) - PASSED
->Clock Network Test PASSED

[ FPGA EEPROM Test ]
->Read EEPROM
->Read data: 12 07 1A 12 07 1A 02
->FPGA EEPROM Test PASSED

[ LMS7002M Test ]
->Perform Registers Test
->External Reset line test
Reg 0x20: Write value 0xFFFD, Read value 0xFFFD
Reg 0x20: value after reset 0x0FFFF
->LMS7002M Test PASSED

[ RF Loopback Test ]
Note: The test should be run without anything connected to RF ports
->Configure LMS
->Run Tests (TX_2-> LNA_L):
CH0 (SXR=800.0MHz, SXT=805.0MHz): Result:(-13.7 dBFS, 5.00 MHz) - PASSED
CH1 (SXR=800.0MHz, SXT=805.0MHz): Result:(-15.2 dBFS, 5.00 MHz) - PASSED
->Run Tests (TX_1 → LNA_W):
CH0 (SXR=1800.0MHz, SXT=1805.0MHz): Result:(-18.4 dBFS, 5.00 MHz) - PASSED
CH1 (SXR=1800.0MHz, SXT=1805.0MHz): Result:(-20.7 dBFS, 5.00 MHz) - PASSED
->Run Tests (TX_2-> LNA_H):
CH0 (SXR=2500.0MHz, SXT=2505.0MHz): Result:(-15.1 dBFS, 5.00 MHz) - PASSED
CH1 (SXR=2500.0MHz, SXT=2505.0MHz): Result:(-13.3 dBFS, 5.00 MHz) - PASSED
->RF Loopback Test PASSED

=> Board tests PASSED <=

Elapsed time: 1.73 seconds

Please find attached .jpeg

andrewback · 7 January 2021 20:35

The loopback results look good and so it suggests a software/configuration issue. If you have a Windows system, perhaps give SDR Console a go:

https://www.sdr-radio.com/console

THW · 8 January 2021 00:42

Hi,
Same symptoms in sdr-radio console:

andrewback · 9 January 2021 10:55

You’ve tried the different antenna posts (LNAs) ?

Experiment with gain?

What antenna do you have connected?

THW · 9 January 2021 12:34

yeah, I’ve tried LNAL/LNAW/LNAH.
Also tried experiment with gain, it doesn’t seem to help much.
I’ve tested dipole antenna and a variety of omni-directional antennas too.

THW · 11 January 2021 00:01

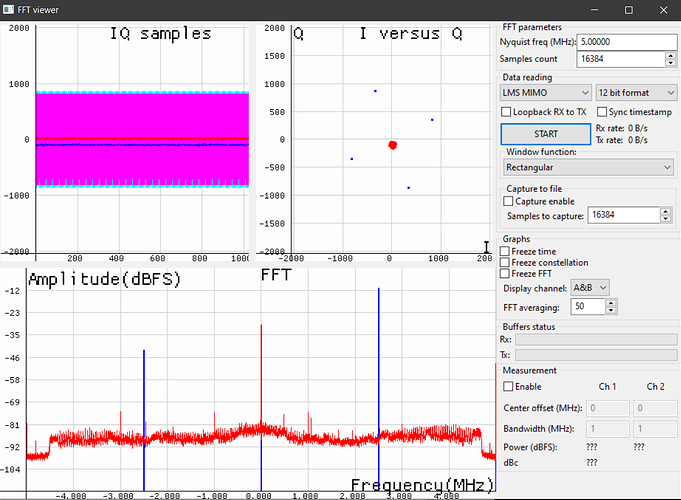

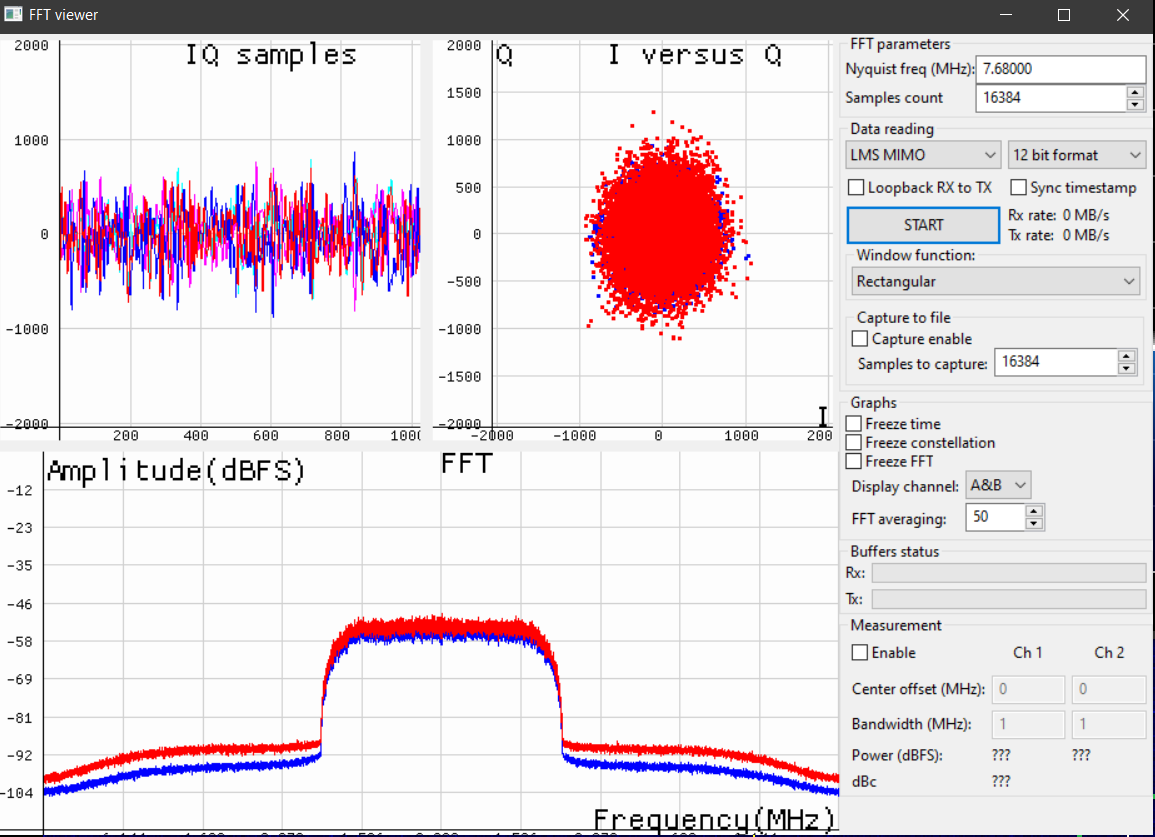

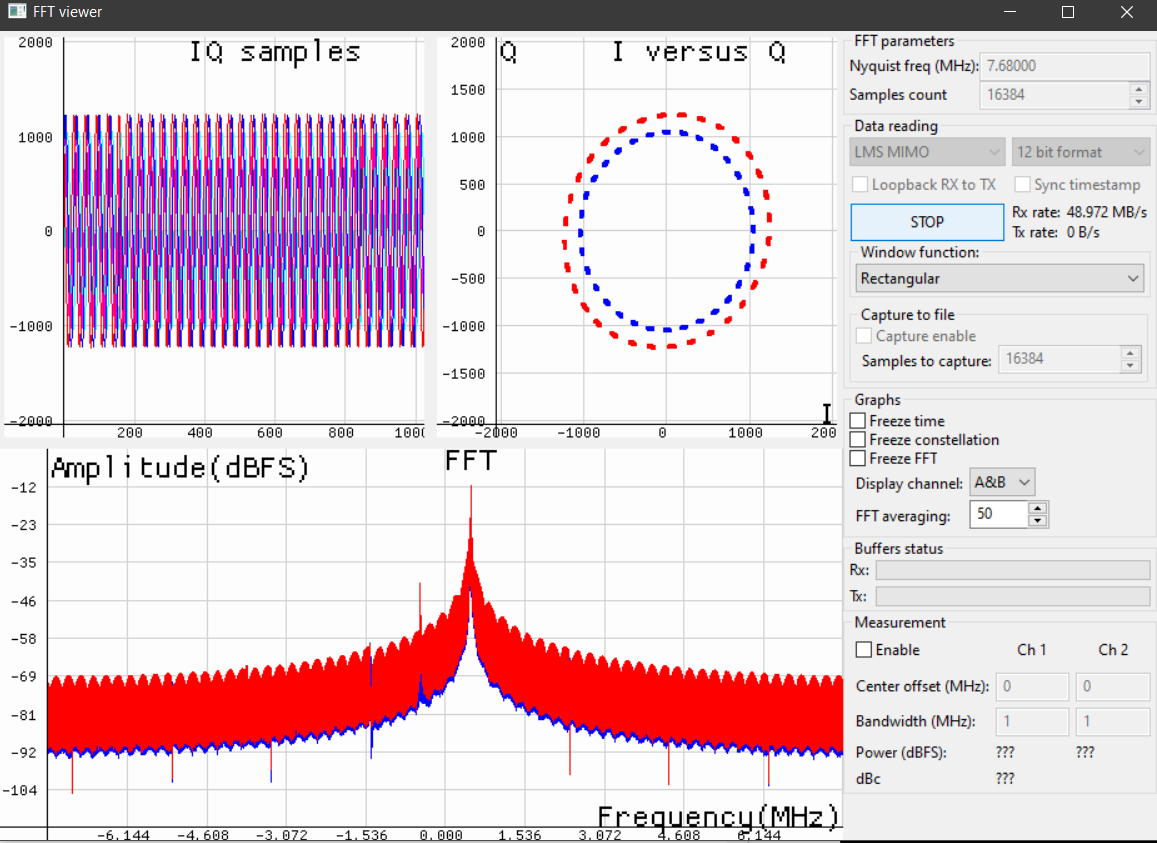

Did the self_test again, the channels doesn’t seem to match:

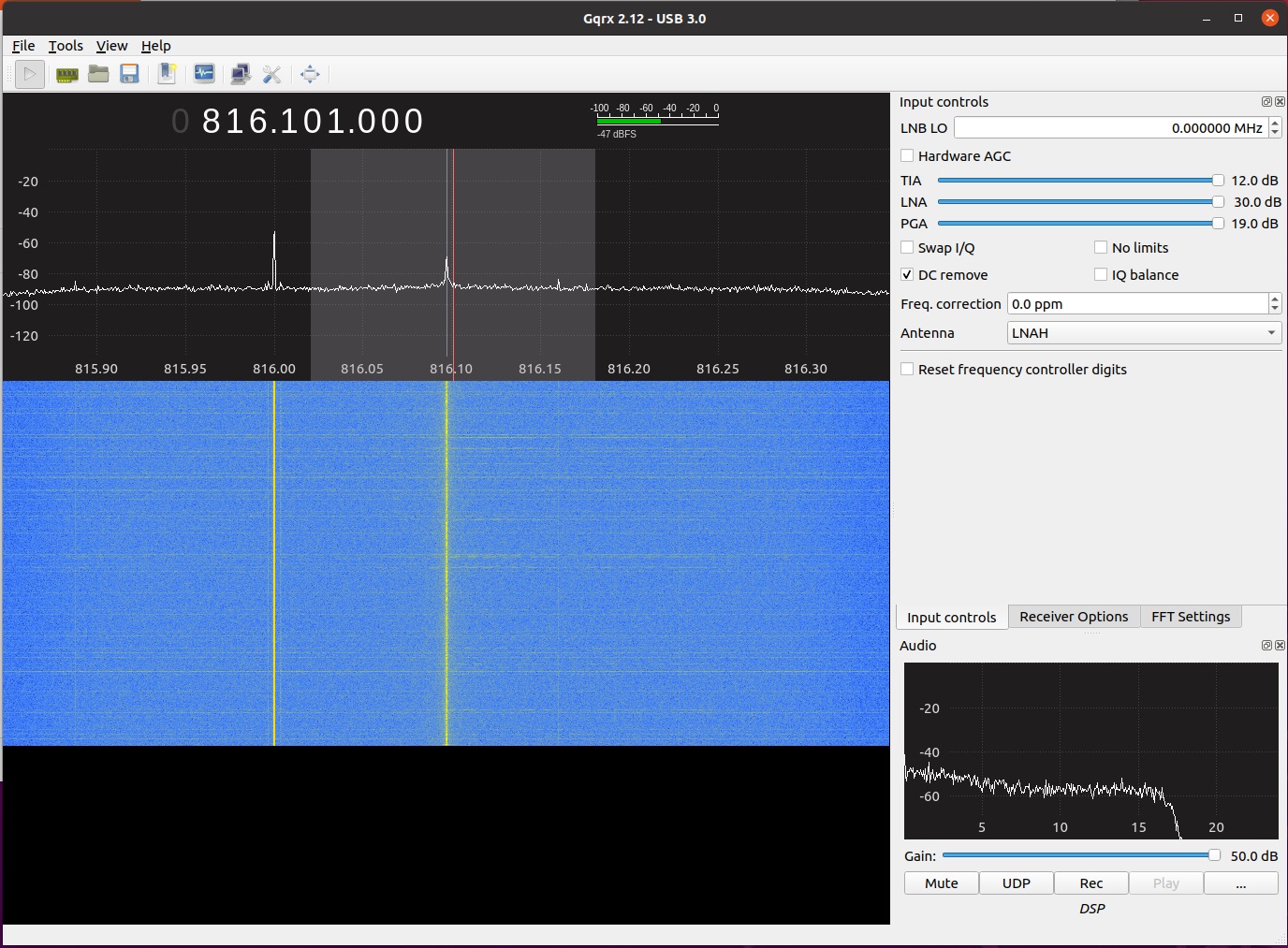

Another disturbing example. this is how it looks like when I tune to LTE basestations (the pink thing in the left corner caused by the B channel):

andrewback · 15 January 2021 11:35

@Zack, any suggestions?

Zack · 18 January 2021 06:45

Hi @THW,

The latest gateware version is 2.23. Update it to the latest and try.

THW · 18 January 2021 12:15

Hi Zack,

Already tried that, no change.

THW · 28 January 2021 19:44

I would appreciate your help, there is still a problem and I have tried everything you have offered so far.

Zack · 29 January 2021 08:36

Hi @THW,

Would suggest to test using HDSDR:
https://wiki.myriadrf.org/LimeSDR_ExtIO_Plugin_for_HDSDR
The plugin is made be our team and tested with LimeSDR-USB board. This will let us know if there are configuration problems.

THW · 29 January 2021 17:51

Hi Zack,

Well, the signal is still weak (I did a comparison with RTL-SDR, see attached).
Also, I found out the hardware is very sensitive with or without my aluminum case (please find the descriptions within the attached screenshots):

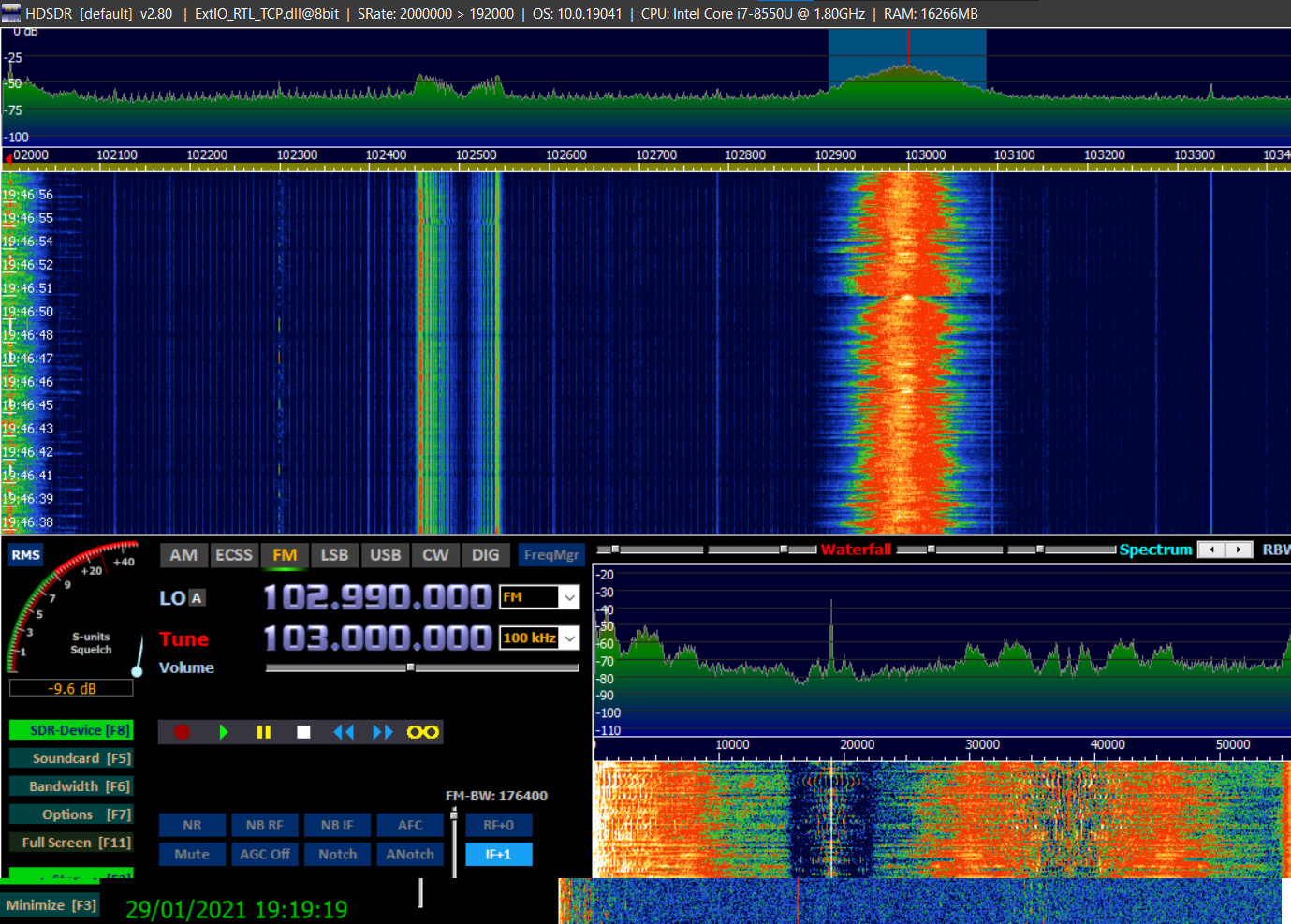

RTL-SDR (for comparison):

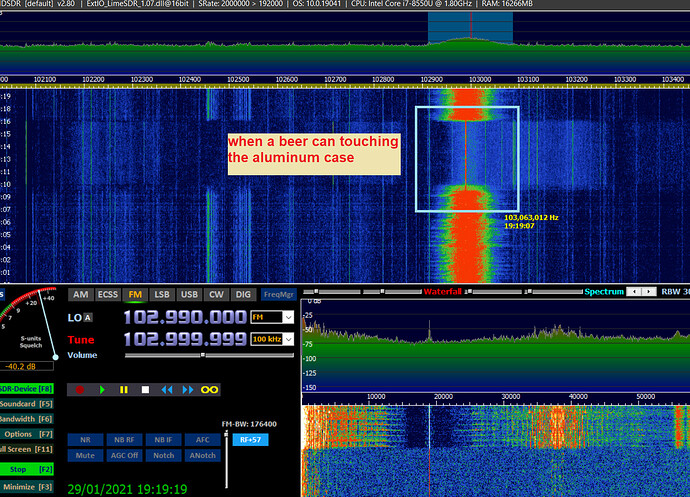

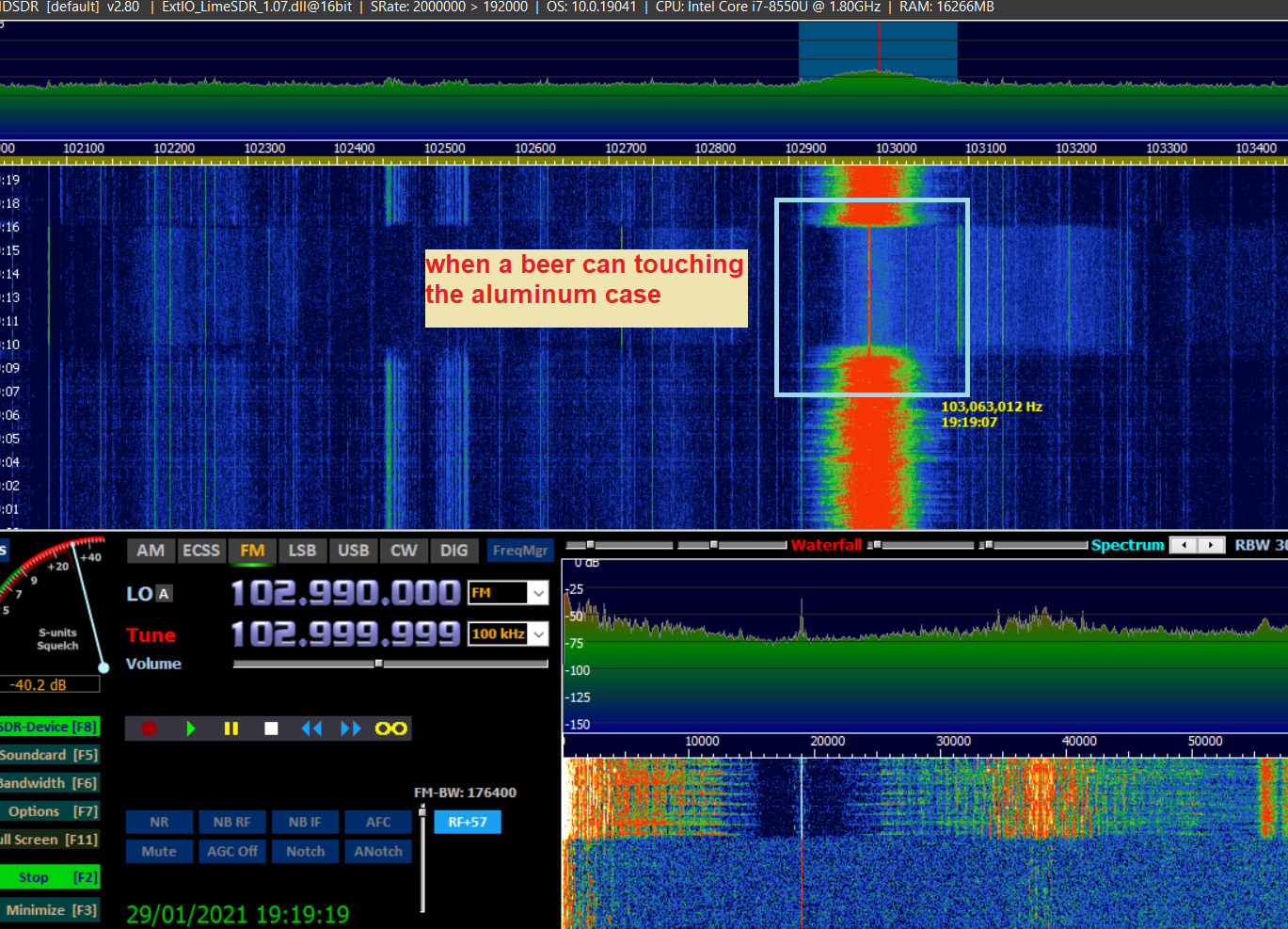

LimeSDR USB:

THW · 15 February 2021 20:02

I’m pretty sure it’s a faulty board and not a software issue.

Zack · 23 February 2021 07:31

Hi @THW,

Could you please share a photo of your setup.

THW · 23 February 2021 10:21

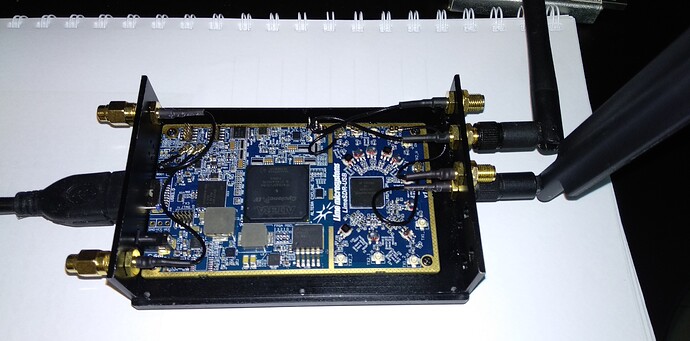

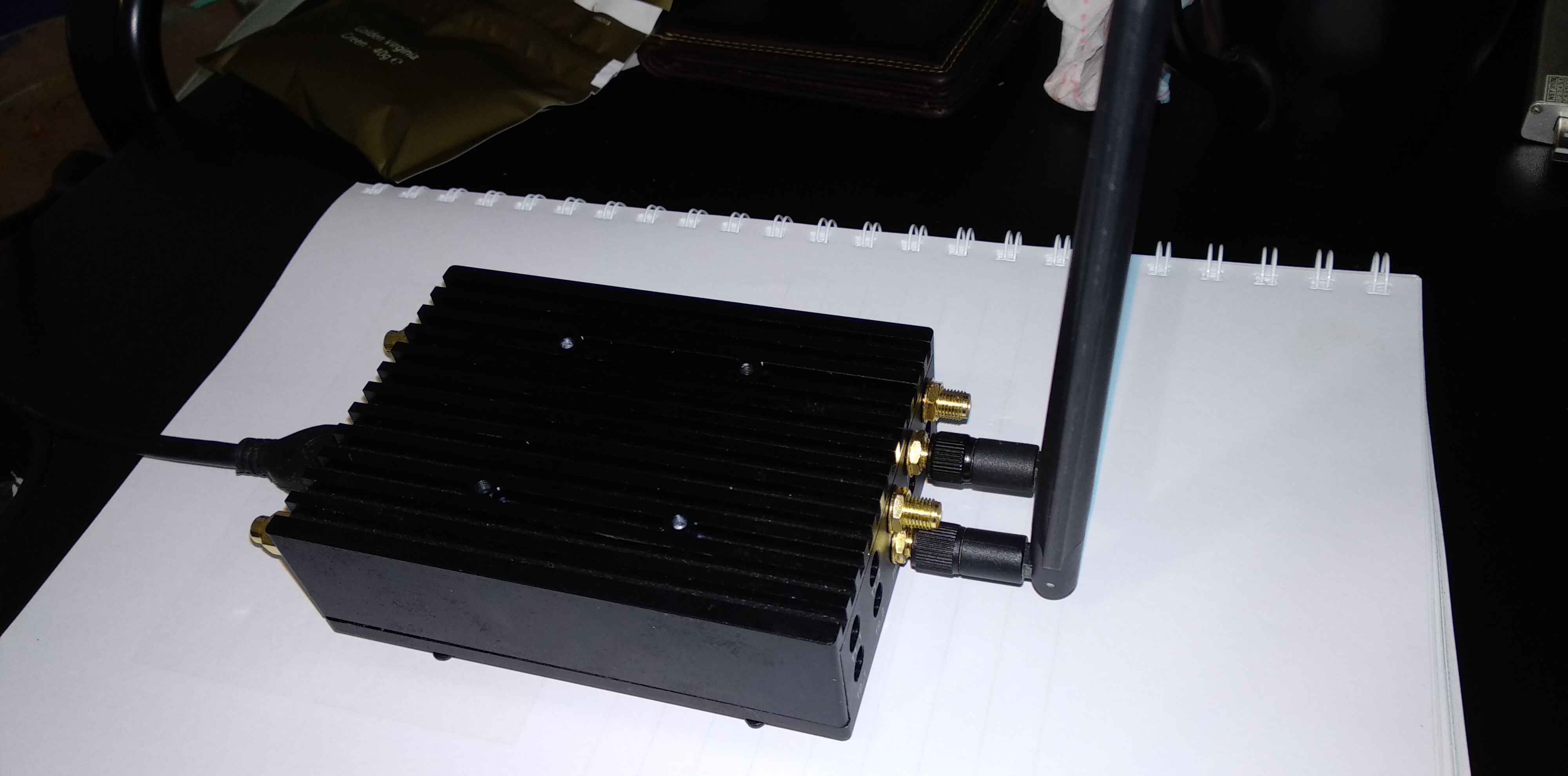

Hi Zack,

Zack · 23 February 2021 11:00

Hi @THW,

Would suggest to change U.FL cables and check.
Could you share register ini file too.

THW · 23 February 2021 16:14

I changed multiple times.

.ini file:

[file_info]
type=lms7002m_minimal_config
version=1
[lms7002_registers_a]
0x0020=0xFFFD
0x0021=0x0E9F
0x0022=0x07DF
0x0023=0x5559
0x0024=0xE4E4
0x0025=0x0101
0x0026=0x0101
0x0027=0xE4E4
0x0028=0x0101
0x0029=0x0101
0x002A=0x0086
0x002B=0x0010
0x002C=0xFFFF
0x002D=0xFFFF
0x002E=0x0000
0x002F=0x3841
0x0081=0x0000
0x0082=0x800B
0x0084=0x0400
0x0085=0x0001
0x0086=0x4905
0x0087=0x0400
0x0088=0x0780
0x0089=0x0020
0x008A=0x0514
0x008B=0x1F00
0x008C=0x067B
0x0092=0x0001
0x0093=0x0000
0x0094=0x0000
0x0095=0x0000
0x0096=0x0000
0x0097=0x0000
0x0098=0x0000
0x0099=0x6565
0x009A=0x658C
0x009B=0x6565
0x009C=0x658C
0x009D=0x6565
0x009E=0x658C
0x009F=0x658C
0x00A0=0x6565
0x00A1=0x6565
0x00A2=0x6565
0x00A3=0x6565
0x00A4=0x6565
0x00A5=0x6565
0x00A6=0x0001
0x00A7=0x6565
0x00A8=0x0000
0x00A9=0x8000
0x00AA=0x0000
0x00AB=0x0040
0x00AC=0x2000
0x00AD=0x03FF
0x00AE=0x0000
0x0100=0x3409
0x0101=0x7800
0x0102=0x3180
0x0103=0x0A12
0x0104=0x0088
0x0105=0x0007
0x0106=0x318C
0x0107=0x318C
0x0108=0x958C
0x0109=0x61C1
0x010A=0x104C
0x010B=0x0000
0x010C=0x88FD
0x010D=0x009E
0x010E=0x2040
0x010F=0x318C
0x0110=0x0994
0x0111=0x0083
0x0112=0xC0E6
0x0113=0x03C3
0x0114=0x008D
0x0115=0x0009
0x0116=0x8180
0x0117=0x280C
0x0118=0x018C
0x0119=0x18CB
0x011A=0x2E02
0x011C=0xAD43
0x011D=0x0400
0x011E=0x0780
0x011F=0x3640
0x0120=0xB980
0x0121=0x8404
0x0122=0x0514
0x0123=0x067B
0x0124=0x0000
0x0125=0x9400
0x0126=0x12FF
0x0200=0x0081
0x0201=0x07FF
0x0202=0x07FF
0x0203=0x0000
0x0204=0x0000
0x0205=0x0000
0x0206=0x0000
0x0207=0x0000
0x0208=0x0000
0x0209=0x0000
0x020A=0x0080
0x020B=0x4000
0x020C=0x0000
0x0240=0x0020
0x0241=0x0000
0x0242=0x0000
0x0243=0x0000
0x0244=0x0000
0x0245=0x0000
0x0246=0x0000
0x0247=0x0000
0x0248=0x0000
0x0249=0x0000
0x024A=0x0000
0x024B=0x0000
0x024C=0x0000
0x024D=0x0000
0x024E=0x0000
0x024F=0x0000
0x0250=0x0000
0x0251=0x0000
0x0252=0x0000
0x0253=0x0000
0x0254=0x0000
0x0255=0x0000
0x0256=0x0000
0x0257=0x0000
0x0258=0x0000
0x0259=0x0000
0x025A=0x0000
0x025B=0x0000
0x025C=0x0000
0x025D=0x0000
0x025E=0x0000
0x025F=0x0000
0x0260=0x0000
0x0261=0x0000
0x0280=0xF6E9
0x0281=0xE728
0x0282=0xE918
0x0283=0xBF8D
0x0284=0x5751
0x0285=0x6B1D
0x0286=0x9ACC
0x0287=0x5446
0x0288=0x1D77
0x0289=0xCF9D
0x028A=0x5B83
0x028B=0x8263
0x028C=0x98C2
0x028D=0xF71C
0x028E=0xA6E6
0x028F=0x9D2D
0x0290=0x711C
0x0291=0x180F
0x0292=0x9AED
0x0293=0x654A
0x0294=0x76F8
0x0295=0xBEBD
0x0296=0x2E04
0x0297=0x4008
0x0298=0x0DD1
0x0299=0x4200
0x029A=0x6952
0x029B=0x08AA
0x029C=0x2F3C
0x029D=0x8783
0x029E=0x284A
0x029F=0xE255
0x02A0=0x9852
0x02A1=0x4254
0x02A2=0x006E
0x02A3=0x46E6
0x02A4=0x074C
0x02A5=0xA8E2
0x02A6=0x64B6
0x02A7=0x4416
0x02C0=0x4D7A
0x02C1=0x9346
0x02C2=0x1E54
0x02C3=0x0D82
0x02C4=0x37B0
0x02C5=0x3E9E
0x02C6=0x8E68
0x02C7=0x2E33
0x02C8=0xEE6C
0x02C9=0x9B4C
0x02CA=0x48AA
0x02CB=0x0800
0x02CC=0x18EA
0x02CD=0xEABC
0x02CE=0x857C
0x02CF=0xC9C0
0x02D0=0xDE00
0x02D1=0x4C3D
0x02D2=0x37BD
0x02D3=0x8387
0x02D4=0x7389
0x02D5=0x021B
0x02D6=0x56E5
0x02D7=0xDC68
0x02D8=0x4CBE
0x02D9=0x5D99
0x02DA=0x09B0
0x02DB=0x10A2
0x02DC=0x07EA
0x02DD=0x1A0C
0x02DE=0x5508
0x02DF=0xC1B3
0x02E0=0xDC2C
0x02E1=0x8564
0x02E2=0x904C
0x02E3=0x2914
0x02E4=0xD937
0x02E5=0xEF37
0x02E6=0x0CD0
0x02E7=0x28FB
0x0300=0xC174
0x0301=0x727A
0x0302=0x0CBF
0x0303=0xE99C
0x0304=0xB821
0x0305=0x85E4
0x0306=0x05CD
0x0307=0x4D6B
0x0308=0x01C6
0x0309=0xEECE
0x030A=0xDCA6
0x030B=0x8F59
0x030C=0xB408
0x030D=0x71DF
0x030E=0x3C0E
0x030F=0xBA72
0x0310=0xD101
0x0311=0x677A
0x0312=0x13B9
0x0313=0xD6CA
0x0314=0x03FA
0x0315=0x260C
0x0316=0x8E7F
0x0317=0x16AD
0x0318=0xABEE
0x0319=0x91B2
0x031A=0xA783
0x031B=0x2194
0x031C=0xC34A
0x031D=0xC393
0x031E=0x2779
0x031F=0x88EE
0x0320=0x81E0
0x0321=0xADD1
0x0322=0x1201
0x0323=0x33C2
0x0324=0x1611
0x0325=0x6650
0x0326=0xD66F
0x0327=0x3E61
0x0340=0xDF93
0x0341=0x4874
0x0342=0xA770
0x0343=0x883D
0x0344=0xC89F
0x0345=0xDF3B
0x0346=0x7898
0x0347=0xF990
0x0348=0xC862
0x0349=0x069A
0x034A=0x8AC4
0x034B=0xC32C
0x034C=0xA256
0x034D=0x7365
0x034E=0xEC75
0x034F=0x301A
0x0350=0x7F76
0x0351=0x495B
0x0352=0x5ECA
0x0353=0xD93F
0x0354=0xF1CF
0x0355=0x79AD
0x0356=0x9583
0x0357=0x2C49
0x0358=0x7F67
0x0359=0x8C00
0x035A=0x009C
0x035B=0x415B
0x035C=0xE0F3
0x035D=0x746D
0x035E=0xFFB2
0x035F=0x1EBE
0x0360=0xA894
0x0361=0xCB42
0x0362=0x1470
0x0363=0x807A
0x0364=0x7DCF
0x0365=0x7391
0x0366=0x8EAF
0x0367=0x0880
0x0380=0x133A
0x0381=0x1514
0x0382=0x0BCC
0x0383=0xFAE0
0x0384=0x3A7A
0x0385=0x755C
0x0386=0x5479
0x0387=0x57FB
0x0388=0x97B0
0x0389=0xD931
0x038A=0xF946
0x038B=0xE692
0x038C=0x12AE
0x038D=0xB1A6
0x038E=0x7BB3
0x038F=0x8F3F
0x0390=0xACC4
0x0391=0x9E8D
0x0392=0xE770
0x0393=0x1B75
0x0394=0x277E
0x0395=0x4F39
0x0396=0x5C4F
0x0397=0x1388
0x0398=0xC7B3
0x0399=0x1680
0x039A=0xC844
0x039B=0x1510
0x039C=0xDE5B
0x039D=0x7916
0x039E=0x4E20
0x039F=0xA1C5
0x03A0=0x1857
0x03A1=0xD803
0x03A2=0xB422
0x03A3=0x2221
0x03A4=0x98C6
0x03A5=0x5866
0x03A6=0xFADA
0x03A7=0xC4C5
0x0400=0x0081
0x0401=0x07FF
0x0402=0x07FF
0x0403=0x0000
0x0404=0x0000
0x0405=0x0000
0x0406=0x0000
0x0407=0x0000
0x0408=0x0000
0x0409=0x0000
0x040A=0x0000
0x040B=0x0000
0x040C=0x0000
0x040D=0x0000
0x040E=0x0000
0x040F=0x0000
0x0440=0x0020
0x0441=0x0000
0x0442=0x0000
0x0443=0x0000
0x0444=0x0000
0x0445=0x0000
0x0446=0x0000
0x0447=0x0000
0x0448=0x0000
0x0449=0x0000
0x044A=0x0000
0x044B=0x0000
0x044C=0x0000
0x044D=0x0000
0x044E=0x0000
0x044F=0x0000
0x0450=0x0000
0x0451=0x0000
0x0452=0x0000
0x0453=0x0000
0x0454=0x0000
0x0455=0x0000
0x0456=0x0000
0x0457=0x0000
0x0458=0x0000
0x0459=0x0000
0x045A=0x0000
0x045B=0x0000
0x045C=0x0000
0x045D=0x0000
0x045E=0x0000
0x045F=0x0000
0x0460=0x0000
0x0461=0x0000
0x0480=0x83B0
0x0481=0x23CD
0x0482=0xA5C2
0x0483=0x410A
0x0484=0x582C
0x0485=0x58BE
0x0486=0x905D
0x0487=0xF641
0x0488=0x000A
0x0489=0x8039
0x048A=0xD004
0x048B=0x0220
0x048C=0xDAA4
0x048D=0xADEC
0x048E=0x0257
0x048F=0x461C
0x0490=0x50B9
0x0491=0xEB44
0x0492=0x2564
0x0493=0x4EA2
0x0494=0xCAEE
0x0495=0x2D05
0x0496=0x9843
0x0497=0xE8C4
0x0498=0x526B
0x0499=0x01A0
0x049A=0xA874
0x049B=0x460D
0x049C=0xF846
0x049D=0x6530
0x049E=0xC0AB
0x049F=0x5744
0x04A0=0x7E9E
0x04A1=0x5277
0x04A2=0xC4F0
0x04A3=0xDE88
0x04A4=0x52F9
0x04A5=0x062E
0x04A6=0xCACA
0x04A7=0xB658
0x04C0=0xEC81
0x04C1=0x8795
0x04C2=0x1DC9
0x04C3=0xA0A0
0x04C4=0x18F2
0x04C5=0xB9A6
0x04C6=0x2543
0x04C7=0x5875
0x04C8=0x308F
0x04C9=0x7318
0x04CA=0xA48E
0x04CB=0xAE00
0x04CC=0x030B
0x04CD=0x048B
0x04CE=0xD517
0x04CF=0x7D61
0x04D0=0x53D8
0x04D1=0xA3F5
0x04D2=0x2D43
0x04D3=0x186A
0x04D4=0x18BF
0x04D5=0xD82F
0x04D6=0xE18A
0x04D7=0xB2A1
0x04D8=0x0C6A
0x04D9=0x468C
0x04DA=0x46C8
0x04DB=0xE422
0x04DC=0x5018
0x04DD=0xE2BB
0x04DE=0x2635
0x04DF=0x0588
0x04E0=0x4483
0x04E1=0x8296
0x04E2=0x58E5
0x04E3=0x84D8
0x04E4=0x02D5
0x04E5=0x1F08
0x04E6=0x1C13
0x04E7=0x9922
0x0500=0xAF7F
0x0501=0xC6EC
0x0502=0x9813
0x0503=0x458A
0x0504=0x3943
0x0505=0xB0C6
0x0506=0x4497
0x0507=0x248F
0x0508=0xD273
0x0509=0x3776
0x050A=0xB433
0x050B=0xB132
0x050C=0x62D6
0x050D=0x8A57
0x050E=0xD40A
0x050F=0x8433
0x0510=0xDCE4
0x0511=0xB72C
0x0512=0x0E1C
0x0513=0x90EE
0x0514=0x45E4
0x0515=0xF6B9
0x0516=0x0D8B
0x0517=0xC1CE
0x0518=0xFD36
0x0519=0xAE1A
0x051A=0x3437
0x051B=0x4267
0x051C=0xE77D
0x051D=0x1AD3
0x051E=0xFC91
0x051F=0xDDCA
0x0520=0xA903
0x0521=0x60D7
0x0522=0x9A1A
0x0523=0x0B12
0x0524=0x5482
0x0525=0x9824
0x0526=0xDCF5
0x0527=0x195C
0x0540=0x2230
0x0541=0xD62B
0x0542=0x153A
0x0543=0x3CCC
0x0544=0xB988
0x0545=0x4625
0x0546=0x8788
0x0547=0x64ED
0x0548=0xCAA6
0x0549=0x06B2
0x054A=0x0911
0x054B=0x1614
0x054C=0x1653
0x054D=0x7388
0x054E=0x6AB3
0x054F=0xF687
0x0550=0x04BB
0x0551=0x745C
0x0552=0x8E08
0x0553=0x06EE
0x0554=0x285A
0x0555=0x1191
0x0556=0xCDA0
0x0557=0x44D7
0x0558=0x1385
0x0559=0xF979
0x055A=0x925C
0x055B=0xC616
0x055C=0x9472
0x055D=0x1000
0x055E=0x3AA9
0x055F=0xA62E
0x0560=0x5097
0x0561=0xD702
0x0562=0x5221
0x0563=0xD948
0x0564=0x9131
0x0565=0x5AC2
0x0566=0x6503
0x0567=0x4A2A
0x0580=0x8CDC
0x0581=0xE272
0x0582=0x38A9
0x0583=0x00B8
0x0584=0xC828
0x0585=0x5FBB
0x0586=0x5214
0x0587=0x23C7
0x0588=0x7C16
0x0589=0xCB82
0x058A=0x237D
0x058B=0x9387
0x058C=0x3CAA
0x058D=0x3AEE
0x058E=0x9ADC
0x058F=0x4D14
0x0590=0x0011
0x0591=0xC064
0x0592=0x8F79
0x0593=0x14AA
0x0594=0x239D
0x0595=0x1300
0x0596=0xBE13
0x0597=0xC67A
0x0598=0x075A
0x0599=0x06CA
0x059A=0x6534
0x059B=0xCC91
0x059C=0xA4B5
0x059D=0x4866
0x059E=0x3859
0x059F=0x6169
0x05A0=0xD0A4
0x05A1=0x3F39
0x05A2=0x8ADA
0x05A3=0x0966
0x05A4=0x36B2
0x05A5=0x1203
0x05A6=0x7019
0x05A7=0x0139
0x05C0=0x00FF
0x05C1=0x0000
0x05C2=0x0000
0x05C3=0x4000
0x05C4=0x4000
0x05C5=0x4000
0x05C6=0x4000
0x05C7=0x4000
0x05C8=0x4000
0x05C9=0x4000
0x05CA=0x4000
0x05CB=0x1F0F
0x05CC=0x0000
0x0600=0x0F01
0x0601=0x0000
0x0602=0x2000
0x0603=0x0000
0x0604=0x0000
0x0605=0x0000
0x0606=0x0000
0x0640=0x00A1
0x0641=0x2040
[lms7002_registers_b]
0x0100=0x3409
0x0101=0x7800
0x0102=0x3180
0x0103=0x0A12
0x0104=0x0088
0x0105=0x0007
0x0106=0x318C
0x0107=0x318C
0x0108=0x958C
0x0109=0x61C1
0x010A=0x104C
0x010B=0x0000
0x010C=0x88FD
0x010D=0x009E
0x010E=0x2040
0x010F=0x318C
0x0110=0x0994
0x0111=0x0083
0x0112=0xC0E6
0x0113=0x03C3
0x0114=0x008D
0x0115=0x0009
0x0116=0x8180
0x0117=0x280C
0x0118=0x018C
0x0119=0x18CB
0x011A=0x2E02
0x011C=0xAD43
0x011D=0x0400
0x011E=0x0780
0x011F=0x3640
0x0120=0xB980
0x0121=0x8404
0x0122=0x0514
0x0123=0x067B
0x0124=0x0000
0x0125=0x9400
0x0126=0x12FF
0x0200=0x0081
0x0201=0x07FF
0x0202=0x07FF
0x0203=0x0000
0x0204=0x0000
0x0205=0x0000
0x0206=0x0000
0x0207=0x0000
0x0208=0x0000
0x0209=0x0000
0x020A=0x0080
0x020B=0x4000
0x020C=0x0000
0x0240=0x0020
0x0241=0x0000
0x0242=0x0000
0x0243=0x0000
0x0244=0x0000
0x0245=0x0000
0x0246=0x0000
0x0247=0x0000
0x0248=0x0000
0x0249=0x0000
0x024A=0x0000
0x024B=0x0000
0x024C=0x0000
0x024D=0x0000
0x024E=0x0000
0x024F=0x0000
0x0250=0x0000
0x0251=0x0000
0x0252=0x0000
0x0253=0x0000
0x0254=0x0000
0x0255=0x0000
0x0256=0x0000
0x0257=0x0000
0x0258=0x0000
0x0259=0x0000
0x025A=0x0000
0x025B=0x0000
0x025C=0x0000
0x025D=0x0000
0x025E=0x0000
0x025F=0x0000
0x0260=0x0000
0x0261=0x0000
0x0280=0x0000
0x0281=0x0000
0x0282=0x0000
0x0283=0x0000
0x0284=0x0000
0x0285=0x0000
0x0286=0x0000
0x0287=0x0000
0x0288=0x0000
0x0289=0x0000
0x028A=0x0000
0x028B=0x0000
0x028C=0x0000
0x028D=0x0000
0x028E=0x0000
0x028F=0x0000
0x0290=0x0000
0x0291=0x0000
0x0292=0x0000
0x0293=0x0000
0x0294=0x0000
0x0295=0x0000
0x0296=0x0000
0x0297=0x0000
0x0298=0x0000
0x0299=0x0000
0x029A=0x0000
0x029B=0x0000
0x029C=0x0000
0x029D=0x0000
0x029E=0x0000
0x029F=0x0000
0x02A0=0x0000
0x02A1=0x0000
0x02A2=0x0000
0x02A3=0x0000
0x02A4=0x0000
0x02A5=0x0000
0x02A6=0x0000
0x02A7=0x0000
0x02C0=0x0000
0x02C1=0x0000
0x02C2=0x0000
0x02C3=0x0000
0x02C4=0x0000
0x02C5=0x0000
0x02C6=0x0000
0x02C7=0x0000
0x02C8=0x0000
0x02C9=0x0000
0x02CA=0x0000
0x02CB=0x0000
0x02CC=0x0000
0x02CD=0x0000
0x02CE=0x0000
0x02CF=0x0000
0x02D0=0x0000
0x02D1=0x0000
0x02D2=0x0000
0x02D3=0x0000
0x02D4=0x0000
0x02D5=0x0000
0x02D6=0x0000
0x02D7=0x0000
0x02D8=0x0000
0x02D9=0x0000
0x02DA=0x0000
0x02DB=0x0000
0x02DC=0x0000
0x02DD=0x0000
0x02DE=0x0000
0x02DF=0x0000
0x02E0=0x0000
0x02E1=0x0000
0x02E2=0x0000
0x02E3=0x0000
0x02E4=0x0000
0x02E5=0x0000
0x02E6=0x0000
0x02E7=0x0000
0x0300=0x0000
0x0301=0x0000
0x0302=0x0000
0x0303=0x0000
0x0304=0x0000
0x0305=0x0000
0x0306=0x0000
0x0307=0x0000
0x0308=0x0000
0x0309=0x0000
0x030A=0x0000
0x030B=0x0000
0x030C=0x0000
0x030D=0x0000
0x030E=0x0000
0x030F=0x0000
0x0310=0x0000
0x0311=0x0000
0x0312=0x0000
0x0313=0x0000
0x0314=0x0000
0x0315=0x0000
0x0316=0x0000
0x0317=0x0000
0x0318=0x0000
0x0319=0x0000
0x031A=0x0000
0x031B=0x0000
0x031C=0x0000
0x031D=0x0000
0x031E=0x0000
0x031F=0x0000
0x0320=0x0000
0x0321=0x0000
0x0322=0x0000
0x0323=0x0000
0x0324=0x0000
0x0325=0x0000
0x0326=0x0000
0x0327=0x0000
0x0340=0x0000
0x0341=0x0000
0x0342=0x0000
0x0343=0x0000
0x0344=0x0000
0x0345=0x0000
0x0346=0x0000
0x0347=0x0000
0x0348=0x0000
0x0349=0x0000
0x034A=0x0000
0x034B=0x0000
0x034C=0x0000
0x034D=0x0000
0x034E=0x0000
0x034F=0x0000
0x0350=0x0000
0x0351=0x0000
0x0352=0x0000
0x0353=0x0000
0x0354=0x0000
0x0355=0x0000
0x0356=0x0000
0x0357=0x0000
0x0358=0x0000
0x0359=0x0000
0x035A=0x0000
0x035B=0x0000
0x035C=0x0000
0x035D=0x0000
0x035E=0x0000
0x035F=0x0000
0x0360=0x0000
0x0361=0x0000
0x0362=0x0000
0x0363=0x0000
0x0364=0x0000
0x0365=0x0000
0x0366=0x0000
0x0367=0x0000
0x0380=0x0000
0x0381=0x0000
0x0382=0x0000
0x0383=0x0000
0x0384=0x0000
0x0385=0x0000
0x0386=0x0000
0x0387=0x0000
0x0388=0x0000
0x0389=0x0000
0x038A=0x0000
0x038B=0x0000
0x038C=0x0000
0x038D=0x0000
0x038E=0x0000
0x038F=0x0000
0x0390=0x0000
0x0391=0x0000
0x0392=0x0000
0x0393=0x0000
0x0394=0x0000
0x0395=0x0000
0x0396=0x0000
0x0397=0x0000
0x0398=0x0000
0x0399=0x0000
0x039A=0x0000
0x039B=0x0000
0x039C=0x0000
0x039D=0x0000
0x039E=0x0000
0x039F=0x0000
0x03A0=0x0000
0x03A1=0x0000
0x03A2=0x0000
0x03A3=0x0000
0x03A4=0x0000
0x03A5=0x0000
0x03A6=0x0000
0x03A7=0x0000
0x0400=0x0081
0x0401=0x07FF
0x0402=0x07FF
0x0403=0x0000
0x0404=0x0000
0x0405=0x0000
0x0406=0x0000
0x0407=0x0000
0x0408=0x0000
0x0409=0x0000
0x040A=0x0000
0x040B=0x0000
0x040C=0x0000
0x040D=0x0000
0x040E=0x0000
0x040F=0x0000
0x0440=0x0000
0x0441=0x0000
0x0442=0x0000
0x0443=0x0000
0x0444=0x0000
0x0445=0x0000
0x0446=0x0000
0x0447=0x0000
0x0448=0x0000
0x0449=0x0000
0x044A=0x0000
0x044B=0x0000
0x044C=0x0000
0x044D=0x0000
0x044E=0x0000
0x044F=0x0000
0x0450=0x0000
0x0451=0x0000
0x0452=0x0000
0x0453=0x0000
0x0454=0x0000
0x0455=0x0000
0x0456=0x0000
0x0457=0x0000
0x0458=0x0000
0x0459=0x0000
0x045A=0x0000
0x045B=0x0000
0x045C=0x0000
0x045D=0x0000
0x045E=0x0000
0x045F=0x0000
0x0460=0x0000
0x0461=0x0000
0x0480=0x0000
0x0481=0x0000
0x0482=0x0000
0x0483=0x0000
0x0484=0x0000
0x0485=0x0000
0x0486=0x0000
0x0487=0x0000
0x0488=0x0000
0x0489=0x0000
0x048A=0x0000
0x048B=0x0000
0x048C=0x0000
0x048D=0x0000
0x048E=0x0000
0x048F=0x0000
0x0490=0x0000
0x0491=0x0000
0x0492=0x0000
0x0493=0x0000
0x0494=0x0000
0x0495=0x0000
0x0496=0x0000
0x0497=0x0000
0x0498=0x0000
0x0499=0x0000
0x049A=0x0000
0x049B=0x0000
0x049C=0x0000
0x049D=0x0000
0x049E=0x0000
0x049F=0x0000
0x04A0=0x0000
0x04A1=0x0000
0x04A2=0x0000
0x04A3=0x0000
0x04A4=0x0000
0x04A5=0x0000
0x04A6=0x0000
0x04A7=0x0000
0x04C0=0x0000
0x04C1=0x0000
0x04C2=0x0000
0x04C3=0x0000
0x04C4=0x0000
0x04C5=0x0000
0x04C6=0x0000
0x04C7=0x0000
0x04C8=0x0000
0x04C9=0x0000
0x04CA=0x0000
0x04CB=0x0000
0x04CC=0x0000
0x04CD=0x0000
0x04CE=0x0000
0x04CF=0x0000
0x04D0=0x0000
0x04D1=0x0000
0x04D2=0x0000
0x04D3=0x0000
0x04D4=0x0000
0x04D5=0x0000
0x04D6=0x0000
0x04D7=0x0000
0x04D8=0x0000
0x04D9=0x0000
0x04DA=0x0000
0x04DB=0x0000
0x04DC=0x0000
0x04DD=0x0000
0x04DE=0x0000
0x04DF=0x0000
0x04E0=0x0000
0x04E1=0x0000
0x04E2=0x0000
0x04E3=0x0000
0x04E4=0x0000
0x04E5=0x0000
0x04E6=0x0000
0x04E7=0x0000
0x0500=0x0000
0x0501=0x0000
0x0502=0x0000
0x0503=0x0000
0x0504=0x0000
0x0505=0x0000
0x0506=0x0000
0x0507=0x0000
0x0508=0x0000
0x0509=0x0000
0x050A=0x0000
0x050B=0x0000
0x050C=0x0000
0x050D=0x0000
0x050E=0x0000
0x050F=0x0000
0x0510=0x0000
0x0511=0x0000
0x0512=0x0000
0x0513=0x0000
0x0514=0x0000
0x0515=0x0000
0x0516=0x0000
0x0517=0x0000
0x0518=0x0000
0x0519=0x0000
0x051A=0x0000
0x051B=0x0000
0x051C=0x0000
0x051D=0x0000
0x051E=0x0000
0x051F=0x0000
0x0520=0x0000
0x0521=0x0000
0x0522=0x0000
0x0523=0x0000
0x0524=0x0000
0x0525=0x0000
0x0526=0x0000
0x0527=0x0000
0x0540=0x0000
0x0541=0x0000
0x0542=0x0000
0x0543=0x0000
0x0544=0x0000
0x0545=0x0000
0x0546=0x0000
0x0547=0x0000
0x0548=0x0000
0x0549=0x0000
0x054A=0x0000
0x054B=0x0000
0x054C=0x0000
0x054D=0x0000
0x054E=0x0000
0x054F=0x0000
0x0550=0x0000
0x0551=0x0000
0x0552=0x0000
0x0553=0x0000
0x0554=0x0000
0x0555=0x0000
0x0556=0x0000
0x0557=0x0000
0x0558=0x0000
0x0559=0x0000
0x055A=0x0000
0x055B=0x0000
0x055C=0x0000
0x055D=0x0000
0x055E=0x0000
0x055F=0x0000
0x0560=0x0000
0x0561=0x0000
0x0562=0x0000
0x0563=0x0000
0x0564=0x0000
0x0565=0x0000
0x0566=0x0000
0x0567=0x0000
0x0580=0x0000
0x0581=0x0000
0x0582=0x0000
0x0583=0x0000
0x0584=0x0000
0x0585=0x0000
0x0586=0x0000
0x0587=0x0000
0x0588=0x0000
0x0589=0x0000
0x058A=0x0000
0x058B=0x0000
0x058C=0x0000
0x058D=0x0000
0x058E=0x0000
0x058F=0x0000
0x0590=0x0000
0x0591=0x0000
0x0592=0x0000
0x0593=0x0000
0x0594=0x0000
0x0595=0x0000
0x0596=0x0000
0x0597=0x0000
0x0598=0x0000
0x0599=0x0000
0x059A=0x0000
0x059B=0x0000
0x059C=0x0000
0x059D=0x0000
0x059E=0x0000
0x059F=0x0000
0x05A0=0x0000
0x05A1=0x0000
0x05A2=0x0000
0x05A3=0x0000
0x05A4=0x0000
0x05A5=0x0000
0x05A6=0x0000
0x05A7=0x0000
0x0600=0x0F01
0x0601=0x0000
0x0602=0x2000
0x0603=0x0000
0x0604=0x0000
0x0605=0x0000
0x0606=0x0000
0x0640=0x00A1
0x0641=0x2040
[reference_clocks]
sxt_ref_clk_mhz=30.72
sxr_ref_clk_mhz=30.72
