RX signal weak

Projects Lime Suite
1

I got the following result, but I don;t know why it cannot draw the point on the gnuplot and the results in rx file are all zero.

image1170×872 20.3 KB

image1084×863 22.8 KB

image1111×837 18.4 KB

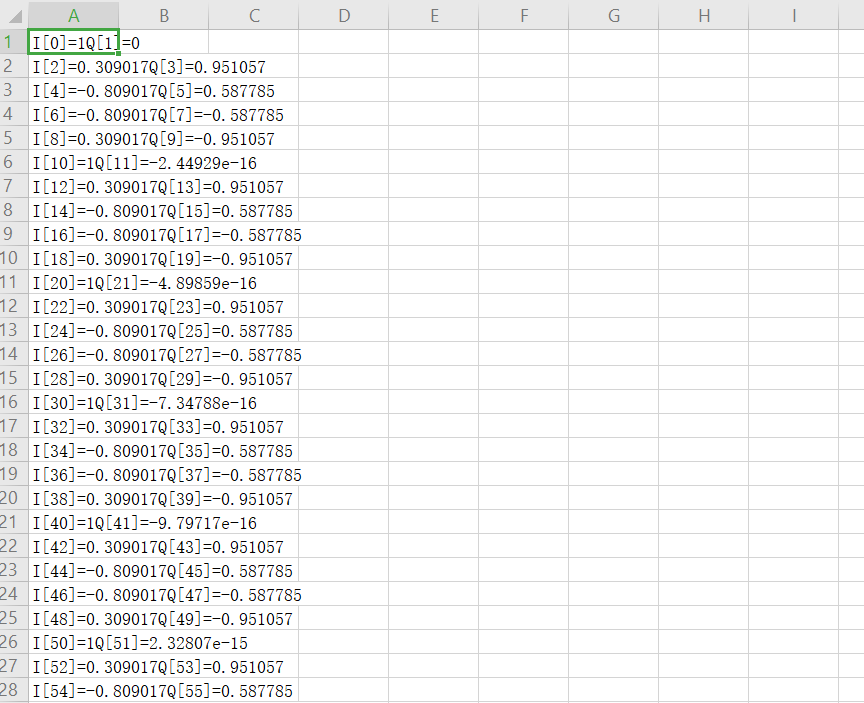

tx_file
image864×703 20 KB

rx_file
image591×680 17.1 KB

gnuplot
QQ图片20210226000548
QQ图片202102260005481226×723 59.5 KB

2

Never work with GNU plot but you have defined it differently: rx_stream.dataFmt (12bit) and buffer (rx_buffer as 32bit float). TX definition is identical.

2 Likes
3

Thanks. I just begin to learn SDR. I have received data on the gnuplot as followings.
TX gnuplot
RX gnuplot
But the point in TX has phase shift, and points in RX are still around zero. (Problem nan has been solved.)

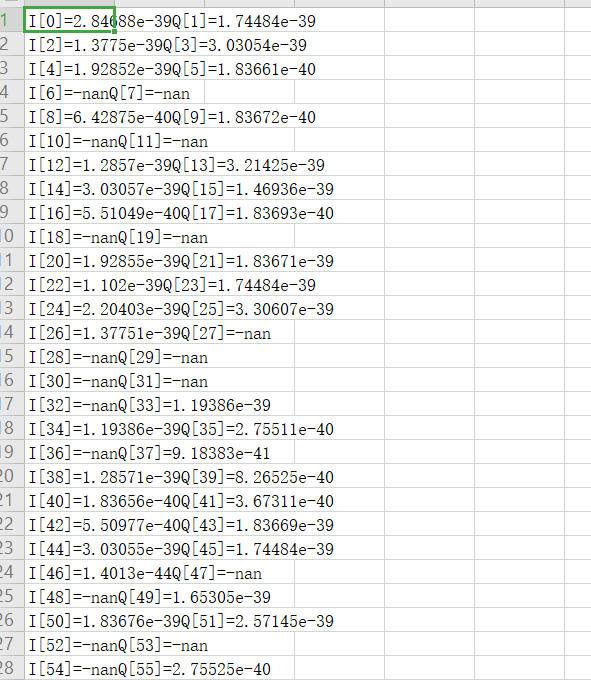

RX file
