LimeSDR Lime Suite GUI user manual not available - To configure different freq & etc.,

Projects LimeSDR
1

Hi,

We want to evaluate the LMS7002M for our application for that we have procured and verified your LimeSDR board with the self test file available in Lime Suite application (Windows). But we can able to proceed further to configure different frequencies, ADC sampling frequencies, FIR filter bandwidth, etc., using your Lime Suite GUI there are many user configurations are required(20 software tabs available) and there is no detailed user manual is available to explain how to configure different frequency and bandwidth, etc.,

Request you share the Lime suite application user manual document, So that we can proceed the configurations and evaluation of LMS7002M for our final application requirements.

Attached the Each software Tabs for your Lime Suite GUI and its requires many configurations which is inter-related to each configurations.

Regards,
Sugumar K
India.
Phone No: +91-44-4741 4124
Mobile : +91- 8608619462

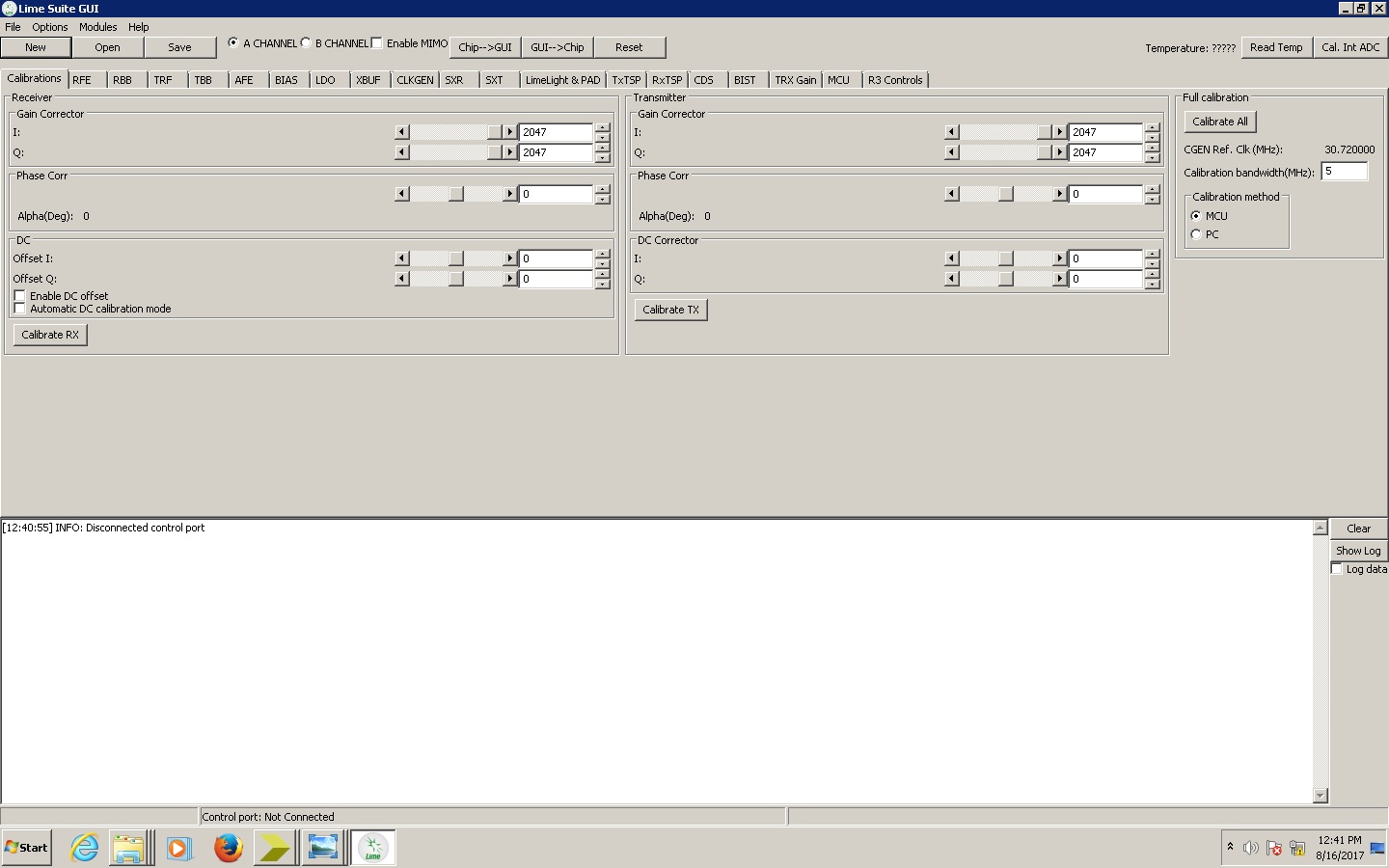

Lime Suite GUI
Lime Suite GUI.jpg1440Ă—900 148 KB

2

@sugumar.krishnasamy

3

Hi,

I have referred and downloaded your manual “LMS7002M-Quick-Starter-Manual-EVB7-2-2r0.pdf” document which is not for “Lime Suite GUI” and the board shown in this user manual is also not “LimeSDR”.

I need the User manual to configure “LimeSDR” from your application “Lime Suite GUI” which screenshot is attached in the above post.

Please check and provide the Lime Suite GUI user manual to evaluate the LMS7002M completely for our application requirement.

Regards,
Sugumar K

4

There is no manual. We all wish there were. The file LMS7002M_Data_Sheet_v3.1r00.pdf explains what each of the settings means. Just not to do with it.

5

Is there any Preliminary version of user manual (Not released) of Lime Suite GUI available?

If any Please share the user manual we will proceed with that one. In the above mentioned datasheet Limesuite GUI details are not explained(what are all the configuration to be done for freq, BW, I/Q correction in Lime suite).

For our SDR application we need to validate many parameters of your Transceiver chip: LMS7002M and without that it will delay our Transceiver evaluation time which will affect our SDR program.

Regards,
Sugumar K

6

Hello,

We are working on it right now. It will be available through this resource shortly (Documentation section):
https://wiki.myriadrf.org/LimeSDR-USB

2 Likes
7

Hello,

Check this resource for documentation:
https://wiki.myriadrf.org/LimeSDR-USB#Documentation

Third link in the list describes how to use LimeSDR-USB board with LimeSuiteGUI software. Hope this helps.

8

Thanks for your “Getting Started with LimeSDR-USB and LimeSuiteGUI” and we will try to proceed with this getting started guide.

But this is only a “getting started guide” to operate LimeSDR, But we need to evaluate all the features/specs at different frequencies of LMS7002M IC which requires multiple configurations in all the GUI options (Register access) to verify at which configuration device is giving better results for our military SDR requirement.

For that detailed User manual to verify the LimeSDR board using LimeSuiteGUI will be helpful.

As you said in the previous post, May I know what could be the tentative date to release the “LimeSuiteGUI user manual”?

We are awaiting for your detailed manual for our detailed evaluation of your chip.

Regards,
Sugumar K
