Your send and receive a file may work with the new routines - try it. As far as TCP packets that depends upon what version of gnuradio you are using - some versions do not work with TCP/IP.
It does! Thank you received file sink and source no problem now, the original application was suppose to be with TCP but never got that working. Is there any alternative to use TCP packets?
If you are using gnuradio 3.8, you can use my TCP/IP routines. I have not yet updated them for gnuradio 3.9 or 3.10 - they broke everything with gnuradio 3.9 the idiots !
The TCP/IP routines comes with the "Impulse Source " stuff.
Using gnuradio and the Impulse Source to Show Filter Frequency Response
I have not be able to get the gnuradio TCP/IP routines to work - they are written using the QT5 routines and do not seem to work using the standard TCP/IP routines. They do not work in server mode - I have not had a chance to try them in client mode.
The UDP routines were working, but I think that they have broken them also.
Thank you for the insight, just some follow up questions. When my receiver outputs a PWM looking waveform does that always mean my Tx signal is too low?
I am just playing around with my Gains for both the Tx and Rx and what makes the condition to receive a duplicated Tx signal? I am still having a hardtime trying to find another combination of the multiply constant and the Gains for both the Rx and Tx
A PWM looking receive waveform would most likely mean that the Tx signal is too high.
Getting the gains with the bladeRF was not problem, but when I tried the HackRF One it was really picky and worked with only a small range of values.
You should try your TCP/IP routines with the gnuardio, may be they are likely different from mine and they may work. I could set their server listening on a port, but when I tried to connect - it connected to the address, but the gnuradio server never accept the connection on the port.
I see, yeah I can see the gains being picky.
I went ahead and tried out the TCP/IP routine and it looks I am receiving it, however I need to send it multiple times to receive the data, is there anything I can do about this?
What are you sending it with ? TCP/IP has a guarantee on data transfer - so the only likely reason that you would need to send it many times is that one of the programs is putting the data into a buffer and it is not transferring the data until the buffer is full.
Try sending a lot of data and see if that works.
With a TCP Source as a Client. I see, ill further look into the buffer, where would I alter the buffer on the tagged stream or the tcp client
The original version of the tagged stream is doing 50 character blocks. The TCP Source - do not know
ah I understand, ill play around with it and report back
I have been moving files. The OFDM routines have a problem - they loose about 10 percent of the data.
If I directly read a file and sent it or if I bring in a file using the TCP routines it looses the data.
If I directly read a file and use the completely internal loop back - it still loose about 10 percent of the blocks.
Are you seeing this ?
Hmmm, I mean I did see some packets drop from sending from a file but I am not sure if thats due to the lack of optimization from the transmitter and receiver end. When it comes to the TCP I cant never get the first bytes being sent, I always have to repeat the message a couple of times but then again I am not sure if thats me with an incorrect settings somewhere.
I finally got gnuradio do transfer files correctly it only loses the last 2 bytes. I transferred files from a Windows 10 machine with a BladeRF to macOS Monterey with a RTL-stick. The grcs -
Beautiful Thank you, ill give it a look. Thank you so much for the on-going efforts!
Did this end up working for sending single packets @Cleo. I am trying to do the same and I only get successful reception when the data is repeatedly transmitted at a high enough rate.

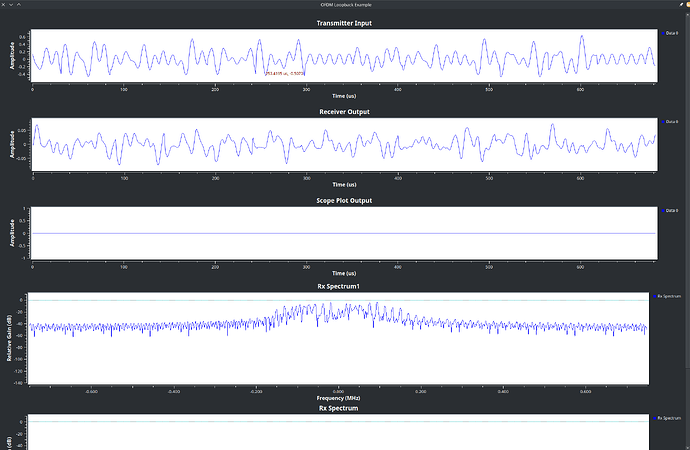

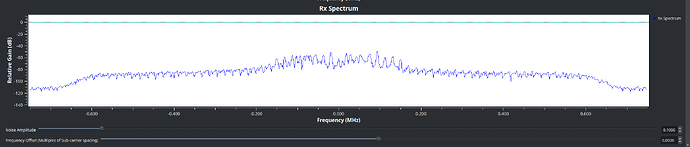

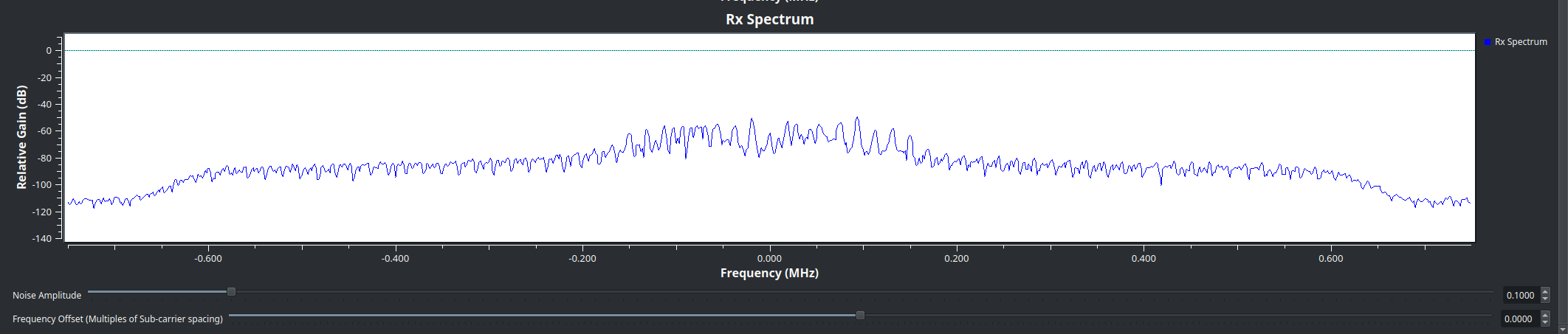

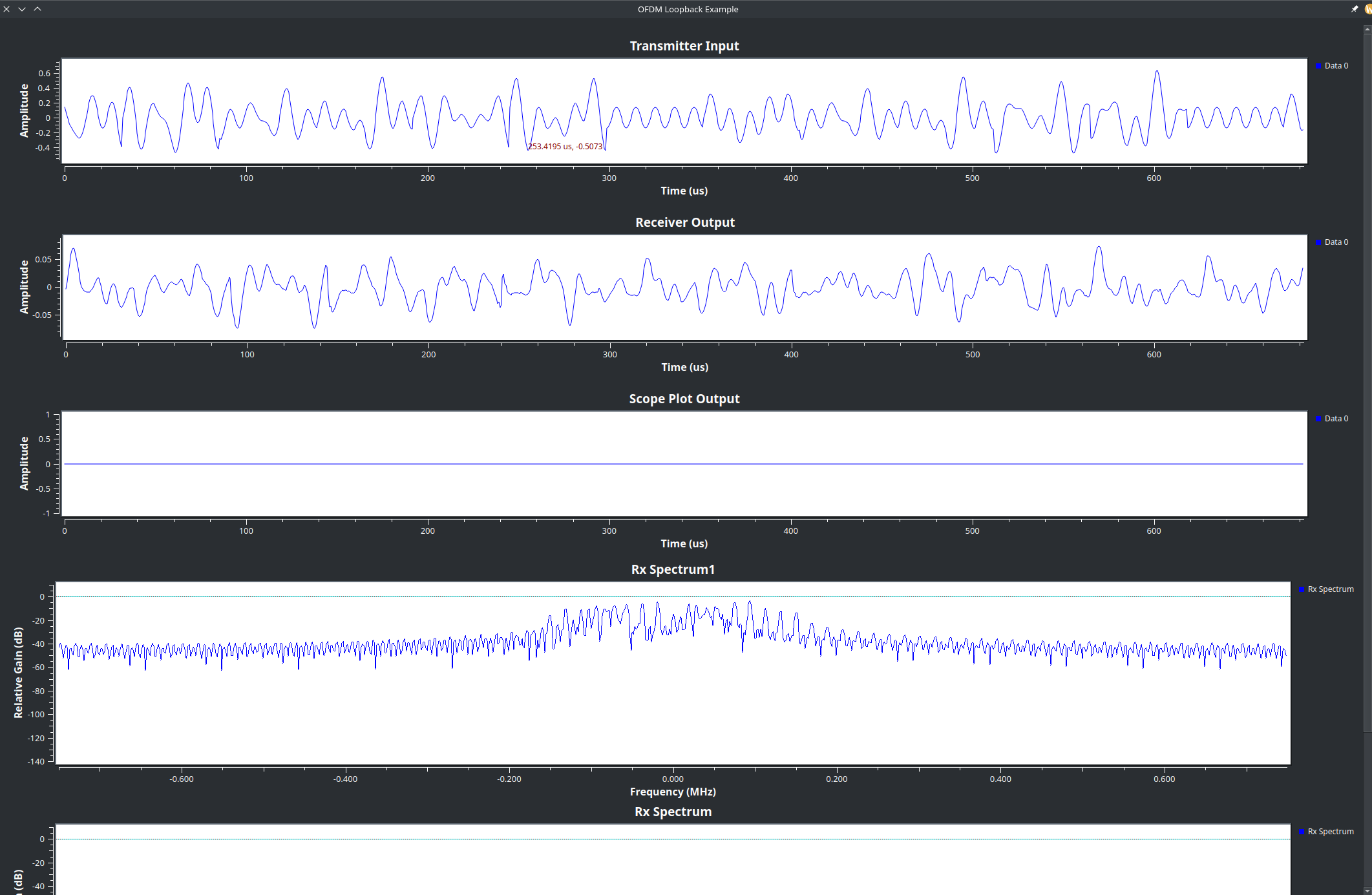

I’ve combined your examples for windows and mac to be run between my two bladeRF’s and I can’t seem to get any successful reception of packets. Here are my graphs:
My grc file for reference:
options:
parameters:
alias: ''
author: ''
catch_exceptions: 'True'
comment: ''
copyright: ''
description: Transmit a pre-defined signal (a complex sine) as OFDM packets.
gen_linking: dynamic
generate_options: qt_gui
generator_class_name: PythonQtGuiGenerator
generator_module: gnuradio.grc.workflows.python_qt_gui
hier_block_src_path: '.:'
id: ofdm_loopback_example
max_nouts: '0'
output_language: python
qt_qss_theme: ''
realtime_scheduling: ''
run: 'True'
run_command: '{python} -u {filename}'
thread_safe_setters: ''
title: OFDM Loopback Example
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [8, 12.0]
rotation: 0
state: enabled
blocks:
- name: fft_len
id: variable
parameters:
comment: ''
value: '64'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [408, 20.0]
rotation: 0
state: enabled
- name: freq_offset
id: variable_qtgui_range
parameters:
comment: ''
gui_hint: ''
label: Frequency Offset (Multiples of Sub-carrier spacing)
min_len: '200'
orient: QtCore.Qt.Horizontal
rangeType: float
start: '-3'
step: '.01'
stop: '3'
value: '0'
widget: counter_slider
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [936, 968.0]
rotation: 0
state: enabled
- name: frequency
id: variable
parameters:
comment: ''
value: 1240e6
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [768, 12.0]
rotation: 0
state: enabled
- name: len_tag_key
id: variable
parameters:
comment: ''
value: '"packet_len"'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [288, 20.0]
rotation: 0
state: enabled
- name: noise_voltage
id: variable_qtgui_range
parameters:
comment: ''
gui_hint: ''
label: Noise Amplitude
min_len: '200'
orient: QtCore.Qt.Horizontal
rangeType: float
start: '0'
step: '.01'
stop: '1'
value: '0.1'
widget: counter_slider
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1176, 968.0]
rotation: 0
state: enabled
- name: packet_len
id: variable
parameters:
comment: ''
value: '63'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [200, 20.0]
rotation: 0
state: enabled
- name: rf_rate
id: variable
parameters:
comment: ''
value: '1500000'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [640, 20.0]
rotation: 0
state: enabled
- name: samp_rate
id: variable
parameters:
comment: ''
value: '1500000'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [504, 12.0]
rotation: 0
state: enabled
- name: blocks_complex_to_float_0_0
id: blocks_complex_to_float
parameters:
affinity: ''
alias: ''
comment: ''
maxoutbuf: '0'
minoutbuf: '0'
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [464, 584.0]
rotation: 0
state: enabled
- name: blocks_complex_to_float_0_1
id: blocks_complex_to_float
parameters:
affinity: ''
alias: ''
comment: ''
maxoutbuf: '0'
minoutbuf: '0'
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1024, 280.0]
rotation: 0
state: enabled
- name: blocks_file_sink_0
id: blocks_file_sink
parameters:
affinity: ''
alias: ''
append: 'False'
comment: ''
file: /home/arhum/Documents/receiveFile.txt
type: byte
unbuffered: 'True'
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [776, 1040.0]
rotation: 0
state: enabled
- name: blocks_file_source_0
id: blocks_file_source
parameters:
affinity: ''
alias: ''
begin_tag: pmt.PMT_NIL
comment: ''
file: /home/arhum/Documents/modem/irisinterface.py
length: '0'
maxoutbuf: '0'
minoutbuf: '0'
offset: '0'
repeat: 'True'
type: byte
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [144, 296.0]
rotation: 0
state: disabled
- name: blocks_multiply_const_vxx_0_0
id: blocks_multiply_const_vxx
parameters:
affinity: ''
alias: ''
comment: ''
const: '0.05'
maxoutbuf: '0'
minoutbuf: '0'
type: complex
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [896, 120.0]
rotation: 0
state: enabled
- name: blocks_stream_to_tagged_stream_0
id: blocks_stream_to_tagged_stream
parameters:
affinity: ''
alias: ''
comment: ''
len_tag_key: len_tag_key
maxoutbuf: '0'
minoutbuf: '0'
packet_len: packet_len
type: byte
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [376, 192.0]
rotation: 0
state: enabled
- name: blocks_tag_debug_0
id: blocks_tag_debug
parameters:
affinity: ''
alias: ''
comment: ''
display: 'True'
filter: '""'
name: Rx Packets
num_inputs: '1'
type: byte
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [808, 928.0]
rotation: 0
state: enabled
- name: blocks_uchar_to_float_0
id: blocks_uchar_to_float
parameters:
affinity: ''
alias: ''
comment: ''
maxoutbuf: '0'
minoutbuf: '0'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [928, 856.0]
rotation: 0
state: enabled
- name: blocks_vector_source_x_0
id: blocks_vector_source_x
parameters:
affinity: ''
alias: ''
comment: ''
maxoutbuf: '0'
minoutbuf: '0'
repeat: 'True'
tags: ()
type: byte
vector: range(packet_len)
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [208, 152.0]
rotation: 0
state: enabled
- name: digital_ofdm_rx_0
id: digital_ofdm_rx
parameters:
affinity: ''
alias: ''
comment: ''
cp_len: fft_len//4
fft_len: fft_len
header_mod: '"BPSK"'
log: 'False'
maxoutbuf: '0'
minoutbuf: '0'
occupied_carriers: ((-4,-3,-2,-1,1,2,3,4),)
packet_len_key: '"rx_len"'
payload_mod: '"QPSK"'
pilot_carriers: ((-6,-5,5,6),)
pilot_symbols: ((-1,1,-1,1),)
scramble_bits: 'False'
sync_word1: None
sync_word2: None
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [544, 756.0]
rotation: 0
state: enabled
- name: digital_ofdm_tx_0
id: digital_ofdm_tx
parameters:
affinity: ''
alias: ''
comment: ''
cp_len: fft_len//4
fft_len: fft_len
header_mod: '"BPSK"'
log: 'False'
maxoutbuf: '0'
minoutbuf: '0'
occupied_carriers: ((-4,-3,-2,-1,1,2,3,4),)
packet_len_key: len_tag_key
payload_mod: '"QPSK"'
pilot_carriers: ((-6,-5,5,6),)
pilot_symbols: ((-1,1,-1,1),)
rolloff: '0'
scramble_bits: 'False'
sync_word1: None
sync_word2: None
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [632, 140.0]
rotation: 0
state: enabled
- name: osmosdr_sink_0
id: osmosdr_sink
parameters:
affinity: ''
alias: ''
ant0: ''
ant1: ''
ant10: ''
ant11: ''
ant12: ''
ant13: ''
ant14: ''
ant15: ''
ant16: ''
ant17: ''
ant18: ''
ant19: ''
ant2: ''
ant20: ''
ant21: ''
ant22: ''
ant23: ''
ant24: ''
ant25: ''
ant26: ''
ant27: ''
ant28: ''
ant29: ''
ant3: ''
ant30: ''
ant31: ''
ant4: ''
ant5: ''
ant6: ''
ant7: ''
ant8: ''
ant9: ''
args: driver=bladerf,bladerf=1c2d4a5226594cfbbab03de10dbe4ee7,biastee=1
bb_gain0: '0'
bb_gain1: '20'
bb_gain10: '20'
bb_gain11: '20'
bb_gain12: '20'
bb_gain13: '20'
bb_gain14: '20'
bb_gain15: '20'
bb_gain16: '20'
bb_gain17: '20'
bb_gain18: '20'
bb_gain19: '20'
bb_gain2: '20'
bb_gain20: '20'
bb_gain21: '20'
bb_gain22: '20'
bb_gain23: '20'
bb_gain24: '20'
bb_gain25: '20'
bb_gain26: '20'
bb_gain27: '20'
bb_gain28: '20'
bb_gain29: '20'
bb_gain3: '20'
bb_gain30: '20'
bb_gain31: '20'
bb_gain4: '20'
bb_gain5: '20'
bb_gain6: '20'
bb_gain7: '20'
bb_gain8: '20'
bb_gain9: '20'
bw0: 1.5e6
bw1: '0'
bw10: '0'
bw11: '0'
bw12: '0'
bw13: '0'
bw14: '0'
bw15: '0'
bw16: '0'
bw17: '0'
bw18: '0'
bw19: '0'
bw2: '0'
bw20: '0'
bw21: '0'
bw22: '0'
bw23: '0'
bw24: '0'
bw25: '0'
bw26: '0'
bw27: '0'
bw28: '0'
bw29: '0'
bw3: '0'
bw30: '0'
bw31: '0'
bw4: '0'
bw5: '0'
bw6: '0'
bw7: '0'
bw8: '0'
bw9: '0'
clock_source0: ''
clock_source1: ''
clock_source2: ''
clock_source3: ''
clock_source4: ''
clock_source5: ''
clock_source6: ''
clock_source7: ''
comment: ''
corr0: '0'
corr1: '0'
corr10: '0'
corr11: '0'
corr12: '0'
corr13: '0'
corr14: '0'
corr15: '0'
corr16: '0'
corr17: '0'
corr18: '0'
corr19: '0'
corr2: '0'
corr20: '0'
corr21: '0'
corr22: '0'
corr23: '0'
corr24: '0'
corr25: '0'
corr26: '0'
corr27: '0'
corr28: '0'
corr29: '0'
corr3: '0'
corr30: '0'
corr31: '0'
corr4: '0'
corr5: '0'
corr6: '0'
corr7: '0'
corr8: '0'
corr9: '0'
freq0: frequency
freq1: 100e6
freq10: 100e6
freq11: 100e6
freq12: 100e6
freq13: 100e6
freq14: 100e6
freq15: 100e6
freq16: 100e6
freq17: 100e6
freq18: 100e6
freq19: 100e6
freq2: 100e6
freq20: 100e6
freq21: 100e6
freq22: 100e6
freq23: 100e6
freq24: 100e6
freq25: 100e6
freq26: 100e6
freq27: 100e6
freq28: 100e6
freq29: 100e6
freq3: 100e6
freq30: 100e6
freq31: 100e6
freq4: 100e6
freq5: 100e6
freq6: 100e6
freq7: 100e6
freq8: 100e6
freq9: 100e6
gain0: '49'
gain1: '10'
gain10: '10'
gain11: '10'
gain12: '10'
gain13: '10'
gain14: '10'
gain15: '10'
gain16: '10'
gain17: '10'
gain18: '10'
gain19: '10'
gain2: '10'
gain20: '10'
gain21: '10'
gain22: '10'
gain23: '10'
gain24: '10'
gain25: '10'
gain26: '10'
gain27: '10'
gain28: '10'
gain29: '10'
gain3: '10'
gain30: '10'
gain31: '10'
gain4: '10'
gain5: '10'
gain6: '10'
gain7: '10'
gain8: '10'
gain9: '10'
if_gain0: '0'
if_gain1: '20'
if_gain10: '20'
if_gain11: '20'
if_gain12: '20'
if_gain13: '20'
if_gain14: '20'
if_gain15: '20'
if_gain16: '20'
if_gain17: '20'
if_gain18: '20'
if_gain19: '20'
if_gain2: '20'
if_gain20: '20'
if_gain21: '20'
if_gain22: '20'
if_gain23: '20'
if_gain24: '20'
if_gain25: '20'
if_gain26: '20'
if_gain27: '20'
if_gain28: '20'
if_gain29: '20'
if_gain3: '20'
if_gain30: '20'
if_gain31: '20'
if_gain4: '20'
if_gain5: '20'
if_gain6: '20'
if_gain7: '20'
if_gain8: '20'
if_gain9: '20'
maxoutbuf: '0'
minoutbuf: '0'
nchan: '1'
num_mboards: '1'
sample_rate: rf_rate
sync: sync
time_source0: ''
time_source1: ''
time_source2: ''
time_source3: ''
time_source4: ''
time_source5: ''
time_source6: ''
time_source7: ''
type: fc32
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1120, 76.0]
rotation: 0
state: enabled
- name: osmosdr_source_0
id: osmosdr_source
parameters:
affinity: ''
alias: ''
ant0: ''
ant1: ''
ant10: ''
ant11: ''
ant12: ''
ant13: ''
ant14: ''
ant15: ''
ant16: ''
ant17: ''
ant18: ''
ant19: ''
ant2: ''
ant20: ''
ant21: ''
ant22: ''
ant23: ''
ant24: ''
ant25: ''
ant26: ''
ant27: ''
ant28: ''
ant29: ''
ant3: ''
ant30: ''
ant31: ''
ant4: ''
ant5: ''
ant6: ''
ant7: ''
ant8: ''
ant9: ''
args: bladerf=482d627847294c33baa62cce38a56831
bb_gain0: '20'
bb_gain1: '20'
bb_gain10: '20'
bb_gain11: '20'
bb_gain12: '20'
bb_gain13: '20'
bb_gain14: '20'
bb_gain15: '20'
bb_gain16: '20'
bb_gain17: '20'
bb_gain18: '20'
bb_gain19: '20'
bb_gain2: '20'
bb_gain20: '20'
bb_gain21: '20'
bb_gain22: '20'
bb_gain23: '20'
bb_gain24: '20'
bb_gain25: '20'
bb_gain26: '20'
bb_gain27: '20'
bb_gain28: '20'
bb_gain29: '20'
bb_gain3: '20'
bb_gain30: '20'
bb_gain31: '20'
bb_gain4: '20'
bb_gain5: '20'
bb_gain6: '20'
bb_gain7: '20'
bb_gain8: '20'
bb_gain9: '20'
bw0: 1.5e6
bw1: '0'
bw10: '0'
bw11: '0'
bw12: '0'
bw13: '0'
bw14: '0'
bw15: '0'
bw16: '0'
bw17: '0'
bw18: '0'
bw19: '0'
bw2: '0'
bw20: '0'
bw21: '0'
bw22: '0'
bw23: '0'
bw24: '0'
bw25: '0'
bw26: '0'
bw27: '0'
bw28: '0'
bw29: '0'
bw3: '0'
bw30: '0'
bw31: '0'
bw4: '0'
bw5: '0'
bw6: '0'
bw7: '0'
bw8: '0'
bw9: '0'
clock_source0: ''
clock_source1: ''
clock_source2: ''
clock_source3: ''
clock_source4: ''
clock_source5: ''
clock_source6: ''
clock_source7: ''
comment: ''
corr0: '0'
corr1: '0'
corr10: '0'
corr11: '0'
corr12: '0'
corr13: '0'
corr14: '0'
corr15: '0'
corr16: '0'
corr17: '0'
corr18: '0'
corr19: '0'
corr2: '0'
corr20: '0'
corr21: '0'
corr22: '0'
corr23: '0'
corr24: '0'
corr25: '0'
corr26: '0'
corr27: '0'
corr28: '0'
corr29: '0'
corr3: '0'
corr30: '0'
corr31: '0'
corr4: '0'
corr5: '0'
corr6: '0'
corr7: '0'
corr8: '0'
corr9: '0'
dc_offset_mode0: '0'
dc_offset_mode1: '0'
dc_offset_mode10: '0'
dc_offset_mode11: '0'
dc_offset_mode12: '0'
dc_offset_mode13: '0'
dc_offset_mode14: '0'
dc_offset_mode15: '0'
dc_offset_mode16: '0'
dc_offset_mode17: '0'
dc_offset_mode18: '0'
dc_offset_mode19: '0'
dc_offset_mode2: '0'
dc_offset_mode20: '0'
dc_offset_mode21: '0'
dc_offset_mode22: '0'
dc_offset_mode23: '0'
dc_offset_mode24: '0'
dc_offset_mode25: '0'
dc_offset_mode26: '0'
dc_offset_mode27: '0'
dc_offset_mode28: '0'
dc_offset_mode29: '0'
dc_offset_mode3: '0'
dc_offset_mode30: '0'
dc_offset_mode31: '0'
dc_offset_mode4: '0'
dc_offset_mode5: '0'
dc_offset_mode6: '0'
dc_offset_mode7: '0'
dc_offset_mode8: '0'
dc_offset_mode9: '0'
freq0: frequency
freq1: 100e6
freq10: 100e6
freq11: 100e6
freq12: 100e6
freq13: 100e6
freq14: 100e6
freq15: 100e6
freq16: 100e6
freq17: 100e6
freq18: 100e6
freq19: 100e6
freq2: 100e6
freq20: 100e6
freq21: 100e6
freq22: 100e6
freq23: 100e6
freq24: 100e6
freq25: 100e6
freq26: 100e6
freq27: 100e6
freq28: 100e6
freq29: 100e6
freq3: 100e6
freq30: 100e6
freq31: 100e6
freq4: 100e6
freq5: 100e6
freq6: 100e6
freq7: 100e6
freq8: 100e6
freq9: 100e6
gain0: '17'
gain1: '10'
gain10: '10'
gain11: '10'
gain12: '10'
gain13: '10'
gain14: '10'
gain15: '10'
gain16: '10'
gain17: '10'
gain18: '10'
gain19: '10'
gain2: '10'
gain20: '10'
gain21: '10'
gain22: '10'
gain23: '10'
gain24: '10'
gain25: '10'
gain26: '10'
gain27: '10'
gain28: '10'
gain29: '10'
gain3: '10'
gain30: '10'
gain31: '10'
gain4: '10'
gain5: '10'
gain6: '10'
gain7: '10'
gain8: '10'
gain9: '10'
gain_mode0: 'False'
gain_mode1: 'False'
gain_mode10: 'False'
gain_mode11: 'False'
gain_mode12: 'False'
gain_mode13: 'False'
gain_mode14: 'False'
gain_mode15: 'False'
gain_mode16: 'False'
gain_mode17: 'False'
gain_mode18: 'False'
gain_mode19: 'False'
gain_mode2: 'False'
gain_mode20: 'False'
gain_mode21: 'False'
gain_mode22: 'False'
gain_mode23: 'False'
gain_mode24: 'False'
gain_mode25: 'False'
gain_mode26: 'False'
gain_mode27: 'False'
gain_mode28: 'False'
gain_mode29: 'False'
gain_mode3: 'False'
gain_mode30: 'False'
gain_mode31: 'False'
gain_mode4: 'False'
gain_mode5: 'False'
gain_mode6: 'False'
gain_mode7: 'False'
gain_mode8: 'False'
gain_mode9: 'False'
if_gain0: '0'
if_gain1: '20'
if_gain10: '20'
if_gain11: '20'
if_gain12: '20'
if_gain13: '20'
if_gain14: '20'
if_gain15: '20'
if_gain16: '20'
if_gain17: '20'
if_gain18: '20'
if_gain19: '20'
if_gain2: '20'
if_gain20: '20'
if_gain21: '20'
if_gain22: '20'
if_gain23: '20'
if_gain24: '20'
if_gain25: '20'
if_gain26: '20'
if_gain27: '20'
if_gain28: '20'
if_gain29: '20'
if_gain3: '20'
if_gain30: '20'
if_gain31: '20'
if_gain4: '20'
if_gain5: '20'
if_gain6: '20'
if_gain7: '20'
if_gain8: '20'
if_gain9: '20'
iq_balance_mode0: '0'
iq_balance_mode1: '0'
iq_balance_mode10: '0'
iq_balance_mode11: '0'
iq_balance_mode12: '0'
iq_balance_mode13: '0'
iq_balance_mode14: '0'
iq_balance_mode15: '0'
iq_balance_mode16: '0'
iq_balance_mode17: '0'
iq_balance_mode18: '0'
iq_balance_mode19: '0'
iq_balance_mode2: '0'
iq_balance_mode20: '0'
iq_balance_mode21: '0'
iq_balance_mode22: '0'
iq_balance_mode23: '0'
iq_balance_mode24: '0'
iq_balance_mode25: '0'
iq_balance_mode26: '0'
iq_balance_mode27: '0'
iq_balance_mode28: '0'
iq_balance_mode29: '0'
iq_balance_mode3: '0'
iq_balance_mode30: '0'
iq_balance_mode31: '0'
iq_balance_mode4: '0'
iq_balance_mode5: '0'
iq_balance_mode6: '0'
iq_balance_mode7: '0'
iq_balance_mode8: '0'
iq_balance_mode9: '0'
maxoutbuf: '0'
minoutbuf: '0'
nchan: '1'
num_mboards: '1'
sample_rate: rf_rate
sync: sync
time_source0: ''
time_source1: ''
time_source2: ''
time_source3: ''
time_source4: ''
time_source5: ''
time_source6: ''
time_source7: ''
type: fc32
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [200, 604.0]
rotation: 0
state: enabled
- name: qtgui_freq_sink_x_0
id: qtgui_freq_sink_x
parameters:
affinity: ''
alias: ''
alpha1: '1.0'
alpha10: '1.0'
alpha2: '1.0'
alpha3: '1.0'
alpha4: '1.0'
alpha5: '1.0'
alpha6: '1.0'
alpha7: '1.0'
alpha8: '1.0'
alpha9: '1.0'
autoscale: 'False'
average: '0.2'
axislabels: 'True'
bw: 1.5e6
color1: '"blue"'
color10: '"dark blue"'
color2: '"red"'
color3: '"green"'
color4: '"black"'
color5: '"cyan"'
color6: '"magenta"'
color7: '"yellow"'
color8: '"dark red"'
color9: '"dark green"'
comment: ''
ctrlpanel: 'False'
fc: '0'
fftsize: '1024'
freqhalf: 'True'
grid: 'False'
gui_hint: ''
label: Relative Gain
label1: Rx Spectrum
label10: ''
label2: ''
label3: ''
label4: ''
label5: ''
label6: ''
label7: ''
label8: ''
label9: ''
legend: 'True'
maxoutbuf: '0'
minoutbuf: '0'
name: Rx Spectrum
nconnections: '1'
norm_window: 'False'
showports: 'True'
tr_chan: '0'
tr_level: '0.0'
tr_mode: qtgui.TRIG_MODE_FREE
tr_tag: '""'
type: complex
units: dB
update_time: '0.10'
width1: '1'
width10: '1'
width2: '1'
width3: '1'
width4: '1'
width5: '1'
width6: '1'
width7: '1'
width8: '1'
width9: '1'
wintype: window.WIN_BLACKMAN_hARRIS
ymax: '10'
ymin: '-140'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [456, 1000.0]
rotation: 0
state: enabled
- name: qtgui_freq_sink_x_0_0
id: qtgui_freq_sink_x
parameters:
affinity: ''
alias: ''
alpha1: '1.0'
alpha10: '1.0'
alpha2: '1.0'
alpha3: '1.0'
alpha4: '1.0'
alpha5: '1.0'
alpha6: '1.0'
alpha7: '1.0'
alpha8: '1.0'
alpha9: '1.0'
autoscale: 'False'
average: '1.0'
axislabels: 'True'
bw: samp_rate
color1: '"blue"'
color10: '"dark blue"'
color2: '"red"'
color3: '"green"'
color4: '"black"'
color5: '"cyan"'
color6: '"magenta"'
color7: '"yellow"'
color8: '"dark red"'
color9: '"dark green"'
comment: ''
ctrlpanel: 'False'
fc: '0'
fftsize: '1024'
freqhalf: 'True'
grid: 'False'
gui_hint: ''
label: Relative Gain
label1: Rx Spectrum
label10: ''
label2: ''
label3: ''
label4: ''
label5: ''
label6: ''
label7: ''
label8: ''
label9: ''
legend: 'True'
maxoutbuf: '0'
minoutbuf: '0'
name: Rx Spectrum1
nconnections: '1'
norm_window: 'False'
showports: 'True'
tr_chan: '0'
tr_level: '0.0'
tr_mode: qtgui.TRIG_MODE_FREE
tr_tag: '""'
type: complex
units: dB
update_time: '0.10'
width1: '1'
width10: '1'
width2: '1'
width3: '1'
width4: '1'
width5: '1'
width6: '1'
width7: '1'
width8: '1'
width9: '1'
wintype: window.WIN_BLACKMAN_hARRIS
ymax: '10'
ymin: '-140'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1008, 376.0]
rotation: 0
state: enabled
- name: qtgui_time_sink_x_0
id: qtgui_time_sink_x
parameters:
affinity: ''
alias: ''
alpha1: '1.0'
alpha10: '1.0'
alpha2: '1.0'
alpha3: '1.0'
alpha4: '1.0'
alpha5: '1.0'
alpha6: '1.0'
alpha7: '1.0'
alpha8: '1.0'
alpha9: '1.0'
autoscale: 'True'
axislabels: 'True'
color1: blue
color10: dark blue
color2: red
color3: green
color4: black
color5: cyan
color6: magenta
color7: yellow
color8: dark red
color9: dark green
comment: ''
ctrlpanel: 'False'
entags: 'True'
grid: 'False'
gui_hint: ''
label1: ''
label10: ''
label2: ''
label3: ''
label4: ''
label5: ''
label6: ''
label7: ''
label8: ''
label9: ''
legend: 'True'
marker1: '-1'
marker10: '-1'
marker2: '-1'
marker3: '-1'
marker4: '-1'
marker5: '-1'
marker6: '-1'
marker7: '-1'
marker8: '-1'
marker9: '-1'
name: Scope Plot Output
nconnections: '1'
size: '1024'
srate: samp_rate
stemplot: 'False'
style1: '1'
style10: '1'
style2: '1'
style3: '1'
style4: '1'
style5: '1'
style6: '1'
style7: '1'
style8: '1'
style9: '1'
tr_chan: '0'
tr_delay: '0'
tr_level: '0.0'
tr_mode: qtgui.TRIG_MODE_FREE
tr_slope: qtgui.TRIG_SLOPE_POS
tr_tag: '""'
type: float
update_time: '0.10'
width1: '1'
width10: '1'
width2: '1'
width3: '1'
width4: '1'
width5: '1'
width6: '1'
width7: '1'
width8: '1'
width9: '1'
ylabel: Amplitude
ymax: '1'
ymin: '-1'
yunit: '""'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1128, 856.0]
rotation: 0
state: enabled
- name: qtgui_time_sink_x_0_0
id: qtgui_time_sink_x
parameters:
affinity: ''
alias: ''
alpha1: '1.0'
alpha10: '1.0'
alpha2: '1.0'
alpha3: '1.0'
alpha4: '1.0'
alpha5: '1.0'
alpha6: '1.0'
alpha7: '1.0'
alpha8: '1.0'
alpha9: '1.0'
autoscale: 'True'
axislabels: 'True'
color1: blue
color10: dark blue
color2: red
color3: green
color4: black
color5: cyan
color6: magenta
color7: yellow
color8: dark red
color9: dark green
comment: ''
ctrlpanel: 'False'
entags: 'True'
grid: 'False'
gui_hint: ''
label1: ''
label10: ''
label2: ''
label3: ''
label4: ''
label5: ''
label6: ''
label7: ''
label8: ''
label9: ''
legend: 'True'
marker1: '-1'
marker10: '-1'
marker2: '-1'
marker3: '-1'
marker4: '-1'
marker5: '-1'
marker6: '-1'
marker7: '-1'
marker8: '-1'
marker9: '-1'
name: Receiver Output
nconnections: '1'
size: '1024'
srate: samp_rate
stemplot: 'False'
style1: '1'
style10: '1'
style2: '1'
style3: '1'
style4: '1'
style5: '1'
style6: '1'
style7: '1'
style8: '1'
style9: '1'
tr_chan: '0'
tr_delay: '0'
tr_level: '0.0'
tr_mode: qtgui.TRIG_MODE_FREE
tr_slope: qtgui.TRIG_SLOPE_POS
tr_tag: '""'
type: float
update_time: '0.10'
width1: '1'
width10: '1'
width2: '1'
width3: '1'
width4: '1'
width5: '1'
width6: '1'
width7: '1'
width8: '1'
width9: '1'
ylabel: Amplitude
ymax: '1'
ymin: '-1'
yunit: '""'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [776, 672.0]
rotation: 0
state: enabled
- name: qtgui_time_sink_x_0_0_1
id: qtgui_time_sink_x
parameters:
affinity: ''
alias: ''
alpha1: '1.0'
alpha10: '1.0'
alpha2: '1.0'
alpha3: '1.0'
alpha4: '1.0'
alpha5: '1.0'
alpha6: '1.0'
alpha7: '1.0'
alpha8: '1.0'
alpha9: '1.0'
autoscale: 'True'
axislabels: 'True'
color1: blue
color10: dark blue
color2: red
color3: green
color4: black
color5: cyan
color6: magenta
color7: yellow
color8: dark red
color9: dark green
comment: ''
ctrlpanel: 'False'
entags: 'True'
grid: 'False'
gui_hint: ''
label1: ''
label10: ''
label2: ''
label3: ''
label4: ''
label5: ''
label6: ''
label7: ''
label8: ''
label9: ''
legend: 'True'
marker1: '-1'
marker10: '-1'
marker2: '-1'
marker3: '-1'
marker4: '-1'
marker5: '-1'
marker6: '-1'
marker7: '-1'
marker8: '-1'
marker9: '-1'
name: Transmitter Input
nconnections: '1'
size: '1024'
srate: samp_rate
stemplot: 'False'
style1: '1'
style10: '1'
style2: '1'
style3: '1'
style4: '1'
style5: '1'
style6: '1'
style7: '1'
style8: '1'
style9: '1'
tr_chan: '0'
tr_delay: '0'
tr_level: '0.0'
tr_mode: qtgui.TRIG_MODE_FREE
tr_slope: qtgui.TRIG_SLOPE_POS
tr_tag: '""'
type: float
update_time: '0.10'
width1: '1'
width10: '1'
width2: '1'
width3: '1'
width4: '1'
width5: '1'
width6: '1'
width7: '1'
width8: '1'
width9: '1'
ylabel: Amplitude
ymax: '1'
ymin: '-1'
yunit: '""'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1232, 280.0]
rotation: 0
state: enabled
connections:
- [blocks_complex_to_float_0_0, '0', qtgui_time_sink_x_0_0, '0']
- [blocks_complex_to_float_0_1, '0', qtgui_time_sink_x_0_0_1, '0']
- [blocks_file_source_0, '0', blocks_stream_to_tagged_stream_0, '0']
- [blocks_multiply_const_vxx_0_0, '0', blocks_complex_to_float_0_1, '0']
- [blocks_multiply_const_vxx_0_0, '0', osmosdr_sink_0, '0']
- [blocks_stream_to_tagged_stream_0, '0', digital_ofdm_tx_0, '0']
- [blocks_uchar_to_float_0, '0', qtgui_time_sink_x_0, '0']
- [blocks_vector_source_x_0, '0', blocks_stream_to_tagged_stream_0, '0']
- [digital_ofdm_rx_0, '0', blocks_file_sink_0, '0']
- [digital_ofdm_rx_0, '0', blocks_tag_debug_0, '0']
- [digital_ofdm_rx_0, '0', blocks_uchar_to_float_0, '0']
- [digital_ofdm_tx_0, '0', blocks_multiply_const_vxx_0_0, '0']
- [digital_ofdm_tx_0, '0', qtgui_freq_sink_x_0_0, '0']
- [osmosdr_source_0, '0', blocks_complex_to_float_0_0, '0']
- [osmosdr_source_0, '0', digital_ofdm_rx_0, '0']
- [osmosdr_source_0, '0', qtgui_freq_sink_x_0, '0']
metadata:
file_format: 1
grc_version: v3.11.0.0git-945-g22bc9e07
Your example is almost like my ofdm_loopback05.grc at
My example works, but I am getting an error -11 when I try to run yours. I have tried various changes to yours , but it will not run on Ubuntu 22.04 or MacOS. Your spectrums look good. The only obvious thing that is different - is with mine the receiver range is about (-1 to 1) rather then (-0.05 to 0.05) - crank it up may be that will help.
I finally got your version to work on Ubuntu 25.04. I changed the packet length to 50 (that is what it is set up for) and the device strings to just bladerf=0.
I got the receiver range to be between (-1 to 1) with my configuration, however still no packet reception. Also set packet_len to 50. Here’s what I’m seeing:

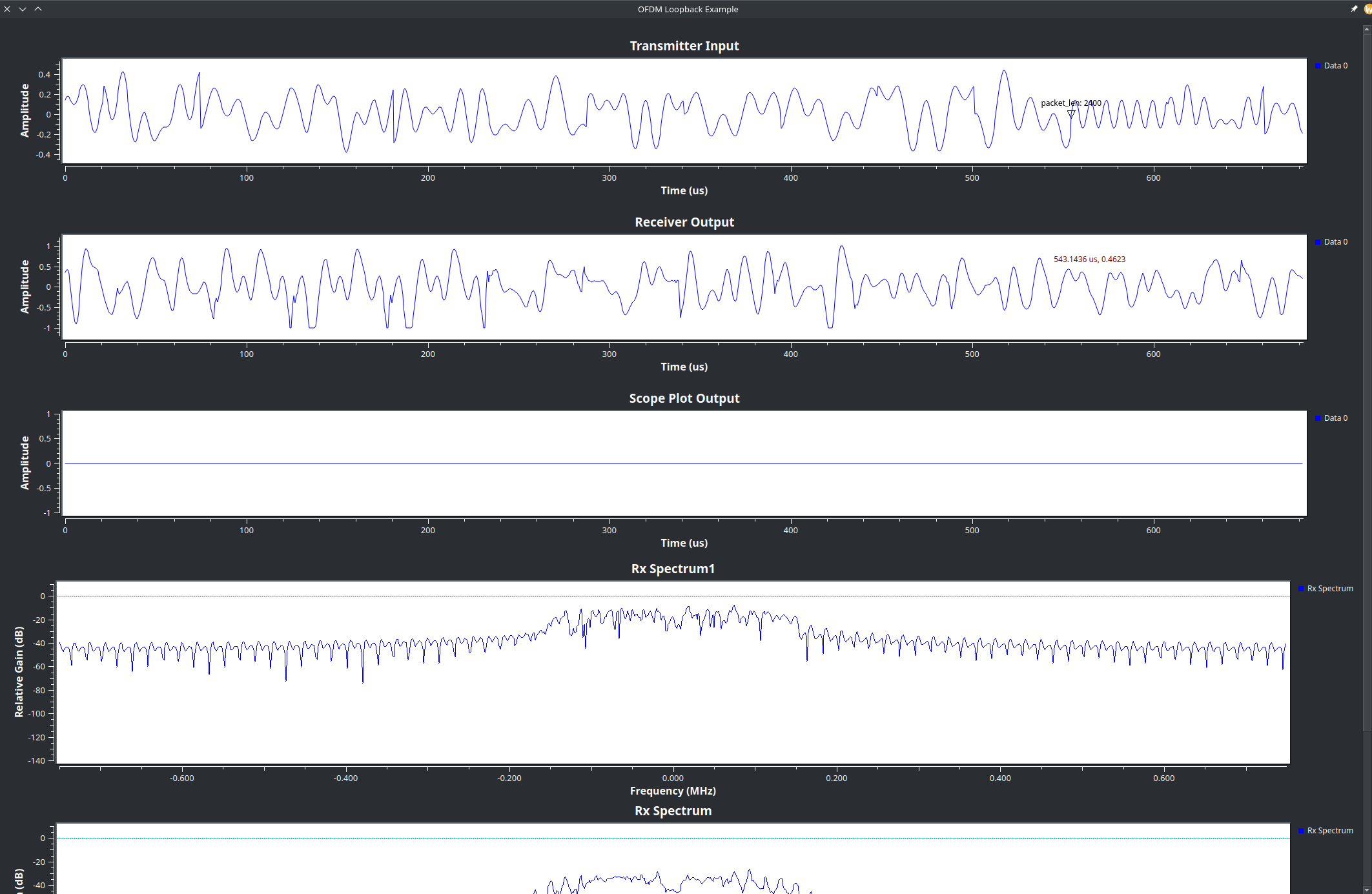

And grc for reference:
options:
parameters:
alias: ''
author: ''
catch_exceptions: 'True'
comment: ''
copyright: ''
description: Transmit a pre-defined signal (a complex sine) as OFDM packets.
gen_linking: dynamic
generate_options: qt_gui
generator_class_name: PythonQtGuiGenerator
generator_module: gnuradio.grc.workflows.python_qt_gui
hier_block_src_path: '.:'
id: ofdm_loopback_example
max_nouts: '0'
output_language: python
qt_qss_theme: ''
realtime_scheduling: ''
run: 'True'
run_command: '{python} -u {filename}'
thread_safe_setters: ''
title: OFDM Loopback Example
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [8, 12.0]
rotation: 0
state: enabled
blocks:
- name: fft_len
id: variable
parameters:
comment: ''
value: '64'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [408, 20.0]
rotation: 0
state: enabled
- name: freq_offset
id: variable_qtgui_range
parameters:
comment: ''
gui_hint: ''
label: Frequency Offset (Multiples of Sub-carrier spacing)
min_len: '200'
orient: QtCore.Qt.Horizontal
rangeType: float
start: '-3'
step: '.01'
stop: '3'
value: '0'
widget: counter_slider
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [936, 968.0]
rotation: 0
state: enabled
- name: frequency
id: variable
parameters:
comment: ''
value: 1240e6
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [768, 12.0]
rotation: 0
state: enabled
- name: len_tag_key
id: variable
parameters:
comment: ''
value: '"packet_len"'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [288, 20.0]
rotation: 0
state: enabled
- name: noise_voltage
id: variable_qtgui_range
parameters:
comment: ''
gui_hint: ''
label: Noise Amplitude
min_len: '200'
orient: QtCore.Qt.Horizontal
rangeType: float
start: '0'
step: '.01'
stop: '1'
value: '0.1'
widget: counter_slider
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1176, 968.0]
rotation: 0
state: enabled
- name: packet_len
id: variable
parameters:
comment: ''
value: '50'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [200, 20.0]
rotation: 0
state: enabled
- name: rf_rate
id: variable
parameters:
comment: ''
value: '1500000'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [640, 20.0]
rotation: 0
state: enabled
- name: samp_rate
id: variable
parameters:
comment: ''
value: '1500000'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [504, 12.0]
rotation: 0
state: enabled
- name: blocks_complex_to_float_0_0
id: blocks_complex_to_float
parameters:
affinity: ''
alias: ''
comment: ''
maxoutbuf: '0'
minoutbuf: '0'
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [464, 584.0]
rotation: 0
state: enabled
- name: blocks_complex_to_float_0_1
id: blocks_complex_to_float
parameters:
affinity: ''
alias: ''
comment: ''
maxoutbuf: '0'
minoutbuf: '0'
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1024, 280.0]
rotation: 0
state: enabled
- name: blocks_file_sink_0
id: blocks_file_sink
parameters:
affinity: ''
alias: ''
append: 'False'
comment: ''
file: /home/arhum/Documents/receiveFile.txt
type: byte
unbuffered: 'True'
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [776, 1040.0]
rotation: 0
state: enabled
- name: blocks_file_source_0
id: blocks_file_source
parameters:
affinity: ''
alias: ''
begin_tag: pmt.PMT_NIL
comment: ''
file: /home/arhum/Documents/modem/irisinterface.py
length: '0'
maxoutbuf: '0'
minoutbuf: '0'
offset: '0'
repeat: 'True'
type: byte
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [144, 296.0]
rotation: 0
state: enabled
- name: blocks_multiply_const_vxx_0_0
id: blocks_multiply_const_vxx
parameters:
affinity: ''
alias: ''
comment: ''
const: '0.05'
maxoutbuf: '0'
minoutbuf: '0'
type: complex
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [896, 120.0]
rotation: 0
state: enabled
- name: blocks_stream_to_tagged_stream_0
id: blocks_stream_to_tagged_stream
parameters:
affinity: ''
alias: ''
comment: ''
len_tag_key: len_tag_key
maxoutbuf: '0'
minoutbuf: '0'
packet_len: packet_len
type: byte
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [376, 192.0]
rotation: 0
state: enabled
- name: blocks_tag_debug_0
id: blocks_tag_debug
parameters:
affinity: ''
alias: ''
comment: ''
display: 'True'
filter: '""'
name: Rx Packets
num_inputs: '1'
type: byte
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [808, 928.0]
rotation: 0
state: enabled
- name: blocks_uchar_to_float_0
id: blocks_uchar_to_float
parameters:
affinity: ''
alias: ''
comment: ''
maxoutbuf: '0'
minoutbuf: '0'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [928, 856.0]
rotation: 0
state: enabled
- name: blocks_vector_source_x_0
id: blocks_vector_source_x
parameters:
affinity: ''
alias: ''
comment: ''
maxoutbuf: '0'
minoutbuf: '0'
repeat: 'True'
tags: ()
type: byte
vector: range(packet_len)
vlen: '1'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [208, 152.0]
rotation: 0
state: disabled
- name: digital_ofdm_rx_0
id: digital_ofdm_rx
parameters:
affinity: ''
alias: ''
comment: ''
cp_len: fft_len//4
fft_len: fft_len
header_mod: '"BPSK"'
log: 'False'
maxoutbuf: '0'
minoutbuf: '0'
occupied_carriers: ((-4,-3,-2,-1,1,2,3,4),)
packet_len_key: '"rx_len"'
payload_mod: '"QPSK"'
pilot_carriers: ((-6,-5,5,6),)
pilot_symbols: ((-1,1,-1,1),)
scramble_bits: 'False'
sync_word1: None
sync_word2: None
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [544, 756.0]
rotation: 0
state: enabled
- name: digital_ofdm_tx_0
id: digital_ofdm_tx
parameters:
affinity: ''
alias: ''
comment: ''
cp_len: fft_len//4
fft_len: fft_len
header_mod: '"BPSK"'
log: 'False'
maxoutbuf: '0'
minoutbuf: '0'
occupied_carriers: ((-4,-3,-2,-1,1,2,3,4),)
packet_len_key: len_tag_key
payload_mod: '"QPSK"'
pilot_carriers: ((-6,-5,5,6),)
pilot_symbols: ((-1,1,-1,1),)
rolloff: '0'
scramble_bits: 'False'
sync_word1: None
sync_word2: None
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [632, 140.0]
rotation: 0
state: enabled
- name: osmosdr_sink_0
id: osmosdr_sink
parameters:
affinity: ''
alias: ''
ant0: ''
ant1: ''
ant10: ''
ant11: ''
ant12: ''
ant13: ''
ant14: ''
ant15: ''
ant16: ''
ant17: ''
ant18: ''
ant19: ''
ant2: ''
ant20: ''
ant21: ''
ant22: ''
ant23: ''
ant24: ''
ant25: ''
ant26: ''
ant27: ''
ant28: ''
ant29: ''
ant3: ''
ant30: ''
ant31: ''
ant4: ''
ant5: ''
ant6: ''
ant7: ''
ant8: ''
ant9: ''
args: bladerf=1c2d4a5226594cfbbab03de10dbe4ee7,biastee=1
bb_gain0: '0'
bb_gain1: '20'
bb_gain10: '20'
bb_gain11: '20'
bb_gain12: '20'
bb_gain13: '20'
bb_gain14: '20'
bb_gain15: '20'
bb_gain16: '20'
bb_gain17: '20'
bb_gain18: '20'
bb_gain19: '20'
bb_gain2: '20'
bb_gain20: '20'
bb_gain21: '20'
bb_gain22: '20'
bb_gain23: '20'
bb_gain24: '20'
bb_gain25: '20'
bb_gain26: '20'
bb_gain27: '20'
bb_gain28: '20'
bb_gain29: '20'
bb_gain3: '20'
bb_gain30: '20'
bb_gain31: '20'
bb_gain4: '20'
bb_gain5: '20'
bb_gain6: '20'
bb_gain7: '20'
bb_gain8: '20'
bb_gain9: '20'
bw0: 1.5e6
bw1: '0'
bw10: '0'
bw11: '0'
bw12: '0'
bw13: '0'
bw14: '0'
bw15: '0'
bw16: '0'
bw17: '0'
bw18: '0'
bw19: '0'
bw2: '0'
bw20: '0'
bw21: '0'
bw22: '0'
bw23: '0'
bw24: '0'
bw25: '0'
bw26: '0'
bw27: '0'
bw28: '0'
bw29: '0'
bw3: '0'
bw30: '0'
bw31: '0'
bw4: '0'
bw5: '0'
bw6: '0'
bw7: '0'
bw8: '0'
bw9: '0'
clock_source0: ''
clock_source1: ''
clock_source2: ''
clock_source3: ''
clock_source4: ''
clock_source5: ''
clock_source6: ''
clock_source7: ''
comment: ''
corr0: '0'
corr1: '0'
corr10: '0'
corr11: '0'
corr12: '0'
corr13: '0'
corr14: '0'
corr15: '0'
corr16: '0'
corr17: '0'
corr18: '0'
corr19: '0'
corr2: '0'
corr20: '0'
corr21: '0'
corr22: '0'
corr23: '0'
corr24: '0'
corr25: '0'
corr26: '0'
corr27: '0'
corr28: '0'
corr29: '0'
corr3: '0'
corr30: '0'
corr31: '0'
corr4: '0'
corr5: '0'
corr6: '0'
corr7: '0'
corr8: '0'
corr9: '0'
freq0: frequency
freq1: 100e6
freq10: 100e6
freq11: 100e6
freq12: 100e6
freq13: 100e6
freq14: 100e6
freq15: 100e6
freq16: 100e6
freq17: 100e6
freq18: 100e6
freq19: 100e6
freq2: 100e6
freq20: 100e6
freq21: 100e6
freq22: 100e6
freq23: 100e6
freq24: 100e6
freq25: 100e6
freq26: 100e6
freq27: 100e6
freq28: 100e6
freq29: 100e6
freq3: 100e6
freq30: 100e6
freq31: 100e6
freq4: 100e6
freq5: 100e6
freq6: 100e6
freq7: 100e6
freq8: 100e6
freq9: 100e6
gain0: '49'
gain1: '10'
gain10: '10'
gain11: '10'
gain12: '10'
gain13: '10'
gain14: '10'
gain15: '10'
gain16: '10'
gain17: '10'
gain18: '10'
gain19: '10'
gain2: '10'
gain20: '10'
gain21: '10'
gain22: '10'
gain23: '10'
gain24: '10'
gain25: '10'
gain26: '10'
gain27: '10'
gain28: '10'
gain29: '10'
gain3: '10'
gain30: '10'
gain31: '10'
gain4: '10'
gain5: '10'
gain6: '10'
gain7: '10'
gain8: '10'
gain9: '10'
if_gain0: '0'
if_gain1: '20'
if_gain10: '20'
if_gain11: '20'
if_gain12: '20'
if_gain13: '20'
if_gain14: '20'
if_gain15: '20'
if_gain16: '20'
if_gain17: '20'
if_gain18: '20'
if_gain19: '20'
if_gain2: '20'
if_gain20: '20'
if_gain21: '20'
if_gain22: '20'
if_gain23: '20'
if_gain24: '20'
if_gain25: '20'
if_gain26: '20'
if_gain27: '20'
if_gain28: '20'
if_gain29: '20'
if_gain3: '20'
if_gain30: '20'
if_gain31: '20'
if_gain4: '20'
if_gain5: '20'
if_gain6: '20'
if_gain7: '20'
if_gain8: '20'
if_gain9: '20'
maxoutbuf: '0'
minoutbuf: '0'
nchan: '1'
num_mboards: '1'
sample_rate: rf_rate
sync: sync
time_source0: ''
time_source1: ''
time_source2: ''
time_source3: ''
time_source4: ''
time_source5: ''
time_source6: ''
time_source7: ''
type: fc32
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1152, 52.0]
rotation: 0
state: enabled
- name: osmosdr_source_0
id: osmosdr_source
parameters:
affinity: ''
alias: ''
ant0: ''
ant1: ''
ant10: ''
ant11: ''
ant12: ''
ant13: ''
ant14: ''
ant15: ''
ant16: ''
ant17: ''
ant18: ''
ant19: ''
ant2: ''
ant20: ''
ant21: ''
ant22: ''
ant23: ''
ant24: ''
ant25: ''
ant26: ''
ant27: ''
ant28: ''
ant29: ''
ant3: ''
ant30: ''
ant31: ''
ant4: ''
ant5: ''
ant6: ''
ant7: ''
ant8: ''
ant9: ''
args: bladerf=482d627847294c33baa62cce38a56831
bb_gain0: '20'
bb_gain1: '20'
bb_gain10: '20'
bb_gain11: '20'
bb_gain12: '20'
bb_gain13: '20'
bb_gain14: '20'
bb_gain15: '20'
bb_gain16: '20'
bb_gain17: '20'
bb_gain18: '20'
bb_gain19: '20'
bb_gain2: '20'
bb_gain20: '20'
bb_gain21: '20'
bb_gain22: '20'
bb_gain23: '20'
bb_gain24: '20'
bb_gain25: '20'
bb_gain26: '20'
bb_gain27: '20'
bb_gain28: '20'
bb_gain29: '20'
bb_gain3: '20'
bb_gain30: '20'
bb_gain31: '20'
bb_gain4: '20'
bb_gain5: '20'
bb_gain6: '20'
bb_gain7: '20'
bb_gain8: '20'
bb_gain9: '20'
bw0: 1.5e6
bw1: '0'
bw10: '0'
bw11: '0'
bw12: '0'
bw13: '0'
bw14: '0'
bw15: '0'
bw16: '0'
bw17: '0'
bw18: '0'
bw19: '0'
bw2: '0'
bw20: '0'
bw21: '0'
bw22: '0'
bw23: '0'
bw24: '0'
bw25: '0'
bw26: '0'
bw27: '0'
bw28: '0'
bw29: '0'
bw3: '0'
bw30: '0'
bw31: '0'
bw4: '0'
bw5: '0'
bw6: '0'
bw7: '0'
bw8: '0'
bw9: '0'
clock_source0: ''
clock_source1: ''
clock_source2: ''
clock_source3: ''
clock_source4: ''
clock_source5: ''
clock_source6: ''
clock_source7: ''
comment: ''
corr0: '0'
corr1: '0'
corr10: '0'
corr11: '0'
corr12: '0'
corr13: '0'
corr14: '0'
corr15: '0'
corr16: '0'
corr17: '0'
corr18: '0'
corr19: '0'
corr2: '0'
corr20: '0'
corr21: '0'
corr22: '0'
corr23: '0'
corr24: '0'
corr25: '0'
corr26: '0'
corr27: '0'
corr28: '0'
corr29: '0'
corr3: '0'
corr30: '0'
corr31: '0'
corr4: '0'
corr5: '0'
corr6: '0'
corr7: '0'
corr8: '0'
corr9: '0'
dc_offset_mode0: '0'
dc_offset_mode1: '0'
dc_offset_mode10: '0'
dc_offset_mode11: '0'
dc_offset_mode12: '0'
dc_offset_mode13: '0'
dc_offset_mode14: '0'
dc_offset_mode15: '0'
dc_offset_mode16: '0'
dc_offset_mode17: '0'
dc_offset_mode18: '0'
dc_offset_mode19: '0'
dc_offset_mode2: '0'
dc_offset_mode20: '0'
dc_offset_mode21: '0'
dc_offset_mode22: '0'
dc_offset_mode23: '0'
dc_offset_mode24: '0'
dc_offset_mode25: '0'
dc_offset_mode26: '0'
dc_offset_mode27: '0'
dc_offset_mode28: '0'
dc_offset_mode29: '0'
dc_offset_mode3: '0'
dc_offset_mode30: '0'
dc_offset_mode31: '0'
dc_offset_mode4: '0'
dc_offset_mode5: '0'
dc_offset_mode6: '0'
dc_offset_mode7: '0'
dc_offset_mode8: '0'
dc_offset_mode9: '0'
freq0: frequency
freq1: 100e6
freq10: 100e6
freq11: 100e6
freq12: 100e6
freq13: 100e6
freq14: 100e6
freq15: 100e6
freq16: 100e6
freq17: 100e6
freq18: 100e6
freq19: 100e6
freq2: 100e6
freq20: 100e6
freq21: 100e6
freq22: 100e6
freq23: 100e6
freq24: 100e6
freq25: 100e6
freq26: 100e6
freq27: 100e6
freq28: 100e6
freq29: 100e6
freq3: 100e6
freq30: 100e6
freq31: 100e6
freq4: 100e6
freq5: 100e6
freq6: 100e6
freq7: 100e6
freq8: 100e6
freq9: 100e6
gain0: '24'
gain1: '10'
gain10: '10'
gain11: '10'
gain12: '10'
gain13: '10'
gain14: '10'
gain15: '10'
gain16: '10'
gain17: '10'
gain18: '10'
gain19: '10'
gain2: '10'
gain20: '10'
gain21: '10'
gain22: '10'
gain23: '10'
gain24: '10'
gain25: '10'
gain26: '10'
gain27: '10'
gain28: '10'
gain29: '10'
gain3: '10'
gain30: '10'
gain31: '10'
gain4: '10'
gain5: '10'
gain6: '10'
gain7: '10'
gain8: '10'
gain9: '10'
gain_mode0: 'False'
gain_mode1: 'False'
gain_mode10: 'False'
gain_mode11: 'False'
gain_mode12: 'False'
gain_mode13: 'False'
gain_mode14: 'False'
gain_mode15: 'False'
gain_mode16: 'False'
gain_mode17: 'False'
gain_mode18: 'False'
gain_mode19: 'False'
gain_mode2: 'False'
gain_mode20: 'False'
gain_mode21: 'False'
gain_mode22: 'False'
gain_mode23: 'False'
gain_mode24: 'False'
gain_mode25: 'False'
gain_mode26: 'False'
gain_mode27: 'False'
gain_mode28: 'False'
gain_mode29: 'False'
gain_mode3: 'False'
gain_mode30: 'False'
gain_mode31: 'False'
gain_mode4: 'False'
gain_mode5: 'False'
gain_mode6: 'False'
gain_mode7: 'False'
gain_mode8: 'False'
gain_mode9: 'False'
if_gain0: '0'
if_gain1: '20'
if_gain10: '20'
if_gain11: '20'
if_gain12: '20'
if_gain13: '20'
if_gain14: '20'
if_gain15: '20'
if_gain16: '20'
if_gain17: '20'
if_gain18: '20'
if_gain19: '20'
if_gain2: '20'
if_gain20: '20'
if_gain21: '20'
if_gain22: '20'
if_gain23: '20'
if_gain24: '20'
if_gain25: '20'
if_gain26: '20'
if_gain27: '20'
if_gain28: '20'
if_gain29: '20'
if_gain3: '20'
if_gain30: '20'
if_gain31: '20'
if_gain4: '20'
if_gain5: '20'
if_gain6: '20'
if_gain7: '20'
if_gain8: '20'
if_gain9: '20'
iq_balance_mode0: '0'
iq_balance_mode1: '0'
iq_balance_mode10: '0'
iq_balance_mode11: '0'
iq_balance_mode12: '0'
iq_balance_mode13: '0'
iq_balance_mode14: '0'
iq_balance_mode15: '0'
iq_balance_mode16: '0'
iq_balance_mode17: '0'
iq_balance_mode18: '0'
iq_balance_mode19: '0'
iq_balance_mode2: '0'
iq_balance_mode20: '0'
iq_balance_mode21: '0'
iq_balance_mode22: '0'
iq_balance_mode23: '0'
iq_balance_mode24: '0'
iq_balance_mode25: '0'
iq_balance_mode26: '0'
iq_balance_mode27: '0'
iq_balance_mode28: '0'
iq_balance_mode29: '0'
iq_balance_mode3: '0'
iq_balance_mode30: '0'
iq_balance_mode31: '0'
iq_balance_mode4: '0'
iq_balance_mode5: '0'
iq_balance_mode6: '0'
iq_balance_mode7: '0'
iq_balance_mode8: '0'
iq_balance_mode9: '0'
maxoutbuf: '0'
minoutbuf: '0'
nchan: '1'
num_mboards: '1'
sample_rate: rf_rate
sync: sync
time_source0: ''
time_source1: ''
time_source2: ''
time_source3: ''
time_source4: ''
time_source5: ''
time_source6: ''
time_source7: ''
type: fc32
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [200, 604.0]
rotation: 0
state: enabled
- name: qtgui_freq_sink_x_0
id: qtgui_freq_sink_x
parameters:
affinity: ''
alias: ''
alpha1: '1.0'
alpha10: '1.0'
alpha2: '1.0'
alpha3: '1.0'
alpha4: '1.0'
alpha5: '1.0'
alpha6: '1.0'
alpha7: '1.0'
alpha8: '1.0'
alpha9: '1.0'
autoscale: 'False'
average: '0.2'
axislabels: 'True'
bw: 1.5e6
color1: '"blue"'
color10: '"dark blue"'
color2: '"red"'
color3: '"green"'
color4: '"black"'
color5: '"cyan"'
color6: '"magenta"'
color7: '"yellow"'
color8: '"dark red"'
color9: '"dark green"'
comment: ''
ctrlpanel: 'False'
fc: '0'
fftsize: '1024'
freqhalf: 'True'
grid: 'False'
gui_hint: ''
label: Relative Gain
label1: Rx Spectrum
label10: ''
label2: ''
label3: ''
label4: ''
label5: ''
label6: ''
label7: ''
label8: ''
label9: ''
legend: 'True'
maxoutbuf: '0'
minoutbuf: '0'
name: Rx Spectrum
nconnections: '1'
norm_window: 'False'
showports: 'True'
tr_chan: '0'
tr_level: '0.0'
tr_mode: qtgui.TRIG_MODE_FREE
tr_tag: '""'
type: complex
units: dB
update_time: '0.10'
width1: '1'
width10: '1'
width2: '1'
width3: '1'
width4: '1'
width5: '1'
width6: '1'
width7: '1'
width8: '1'
width9: '1'
wintype: window.WIN_BLACKMAN_hARRIS
ymax: '10'
ymin: '-140'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [456, 1000.0]
rotation: 0
state: enabled
- name: qtgui_freq_sink_x_0_0
id: qtgui_freq_sink_x
parameters:
affinity: ''
alias: ''
alpha1: '1.0'
alpha10: '1.0'
alpha2: '1.0'
alpha3: '1.0'
alpha4: '1.0'
alpha5: '1.0'
alpha6: '1.0'
alpha7: '1.0'
alpha8: '1.0'
alpha9: '1.0'
autoscale: 'False'
average: '1.0'
axislabels: 'True'
bw: samp_rate
color1: '"blue"'
color10: '"dark blue"'
color2: '"red"'
color3: '"green"'
color4: '"black"'
color5: '"cyan"'
color6: '"magenta"'
color7: '"yellow"'
color8: '"dark red"'
color9: '"dark green"'
comment: ''
ctrlpanel: 'False'
fc: '0'
fftsize: '1024'
freqhalf: 'True'
grid: 'False'
gui_hint: ''
label: Relative Gain
label1: Rx Spectrum
label10: ''
label2: ''
label3: ''
label4: ''
label5: ''
label6: ''
label7: ''
label8: ''
label9: ''
legend: 'True'
maxoutbuf: '0'
minoutbuf: '0'
name: Rx Spectrum1
nconnections: '1'
norm_window: 'False'
showports: 'True'
tr_chan: '0'
tr_level: '0.0'
tr_mode: qtgui.TRIG_MODE_FREE
tr_tag: '""'
type: complex
units: dB
update_time: '0.10'
width1: '1'
width10: '1'
width2: '1'
width3: '1'
width4: '1'
width5: '1'
width6: '1'
width7: '1'
width8: '1'
width9: '1'
wintype: window.WIN_BLACKMAN_hARRIS
ymax: '10'
ymin: '-140'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1008, 376.0]
rotation: 0
state: enabled
- name: qtgui_time_sink_x_0
id: qtgui_time_sink_x
parameters:
affinity: ''
alias: ''
alpha1: '1.0'
alpha10: '1.0'
alpha2: '1.0'
alpha3: '1.0'
alpha4: '1.0'
alpha5: '1.0'
alpha6: '1.0'
alpha7: '1.0'
alpha8: '1.0'
alpha9: '1.0'
autoscale: 'True'
axislabels: 'True'
color1: blue
color10: dark blue
color2: red
color3: green
color4: black
color5: cyan
color6: magenta
color7: yellow
color8: dark red
color9: dark green
comment: ''
ctrlpanel: 'False'
entags: 'True'
grid: 'False'
gui_hint: ''
label1: ''
label10: ''
label2: ''
label3: ''
label4: ''
label5: ''
label6: ''
label7: ''
label8: ''
label9: ''
legend: 'True'
marker1: '-1'
marker10: '-1'
marker2: '-1'
marker3: '-1'
marker4: '-1'
marker5: '-1'
marker6: '-1'
marker7: '-1'
marker8: '-1'
marker9: '-1'
name: Scope Plot Output
nconnections: '1'
size: '1024'
srate: samp_rate
stemplot: 'False'
style1: '1'
style10: '1'
style2: '1'
style3: '1'
style4: '1'
style5: '1'
style6: '1'
style7: '1'
style8: '1'
style9: '1'
tr_chan: '0'
tr_delay: '0'
tr_level: '0.0'
tr_mode: qtgui.TRIG_MODE_FREE
tr_slope: qtgui.TRIG_SLOPE_POS
tr_tag: '""'
type: float
update_time: '0.10'
width1: '1'
width10: '1'
width2: '1'
width3: '1'
width4: '1'
width5: '1'
width6: '1'
width7: '1'
width8: '1'
width9: '1'
ylabel: Amplitude
ymax: '1'
ymin: '-1'
yunit: '""'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1128, 856.0]
rotation: 0
state: enabled
- name: qtgui_time_sink_x_0_0
id: qtgui_time_sink_x
parameters:
affinity: ''
alias: ''
alpha1: '1.0'
alpha10: '1.0'
alpha2: '1.0'
alpha3: '1.0'
alpha4: '1.0'
alpha5: '1.0'
alpha6: '1.0'
alpha7: '1.0'
alpha8: '1.0'
alpha9: '1.0'
autoscale: 'True'
axislabels: 'True'
color1: blue
color10: dark blue
color2: red
color3: green
color4: black
color5: cyan
color6: magenta
color7: yellow
color8: dark red
color9: dark green
comment: ''
ctrlpanel: 'False'
entags: 'True'
grid: 'False'
gui_hint: ''
label1: ''
label10: ''
label2: ''
label3: ''
label4: ''
label5: ''
label6: ''
label7: ''
label8: ''
label9: ''
legend: 'True'
marker1: '-1'
marker10: '-1'
marker2: '-1'
marker3: '-1'
marker4: '-1'
marker5: '-1'
marker6: '-1'
marker7: '-1'
marker8: '-1'
marker9: '-1'
name: Receiver Output
nconnections: '1'
size: '1024'
srate: samp_rate
stemplot: 'False'
style1: '1'
style10: '1'
style2: '1'
style3: '1'
style4: '1'
style5: '1'
style6: '1'
style7: '1'
style8: '1'
style9: '1'
tr_chan: '0'
tr_delay: '0'
tr_level: '0.0'
tr_mode: qtgui.TRIG_MODE_FREE
tr_slope: qtgui.TRIG_SLOPE_POS
tr_tag: '""'
type: float
update_time: '0.10'
width1: '1'
width10: '1'
width2: '1'
width3: '1'
width4: '1'
width5: '1'
width6: '1'
width7: '1'
width8: '1'
width9: '1'
ylabel: Amplitude
ymax: '1'
ymin: '-1'
yunit: '""'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [776, 672.0]
rotation: 0
state: enabled
- name: qtgui_time_sink_x_0_0_1
id: qtgui_time_sink_x
parameters:
affinity: ''
alias: ''
alpha1: '1.0'
alpha10: '1.0'
alpha2: '1.0'
alpha3: '1.0'
alpha4: '1.0'
alpha5: '1.0'
alpha6: '1.0'
alpha7: '1.0'
alpha8: '1.0'
alpha9: '1.0'
autoscale: 'True'
axislabels: 'True'
color1: blue
color10: dark blue
color2: red
color3: green
color4: black
color5: cyan
color6: magenta
color7: yellow
color8: dark red
color9: dark green
comment: ''
ctrlpanel: 'False'
entags: 'True'
grid: 'False'
gui_hint: ''
label1: ''
label10: ''
label2: ''
label3: ''
label4: ''
label5: ''
label6: ''
label7: ''
label8: ''
label9: ''
legend: 'True'
marker1: '-1'
marker10: '-1'
marker2: '-1'
marker3: '-1'
marker4: '-1'
marker5: '-1'
marker6: '-1'
marker7: '-1'
marker8: '-1'
marker9: '-1'
name: Transmitter Input
nconnections: '1'
size: '1024'
srate: samp_rate
stemplot: 'False'
style1: '1'
style10: '1'
style2: '1'
style3: '1'
style4: '1'
style5: '1'
style6: '1'
style7: '1'
style8: '1'
style9: '1'
tr_chan: '0'
tr_delay: '0'
tr_level: '0.0'
tr_mode: qtgui.TRIG_MODE_FREE
tr_slope: qtgui.TRIG_SLOPE_POS
tr_tag: '""'
type: float
update_time: '0.10'
width1: '1'
width10: '1'
width2: '1'
width3: '1'
width4: '1'
width5: '1'
width6: '1'
width7: '1'
width8: '1'
width9: '1'
ylabel: Amplitude
ymax: '1'
ymin: '-1'
yunit: '""'
states:
bus_sink: false
bus_source: false
bus_structure: null
coordinate: [1232, 280.0]
rotation: 0
state: enabled
connections:
- [blocks_complex_to_float_0_0, '0', qtgui_time_sink_x_0_0, '0']
- [blocks_complex_to_float_0_1, '0', qtgui_time_sink_x_0_0_1, '0']
- [blocks_file_source_0, '0', blocks_stream_to_tagged_stream_0, '0']
- [blocks_multiply_const_vxx_0_0, '0', blocks_complex_to_float_0_1, '0']
- [blocks_multiply_const_vxx_0_0, '0', osmosdr_sink_0, '0']
- [blocks_stream_to_tagged_stream_0, '0', digital_ofdm_tx_0, '0']
- [blocks_uchar_to_float_0, '0', qtgui_time_sink_x_0, '0']
- [blocks_vector_source_x_0, '0', blocks_stream_to_tagged_stream_0, '0']
- [digital_ofdm_rx_0, '0', blocks_file_sink_0, '0']
- [digital_ofdm_rx_0, '0', blocks_tag_debug_0, '0']
- [digital_ofdm_rx_0, '0', blocks_uchar_to_float_0, '0']
- [digital_ofdm_tx_0, '0', blocks_multiply_const_vxx_0_0, '0']
- [digital_ofdm_tx_0, '0', qtgui_freq_sink_x_0_0, '0']
- [osmosdr_source_0, '0', blocks_complex_to_float_0_0, '0']
- [osmosdr_source_0, '0', digital_ofdm_rx_0, '0']
- [osmosdr_source_0, '0', qtgui_freq_sink_x_0, '0']
metadata:
file_format: 1
grc_version: v3.11.0.0git-945-g22bc9e07
Note my device strings refer to the serial numbers of the two bladeRFs connected to my PC.
As a side note, is it possible to contact you? I would love to reach out to you. I’ve seen your videos and forum posts here; you seem quite experienced with these devices. We are working on a very niche project that we would love to tell you more about. Here is my number: +1 4159187723 (Have Whatsapp). Also my email, arhum@notussystems.com. Please send me a text or email if you would be up for a short call for me to explain what me and my team are working on and to get your advice!
